Schwank STSp-WP User Manual
Page 15

SP-MSWP-BX-09A
STSp-WP Manual
RD: MAY 2004
RL: 9
KH
Page 11

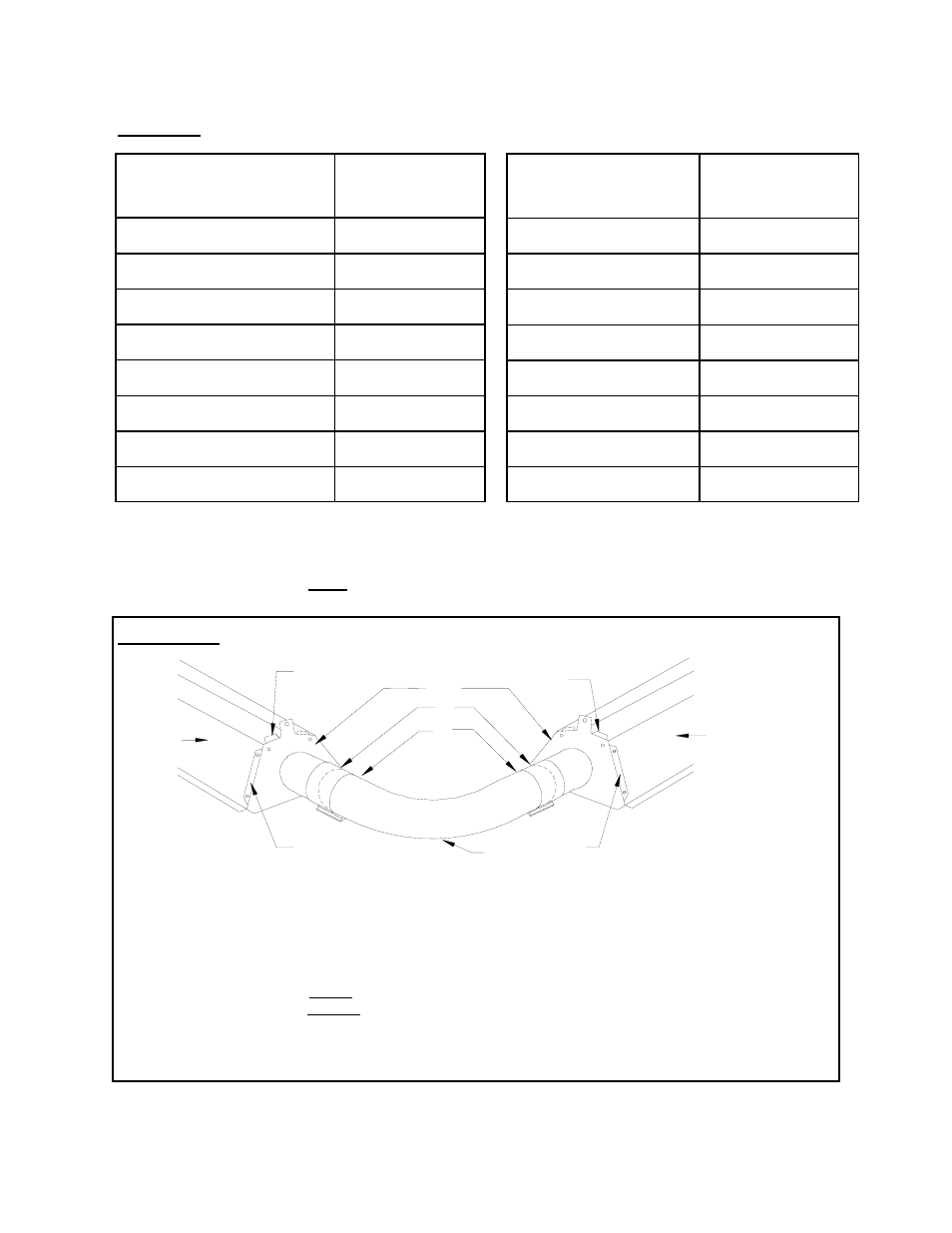

TABLE 4 TURBULATORS
MODEL
TURBULATOR
LENGTH
(IF REQUIRED)
STSp-200-70/60/50-WP
10’
STSp-175-70/60/50-WP
10’
STSp-155-60-WP
not required
STSp-155-50-WP
not required
STSp-155-40-WP
10'
STSp-130-50-WP
not required
STSp-130-40-WP
10'
STSp-130-30-WP
14'
MODEL
TURBULATOR
LENGTH
(IF REQUIRED)
STSp-110-40-WP
10'
STSp-110-30-WP
14'
STSp-80-40-WP
10’
STSp-80-30-WP
14'
STSp-80-20-WP
14'
STSp-60-30-WP
14’
STSp-60-20-WP
14'
STSp-110-50-WP
not required
NOTE: Where required, the STSp-WP Series Heaters will be supplied with turbulators, factory
installed into the END tube(s) of the system configuration and identified as such.
FIGURE 12 PLATE HANGER/ELBOW INSTALLATION
1
2
2
3
3
4
4
5
6
7
1
. End-Plate-Hangers 5. 90
0
(shown) or 180
0
Elbow
2. Focus Shield Reflectors 6. Tube/Elbow Coupler
3. End-Plate-Hanger Flange OVER Reflector elbow 7. Point at which Swaged tube fits into elbow
4. End Plate Hanger Flange UNDER Reflector and Swaged end of elbow fits into tube.
