Schwank bistroSchwank 2-Stage User Manual
Page 7

2100 / IO 100 Manual
IM110107
RD: MAY 2014
R.L. 4A
7
MODEL NO
Ends
HORIZONTAL
UP TO MAXIMUM 30° ANGLE
E
A
S
T
B
F
2135 / IO-135 -N\L
14”
13”
14”
17”
9”
60”
2150/ IO-150 -N\L
14”
16”
19”
20”
8”
62”
MH
108”
120”
MA
102”
114”
CH
133”
148”
CA
127”
142”
2152/ IO-152 -N\L
14”
16”
19”
120” 148” 20” 8” 62” 114” 142”
Table 1: OUTDOOR - MINIMUM MOUNTING & CLEARANCES TO COMBUSTIBLES
The clearance to combustible material represents the minimum distance that must be main-
tained between the outer heater surface and a nearby surface. In an OUTDOOR application
the stated clearance to combustibles represents a surface temperature of 117F° (65C°)
above ambient temperature.
It is the installer’s responsibility to ensure that building materials with a low heat tolerance
which may degrade at lower temperatures are protected to prevent degradation. Examples of
low heat tolerance materials include awnings, vinyl siding, fabrics, some plastics, filmy materi-
als, etc.

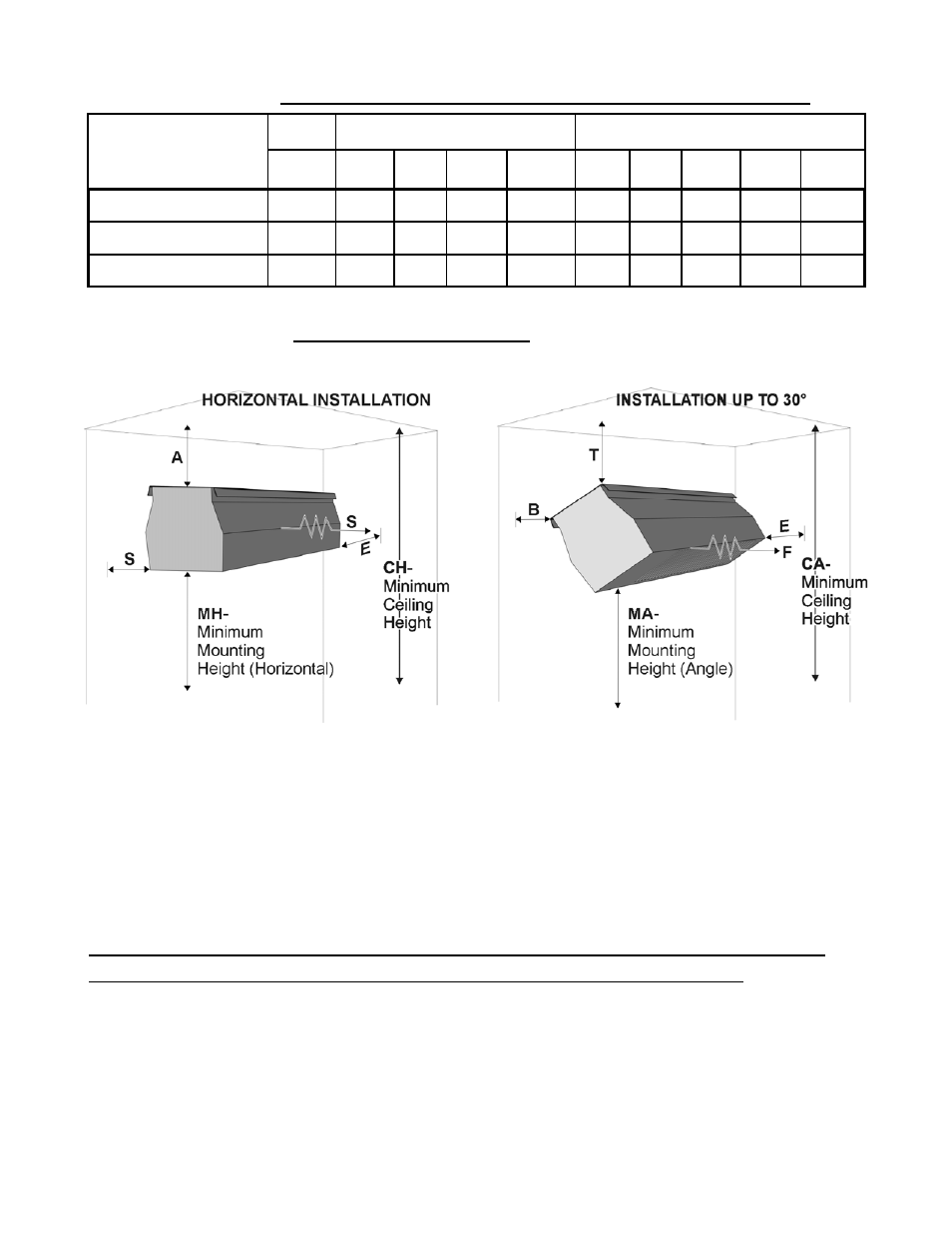

Figure 1: OUTDOOR - MOUNTING CLEARANCES
See Table 2 Next Page for “Suggested Mounting Height for Comfort”
NOTE: MOUNT HEATER AT MAXIMUM 30° ANGLE TO AVOID DAMAGE
