S100-F / ITB-F I&O Manual
IM101230
RD: SEP 2014
RL: 11A

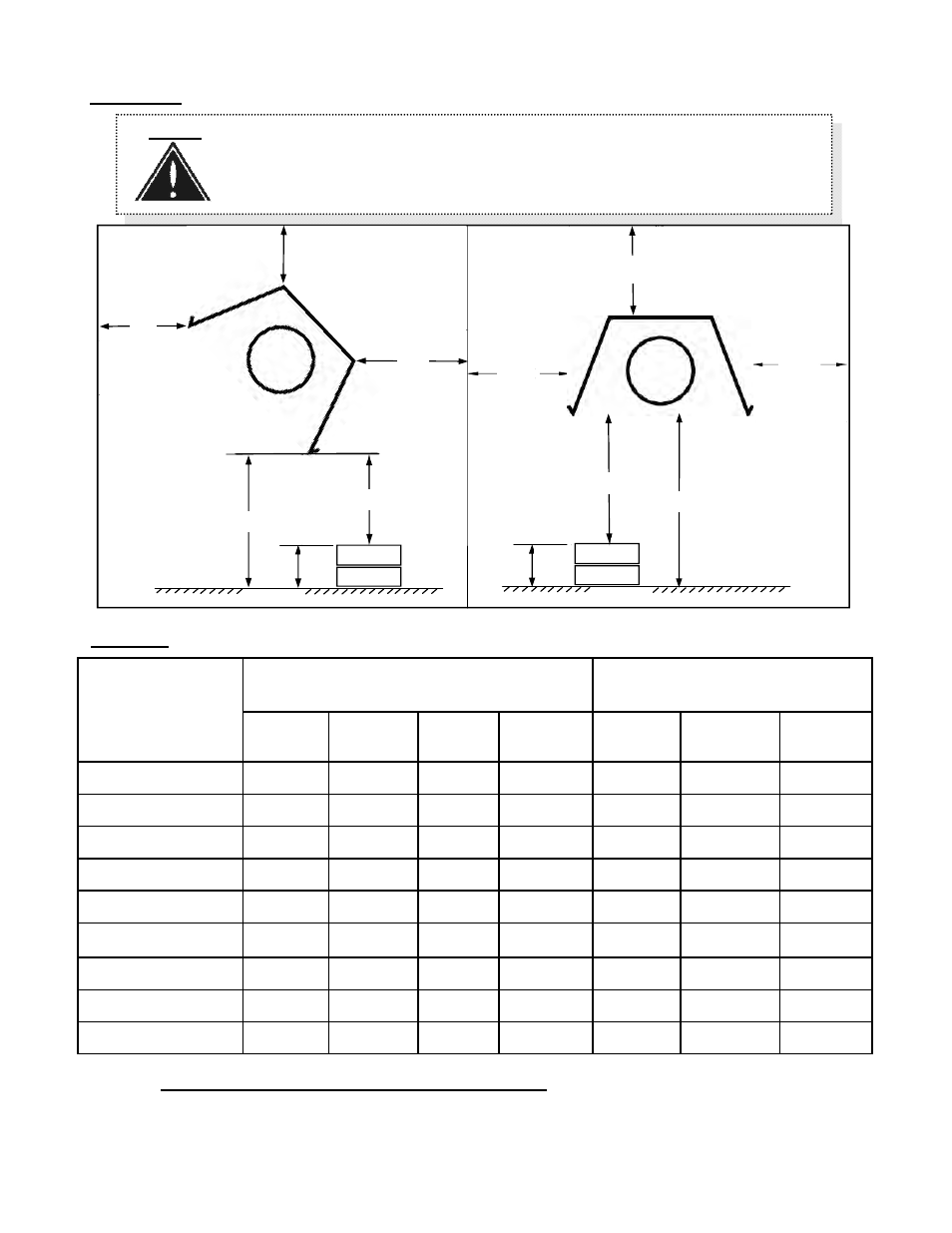

TABLE 1 MINIMUM CLEARANCES TO COMBUSTIBLES*
FIGURE 1 MINIMUM CLEARANCES TO COMBUSTIBLES* - refer to Table 1 for values
*NOTE: Clearances are measured from the reflector.
The clearance to combustible materials represents the minimum distance that must be main-
tained between the heater and a nearby surface. The stated clearance to combustibles
NOTE: A ‘PEEL & STICK’ SIGN IS SUPPLIED: USE AN INDELIBLE MARKER TO
ENTER VALUES ‘H’, ‘S’, ‘F’, & ‘B’ ON .
POST THE SIGN ADJACENT TO THE HEATER THERMOSTAT OR IN A
PROMINENT LOCATION.
See next page for details.
S
S
FLOOR
H
T
H
Maximum
Stack Height
H = T- C
‘T’ is meas-
ured on site,
‘C’ is in Table
FLOOR
MODEL
BOTH “STRAIGHT”
& “U-TUBE
SUSPENDED AT AN ANGLE
UP TO 45 DEGREES
SUSPENDED
HORIZONTALLY
D
inches (cm)
B
inches (cm)
F
inches (cm)
C
inches (cm)
A
inches (cm)
S
inches (cm)
C
inches (cm)
S100(U)/ITB(U) 200
13
(33) 6 (15.2) 74 (188)
70
(178)
14
(36)
44
(112)
76
(193)
S100(U)/ITB(U) 175
12
(31) 6 (15.2) 72 (183)
68
(172)
13
(33)
42
(107)
74
(188)
S100(U)/ITB(U) 155
10
(26) 4 (10)
50
(112)
64
(163)
11
(28)
34
(87)
70
(178)
S100(U)/ITB(U) 130
10
(23) 3 (8)
45
(114)
60
(152)
10
(26)
32
(81)
65
(165)
S100(U)/ITB(U) 110
9
(23) 3 (8)
36
(92)
54
(137)
9
(23)
30
(76)
60
(152)
S100(U)/ITB(U) 80
7
(18) 2 (5)
31
(79)
38
(97)
7
(18)
24
(61)
42
(107)
S100(U)/ITB(U) 60
7
(18) 2 (5)
25
(64)
34
(86)
7
(18)
20
(51)
34
(86)
S100(U)/ITB(U) 45
7
(18) 2 (5)
29
(74)
32
(81)
7
(18)
16
(41)
32
(81)
S100 /ITB 100
10
(26) 4 (10)
57
(145)
68
(172)
11
(28)
32
(81)
68
(172)
T
C
Maximum
Stack Height
H = T- C
‘T’ is meas-
ured on site,
‘C’ is in Table
B
F
D
Suspended at an
angle up to 45°
C
Suspended
horizontally
A
