48
S100-F / ITB-F I&O Manual
IM101230
RD: SEP 2014
RL: 11A
Tube
Length
‘L’ = center air intake to end
10’ 11’-3 3/4” ; 135 3/4” ; 345 cm
20’ 20’-11 3/4” ; 251 3/4” ; 628 cm
30’ 30’-7 3/4” ; 367 3/4” ; 934 cm
40’ 40’-3 3/4” ; 483 3/4” ; 1229 cm
Tube
Length
‘L’ = center air intake to end
50’ 49’-11 3/4” ; 599 3/4” ; 1523 cm
60’ 59’-7 3/4” ; 715 3/4” ; 1818 cm
70’ 69’-3 3/4” ; 831 3/4” ; 2113 cm

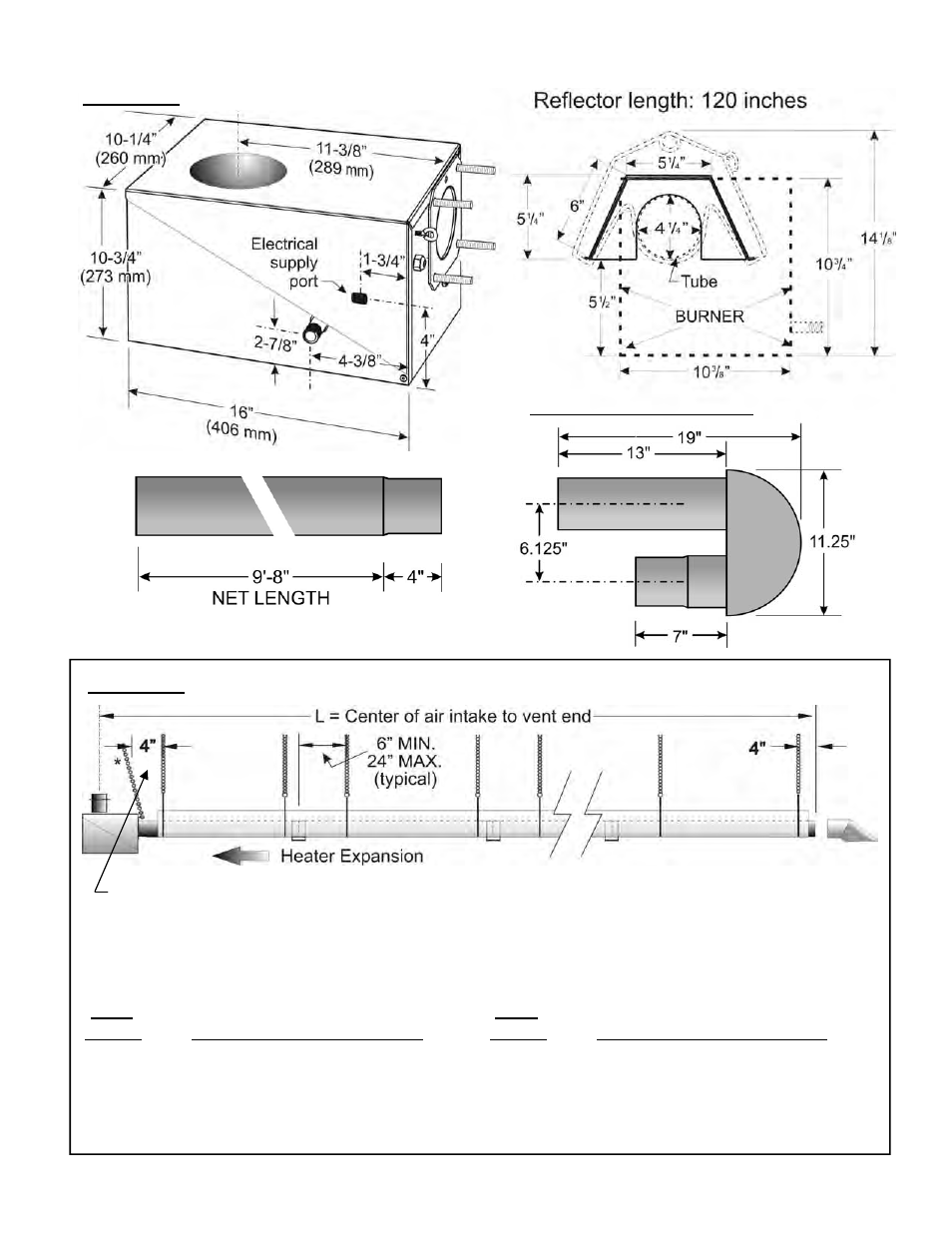

FIGURE 25 HANGER SPACING / LENGTH - AIR INTAKE TO VENT END - STRAIGHT
 POSITION BURNER END HANGER 4 INCHES (10 CM) FROM BURNER

LOCATE SYSTEM HANGERS NO LESS THAN 6 INCHES (15 CM) AND NO MORE THAN 24
INCHES (61 CM) FROM TUBE COUPLING
* ANGLE BURNER SUPPORT CHAIN BACK OVER BURNER - ALLOWS TUBE SYSTEM EXPANSION
FIGURE 24 HEATER DIMENSIONS
TURN BOX FOR ‘U’-TUBE
