46
P40U-F / P40U-IF I&O Manual
IM101220
RD: MAY 2014
RL: 5A
# PART DESCRIPTION PART # PART DESCRIPTION PRIMARY SUPPLEMENT
23 INDICATOR LAMPS JW-0519-AM Indicator light amber
JW-0519-GR Indicator light green
JW-0519-RE Indicator light red
24 ELECTRICAL CORD JB-0567-XX Cord - electrical 6'
25 SIGHT GLASS ASSEMBLY JS-0536-XX Sight glass assembly - tube heater
26 IGNITER KIT JA-0571-KT Spark Igniter & Gasket Kit
28 FLANGE GASKET JS-0591-XX Flange Adapter Gasket
29 FLAME RECTIFIER JS-0592-RR Flame Rectifier

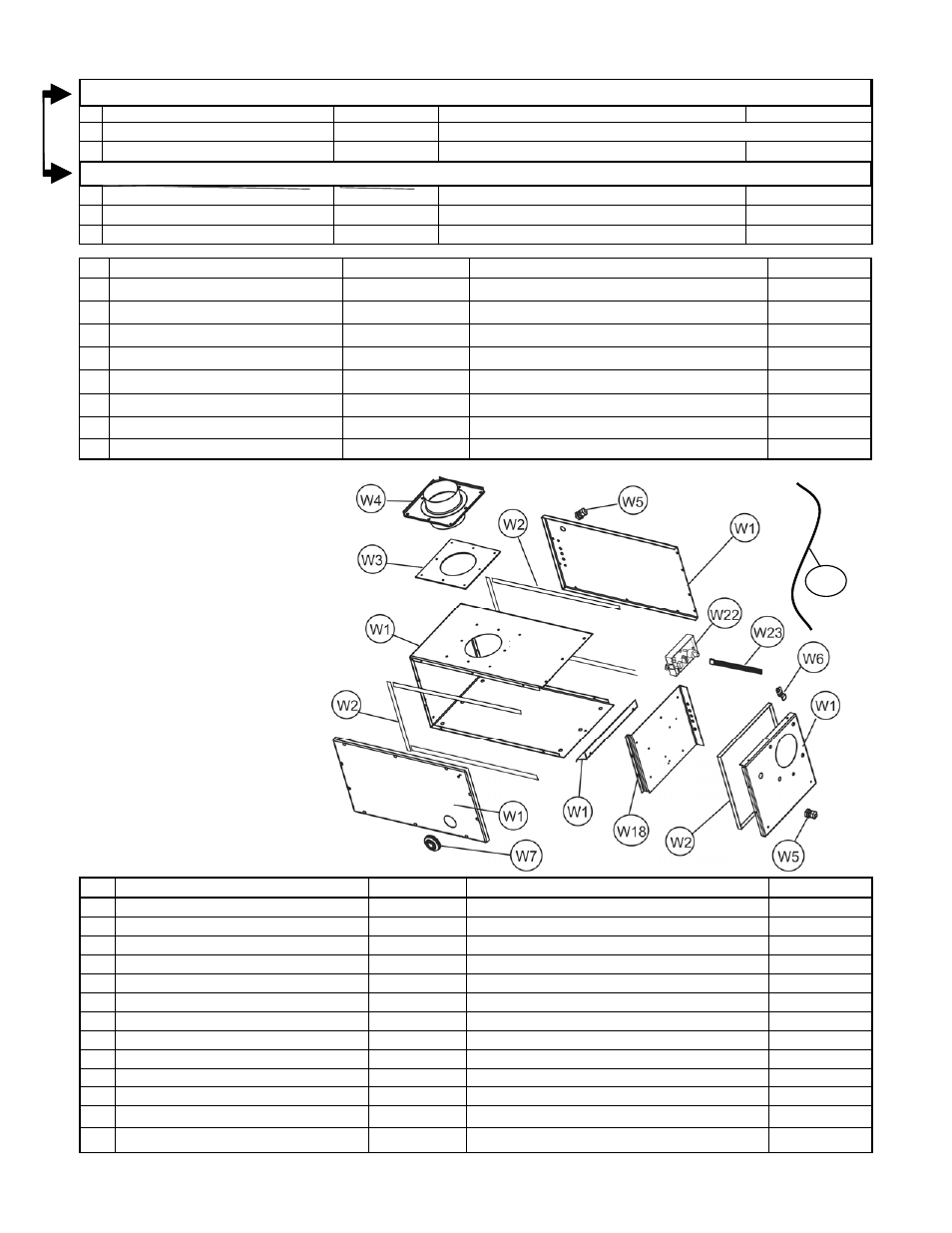

PARTS UNIQUE TO:
 P40U-P
 P40U-W
 P40U-IP
 P40U-IW
# PART DESCRIPTION PART # PART DESCRIPTION PRIMARY APPLICABLE
W1 BURNER HOUSING JS-0582-WP-P Powder Coated Burner Housing Wet Environment Indoor/Outdoor
JS-0582-WP Stainless Steel Burner Housing Harsh Environment Indoor/Outdoor
W2 BURNER HOUSING GASKET SET JS-0591-WP Housing gasket set
W3 AIR INTAKE GASKET JS-0601-WP Air intake gasket each
W4 COMBUSTION AIR INLET JS-0583-WP Powder Coated Combustion air inlet
JS-0583-15 Stainless Steel Combustion air inlet
W5 SEALTIGHT CONNECTOR JP-2036-XX Connector liquid tight
W6 BURNER STABILIZING BRACKET JS-0583-05-P Burner suspension bracket
W7 WATERPROOF GROMMET JP-2101-XX Water proof butt connectors
W18 COMPONENT PLATE JS-0583-41 component mounting plate
W22 IGNITION CONTROL JB-0568-AA Control - DSI 3 Try potted Gasliter MICRO 50N
W23 IGNITION CONTROL WIRING HARNESS JB-0568-WH 3 Try potted spark DSI control wiring harness
W27 IGNITION CABLE - MICRO 50N JS-0518-SA Hi voltage wire (24") STW - 2 x 1/4" Spades
Burners with FENWAL IGNITION CONTROL - Models: P40U-F; P40U-I-F
22 FENWAL DSI CONTROL JA-0567-XX 3-Trial 24Vac with blower relay “-F” Models
REPLACEMENT KIT: FENWAL & S87J JA-0568-KT Fenwal Control + Wire Harness + Cable + Igniter: Replaces Fenwal & S87J
27 IGNITION CABLE JS-0518-SA Hi voltage wire (24") STW - 2 x 1/4" Spades
Burners with HONEYWELL S87-J IGNITION CONTROL - Models: P40U; P40U-I
22 HONEYWELL IGNITION CONTROL JA-0568-XX DISCONTINUED - NO LONGER AVAILABLE
REPLACEMENT KIT: FENWAL CONTROL JA-0568-KT Fenwal Control + Wire Harness + Cable + Igniter
27 IGNITION CABLE HONEYWELL S87J JS-0518-XX Wire hi voltage (24") S87J Bullet Connection
W27
