49
UHE-F / EIH-F I&O Manual
IM100205
RD: MAY 2014
RL: 06A
UHE / EIH Burner

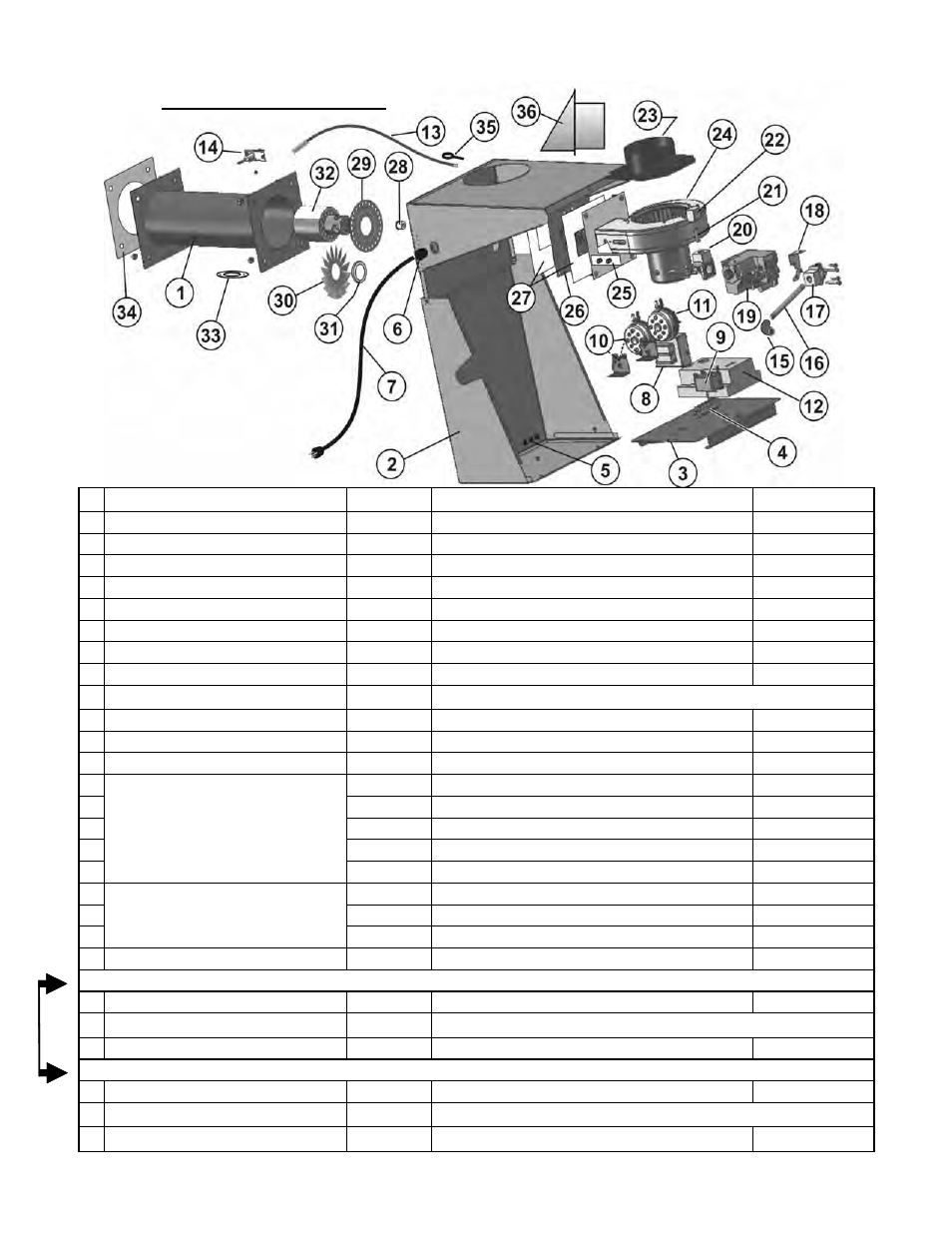

29. BURNER PARTS LIST
# PART NAME PART # PART DESCRIPTION SUPPLEMENT
1 FLANGED ADAPTER JS-0501-UL 4" Dia. x 7-3/4" Flanged Adapter - UL
2 BURNER ASSEMBLY HOUSING JS-0582-UL Burner housing coated orange - Schwank
JJ-0582-UL Burner housing coated grey - InfraSave
3 COMPONENT PLATE JS-0581-UL Component Mounting Plate
4 TERMINAL BLOCK JM-0455-DD Terminal block
5 STATUS INDICATOR LIGHTS JW-0519-AM Indicator light - Amber
JW-0519-GR Indicator light - Green
JW-0519-RE Indicator light - Red
6 HOUSING GROMMET JP-2033-XX
7 ELECTRICAL CORD JB-0567-XX Electrical Cord - 6' with standard 120V plug
8 STEP DOWN TRANSFORMER JA-0775-XX Transformer 120/24V, 20VA AT120B1028
9 RELAY SWITCH 24V/120V JS-0568-CC 24V/120V Relay Switch
10 BLOCKED FLUE PROVING SWITCH JS-0577-TT Blocked Flue Switch 0.60" WC 60,000
(Normally Closed Switch)
JS-0577-YA Blocked Flue Switch 0.70" WC 90,000
Mounting bracket is attached to switch JS-0577-UL Blocked Flue Switch 0.74" WC 130,000
JS-0577-YY Blocked Flue Switch 0.90" WC 160,000
JS-0578-UL Blocked Flue Switch 1.03" WC 200,000
11 COMBUSTION AIR PROVING SWITCH JS-0575-UL Air Proving Switch 0.70" WC 60,000
(Normally Open Switch) JS-0576-UL Air Proving Switch 1.10" WC 90, 130, 200,000
Mounting bracket is attached to switch JS-0575-ZB Air Proving Switch 0.90" WC 160,000
AIR SWITCH TUBING (NOT SHOWN) JS-0572-SE Air Switch Tubing Set 2 Pieces 1/4" x 20" PVC
Burners with FENWAL IGNITION CONTROL - Models: UHE-F; EIH-F
12 FENWAL DSI CONTROL JA-0567-XX 3-Trial 24Vac with blower relay “-F” Models
REPLACEMENT KIT: FENWAL & S87J JA-0568-KT
Fenwal Control + Wire Harness + Cable + Igniter: Replaces Fenwal & S87J
13 IGNITION CABLE - FENWAL JS-0518-SA Hi voltage wire (24") STW - 2 x 1/4" Spades
Burners with HONEYWELL S87-J IGNITION CONTROL - Models: UHE / EIH
12 HONEYWELL IGNITION CONTROL JA-0568-XX DISCONTINUED - NO LONGER AVAILABLE
REPLACEMENT KIT: WITH FENWAL DSI JA-0568-KT
Fenwal Control + Wire Harness + Cable + Igniter: Replaces HONEYWELL S87J
13 IGNITION CABLE HONEYWELL S87J JS-0518-XX High Voltage Ignition Cable (24")
Grommet connector - electrical cord & spark wire
