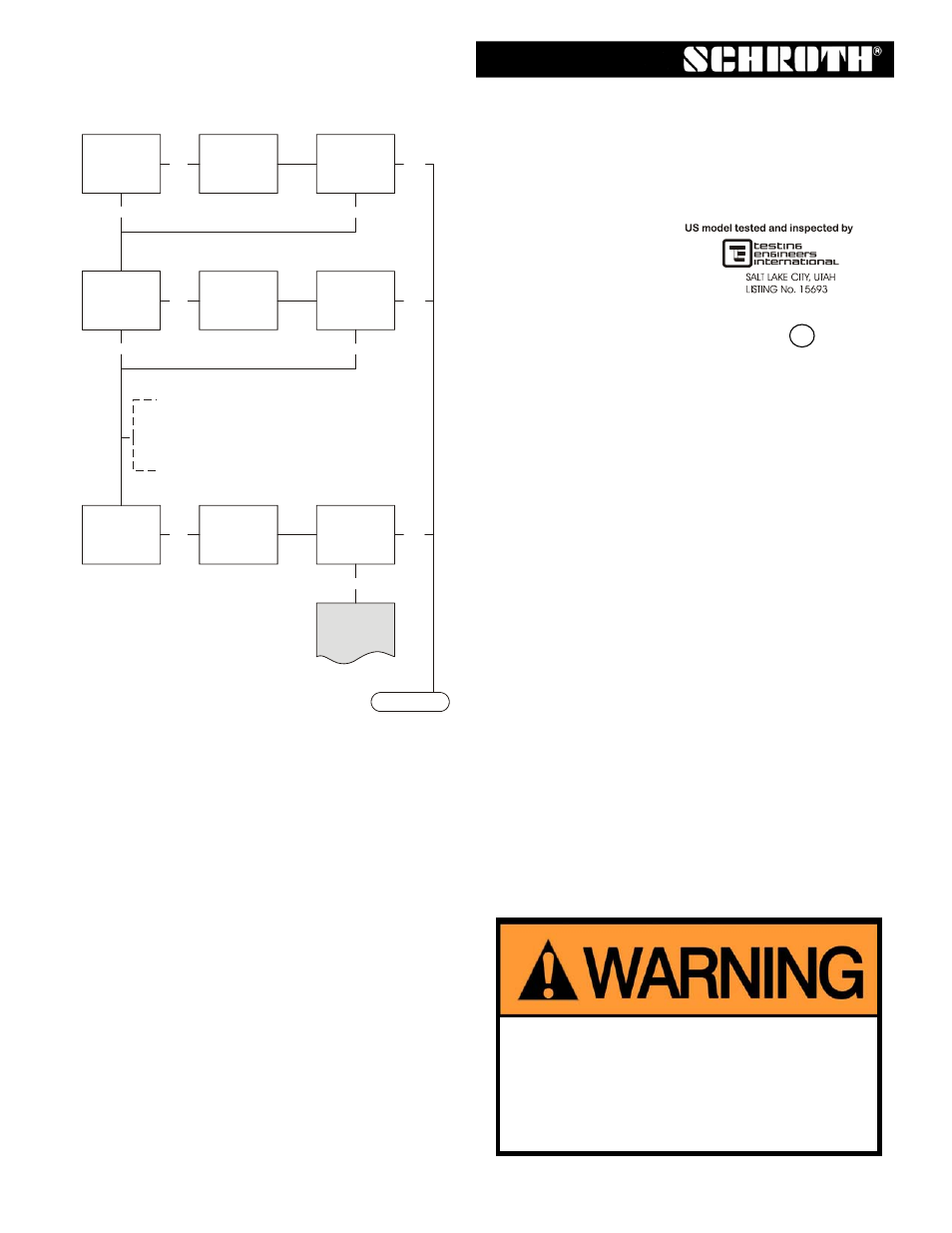

TSD 5 (Only use this instruction if all sources of malfunction
have been eliminated according to TSD 4.)
The latch is touching the cover of the recoil
mechanism. With the ignition on, the rear tail strap
cannot be uncoiled.
Ignition is
turned on?
Vehicle is on
level ground?
Recoil
mechanism
moving freely?
Turn ignition
on.
Belt can be
uncoiled?
Move vehicle
to level ground.
Repeat above
instructions.
With the ignition on, vigorously pull the tail strap 1"-1½" out
of the recoil mechanism.
If necessary put a srewdriver through the hole in the latch in
order to have a better grip.
Now slowly recoil the pulled out belt.
The locking mechanism should release with this manoeuvre.
Belt can be
uncoiled?
Belt can be
uncoiled?
yes
yes
yes
yes
yes
no
no
no
no
no
END
Send retractor
to importer for
inspection.
no
Page 36
INSTALLATION- and OPERATING
INSTRUCTIONS
Approvals asm-autocontrol
USA:
Tested in accordance with
applicable provisions of
FMVSS 209
®
i
Other Countries:
Rallye 3 A Approval-Number: Ser 4m E
13
040396
Made in Germany
Made in Germany by:
SCHROTH Safety Products GmbH
Postfach 24 40
59714 ARNSBERG
GERMANY
Phone + 49 - 29 32 - 97 42-0
Fax + 49 - 29 32 - 97 42-42
Imported by:
USA: MDI Inc. Other Countries: see
3 First Avenue www.schroth.com
Peabody, MA 01960
Phone (888) 536-8550
Congratulations!
With the purchase of this SCHROTH asm harnessbelt, you
have chosen a sophisticated restraint system, which
represents a further advance in harness restraint technology.
Extensive research, testing and field experience has shown it
to offer, when properly installed and worn, high levels of
protection in head-on collisions.
SCHROTH asm-autocontrol harnessbelt systems with the
emergency locking retractor are only intended for installation at
the left and right outboard front seating positions of passenger
cars which have been specifically evaluated by SCHROTH
engineers for anchor point locations and suitability of available
front seats.
Before attempting installation, please first answer the following
questions and carefully follow the instructions which
accompany them.
Restraint systems can only offer protection if they are
properly installed and used.
To assure proper function, your car must meet special
technical requirements.
Before installation of SCHROTH harnessbelt, please
answer a few very important questions to make sure the
SCHROTH harnessbelt system can be properly installed
and effectively used in your car..
