Schroth Racing All models - Hardware Guide - Manual (Page 4)

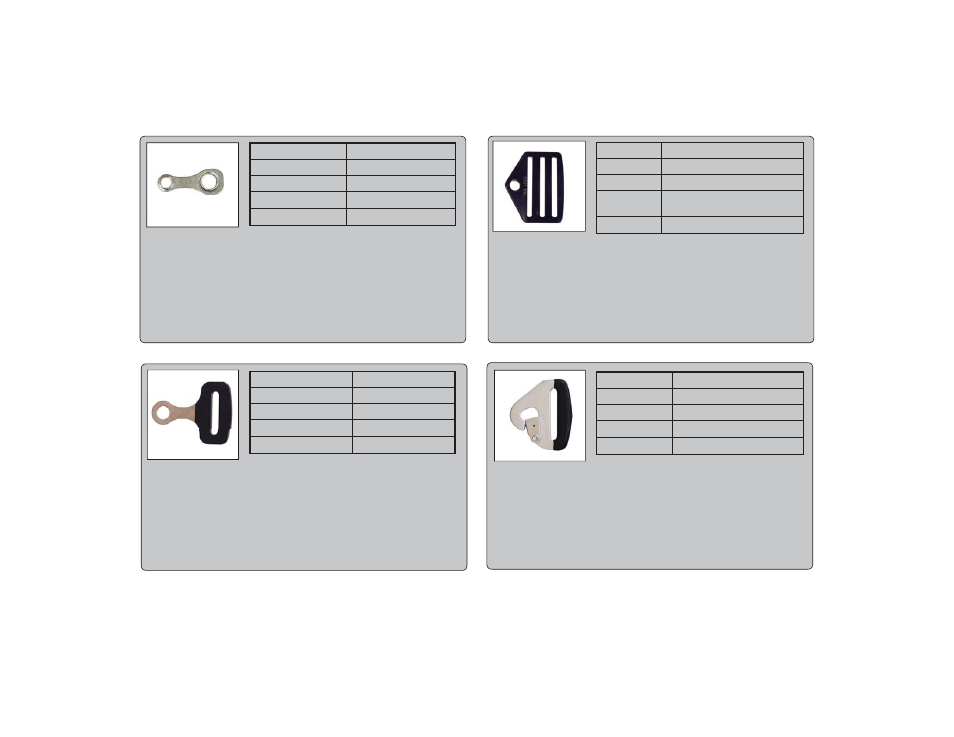

Part Number B23B
Locations Lap
Webbing 2”
Approvals FIA, SFI 16.1
Wraps N/A Must Be Sewn
This bracket, commonly referred to as the “Rallye Bracket” is taken from
the parts bin of the Street Legal harnesses. It must be sewn in or used
in conjunction with a snap-in bracket (B14). Its main feature is that it is
designed to be bent 90° in any direction while still retaining its strength.
Commonly used to solve inboard lap belt mounting diffi culties, the is a
very popular bracket in sedans being converted into track cars. Dimen-
sions are 2mm thick, 34x86mm with a 13mm (1/2”) bolt hole. The larger
hole diameter is 19mm. FIA and 16.1 approved.
The B23C shares design with the B23B. Its main feature is that it is
designed to be bent 90° in any direction while still retaining its strength.
Dimensions are 3mm thick (uncoated) and 4mm thick (coated) - 61x
81mm with a 13mm (1/2”) hole. It can be sewn in, or wrapped with an
LV7. 3” webbing must be folded at the edges for use with this bracket.
FIA and SFI 16.1 approved.
The B45 bracket is commonly used in formula and prototype applications
where there are no in-line adjusters on the lap belts. This bracket incorporates
a 3 bar slide into the bracket – allowing you to adjust the length at the bolt in
location. Note: you cannot adjust length once a driver is in the car. Dimen-
sions are 4mm thick, 94x76mm with a 13mm (1/2”) hole. There is a slight 10°
bend so that this bracket can be bolted directly to a fl at surface and leave room
for webbing wrapped into it. This bracket can only be wrapped in. FIA and SFI
16.1 Approved. Use Part number B40 NC for SFI 16.5 approval.
The B14 Snap-In bracket snaps to Eyebolts and Bolt-in Bracket B23B. It
can be sewn into 2” and 3” webbing, or wrapped with an LV4, LV10 or
LV11. When wrapped into 3” webbing, one must fold the edges of the
webbing in and use an LV7. Can be used on any point of a harness - lap
belt, sub strap, or shoulder belt. FIA and SFI 16.1 approved.
Part Number B23C
Locations Lap, Shoulder
Webbing 3”
Approvals FIA, SFI 16.1
Wraps LV7
Part Number B45 & B40 NC
Locations Lap, Shoulder
Webbing 3”
Approvals FIA, SFI 16.1, SFI 16.5 (Lap Loca-
tion Only)
Wraps Incorporates 3-Bar Slide
Part Number B14
Locations Lap, Shoulder, Sub
Webbing 2” & 3”
Approvals FIA, SFI 16.1
Wraps LV4, LV10, LV11NC, LV7 (3”)
