PM175 Quick Start Guide

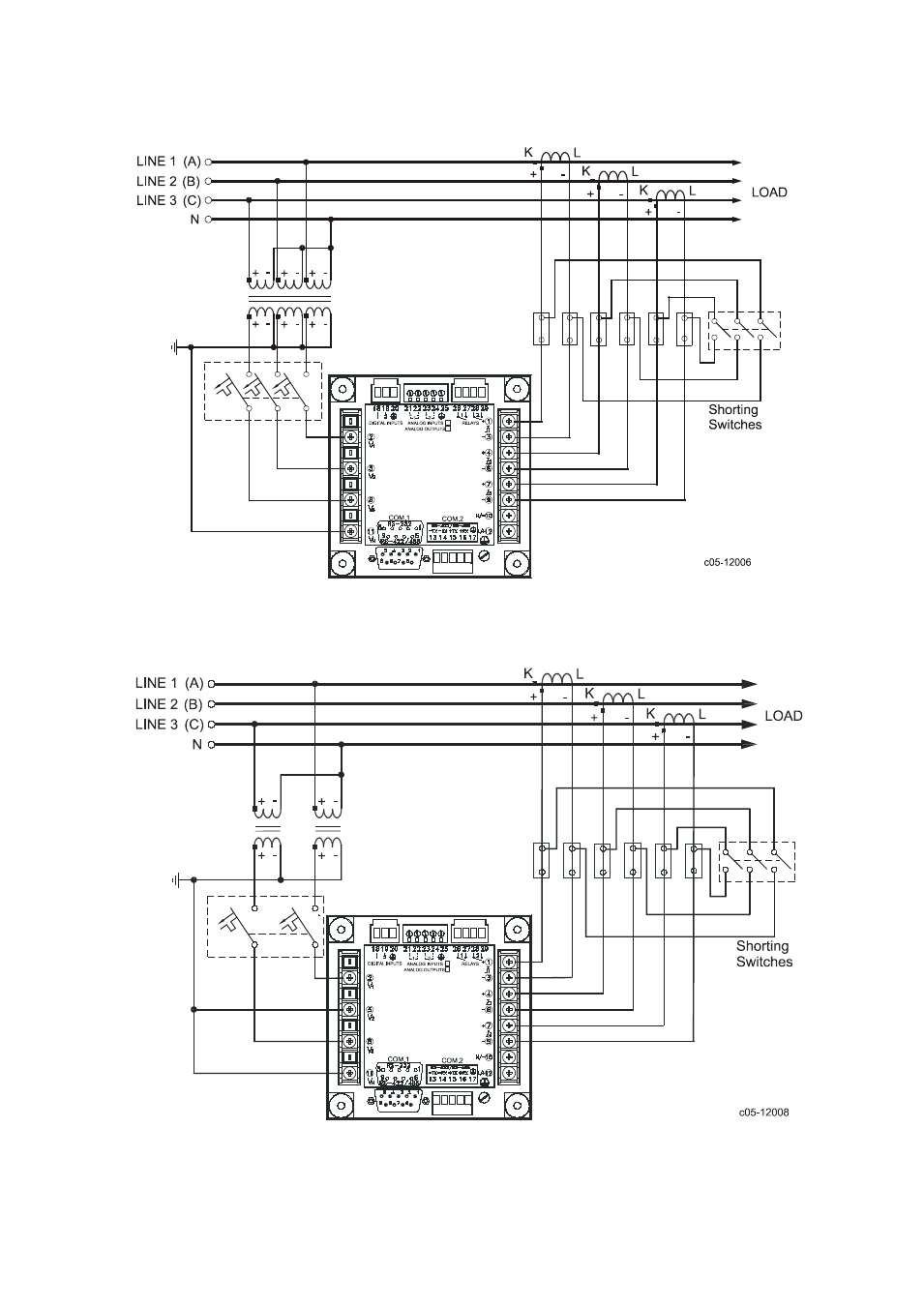

The diagrams below show typical installations of the PM175.
Figure 7: Typical Installation 2
The typical installation diagram above shows a 4-Wire Wye 3-element connection
using 3 PTs and 3 CTs. The wiring mode is 4LL3 or 4Ln3.
Figure 8: Typical Installation 2
BG0456 REV.A2
