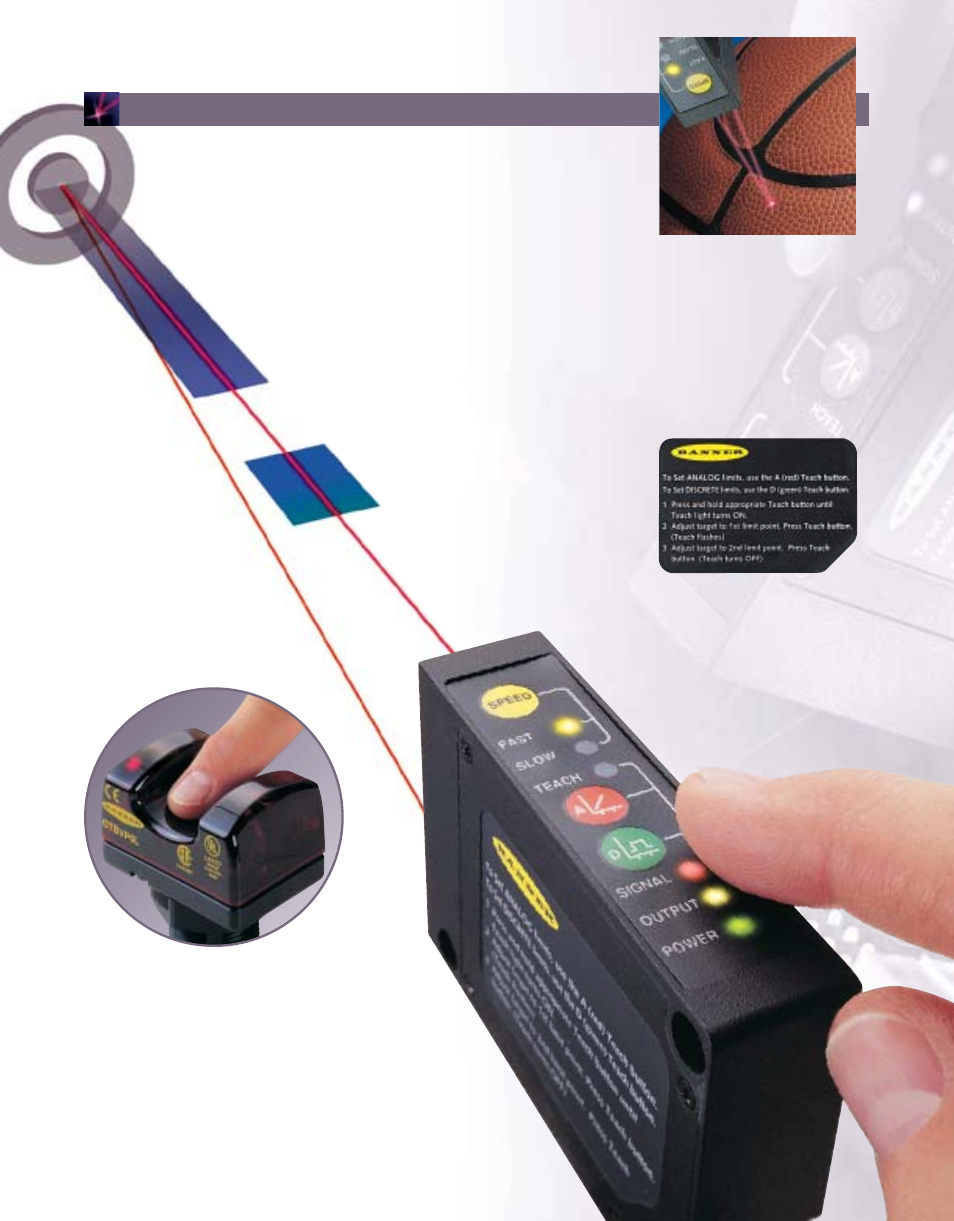

Define your own custom sensing window
by simply pushing a button.
Unlike older, inflexible, fixed-range technology, Banner’s
unique TEACH-mode programming allows you to set your own
custom-sized sensing windows, and place them anywhere within
either a 45 mm to 60 mm (1.8" to 2.4") or 75 mm to 125 mm
(2.9" to 4.9") range using a single push button. One
L-GAGE sensor can be easily programmed to provide
an analog output, discrete output, or both
simultaneously with independently controlled
sensing window limits.
Automatic gain control.
L-GAGE sensors feature Automatic
Gain Control (AGC) to automatically
compensate for varying colors,
helping to minimize linearity errors
and false triggering associated with
conventional laser sensors.
L-GAGE ™ : The world’s first teachable laser sensor. L-GAGE ™ : The world’s first teachable laser sensor.
75 mm to 125 mm
45 mm to 60 mm
(2.9" to 4.9")
(1.8
" to 2
.4"
)
Easy as 1, 2, 3!
Simple programming instructions
(three short sentences) are printed
on the side of the L-GAGE for
permanent, easy access.
Remote programming.
For maximum convenience and easier access
for programming hard-to-reach sensors,
TEACH-mode programming can also be
accomplished from a remote location using
an external switch, computer or controller.
The integral key pad may be locked remotely,
providing added security by eliminating
possible tampering with sensor adjustments.
