9- Next, pull approximately three inches of the components wires through the seal and strip off the top insulation of each wire to about .200”
(5mm). See Picture 7.
10- Place a single terminal that mates with the intended S&S® EFI wire harness terminal inside the Deutsch® crimper tool, taking special care not to
crimp the terminal until the wire is installed.
NOTE: Proper crimping of the terminals is necessary in order for the component to operate to its full potential. An improperly crimped terminal could
prevent the component from working. Read the instructions provided with the crimper or consult a professional on how to use the tool. Practice may also
help before crimping the final product. If a terminal is crimped poorly, replace with one of the supplied extra terminals.
11- Insert a wire into the terminal which is being held in the crimper tool. See Picture 8. Slide the component wire just past the inside
of the terminal’s insulation crimp tangs. See Picture 9. Squeeze the crimper tool until it stops and you will have a crimped terminal.
See Picture 10.

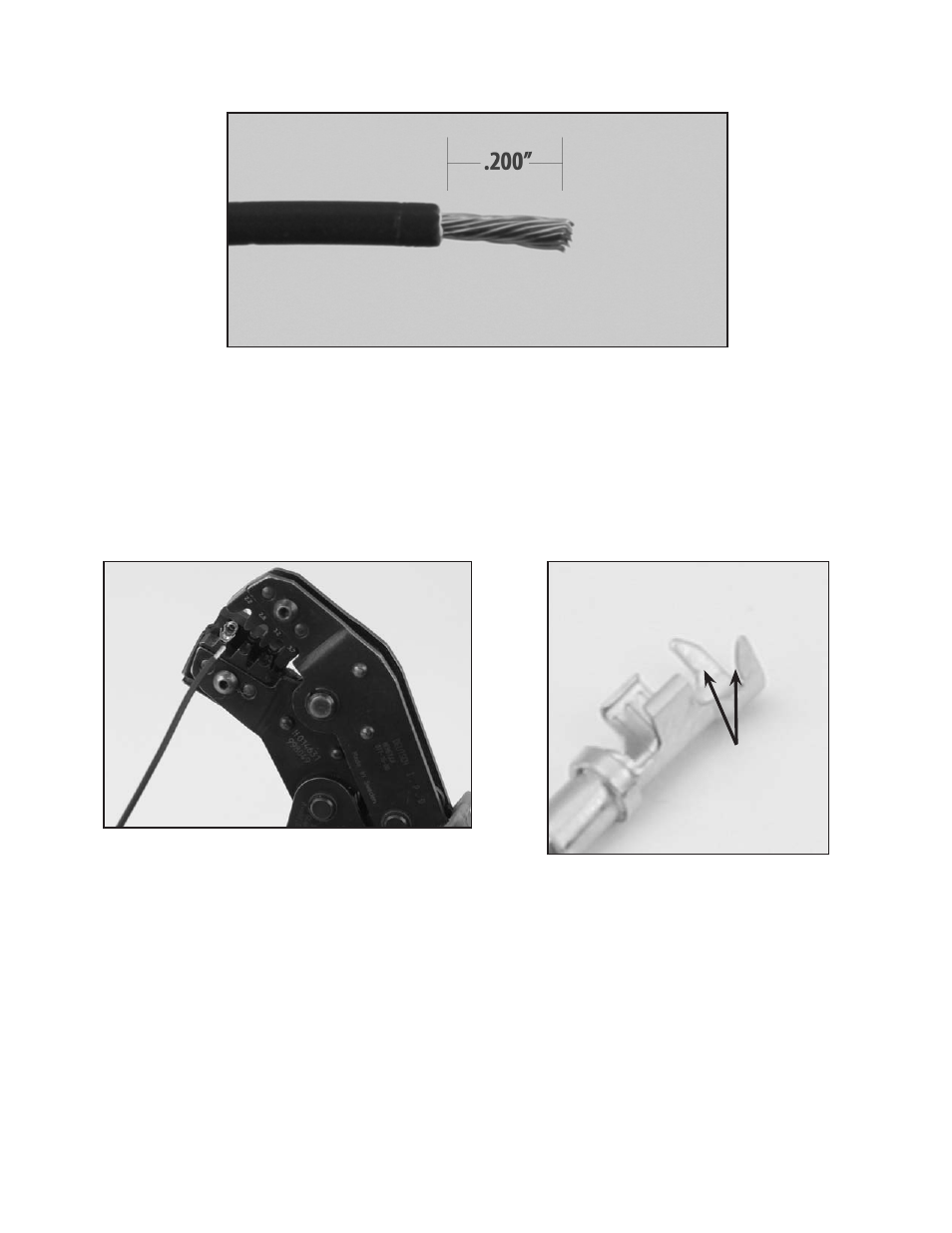

Picture 8
Picture 9
Picture 7
12- Repeat step 10 and 11 for the rest of the terminals in that connector.
13- Once all wire leads of the component have had terminals installed, insert each wire into its correct position in the connector housing. The
connector housing will positively lock the wire into place if properly installed.
Insulation
crimp tangs
