S&S Cycle EFI Wire Harness for Custom Frame Applications Using S&S Fuel Injected Engines and Delphi Style Modules User Manual
Page 10
10
WARNING
Failure to correctly match the component wires with the correct wires on the S&S® EFI wire harness may result in permanent damage to
the component or the S&S EFI wire harness when power is supplied to the assembly. Please take special care when identifying wire colors
and where they should go. If in any doubt, consult a professional at a shop with the component instructions and the wiring diagram
supplied with your S&S EFI wire harness. Improper installation could result in injury or death.

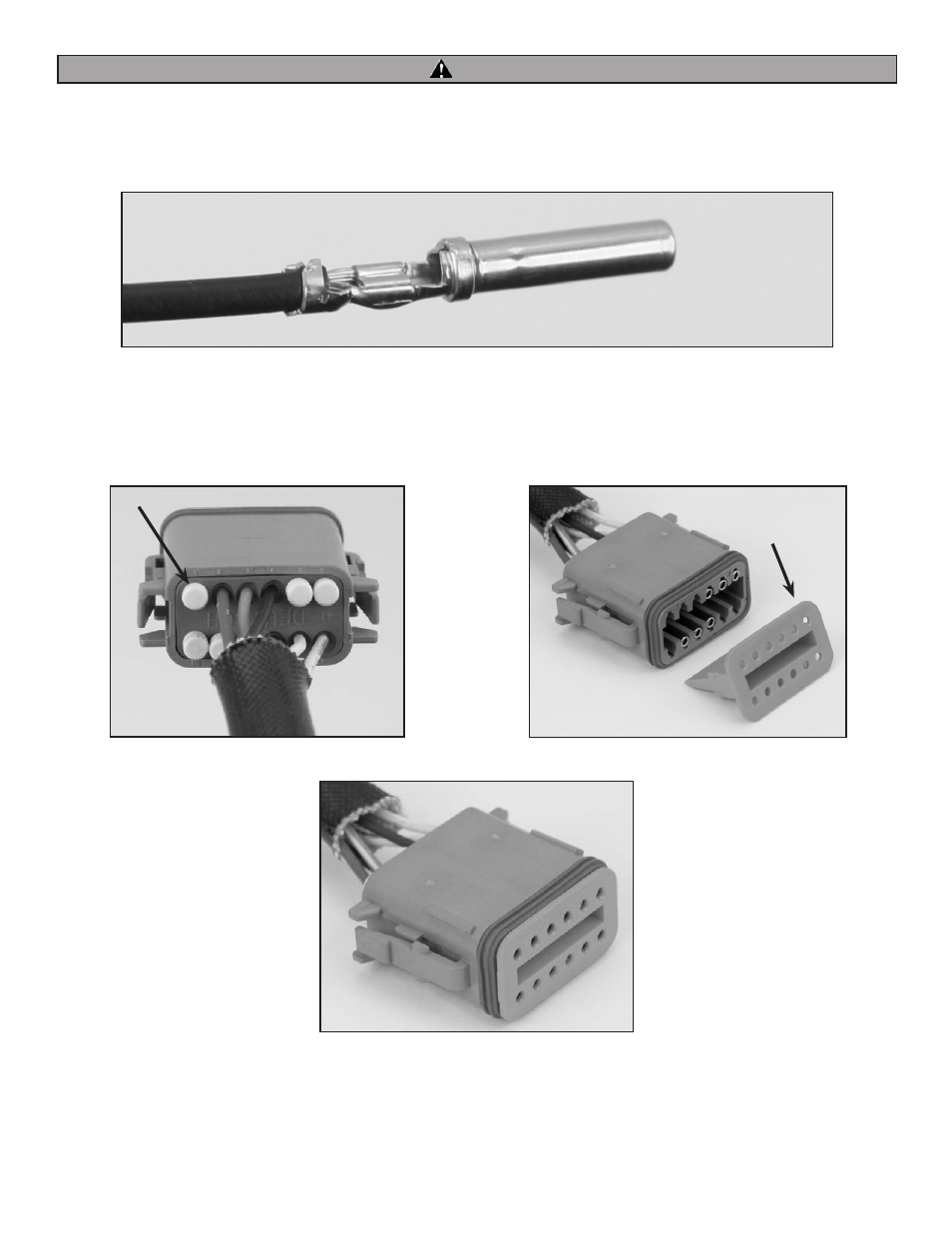

14- After each wire is inserted into the connector housing, slide the seal back up the wires and position the seal back inside the housing. If
necessary, install sealing plugs to block off moisture from entering the connector housing. See Picture 11.
15- Finish the assembly by installing the connector’s secondary lock, which helps prevent the wire leads from coming out. See Pictures 12 and 13.
16- Finally, connect the component connector to the S&S EFI wire harness.
Picture 11
Picture 12
Picture 13
Picture 10
Secondary lock
Sealing plug
