• Repeat these steps two or three times to remove all air bubbles out of the
press. Then conduct a pressure test.
(See the following Chapter on the pressure test)
If you do not reach the required pressure of 25 tonnes during the pressure test,
there must be air in the press still. In that case, proceed as follows:
• Remove the die tool.

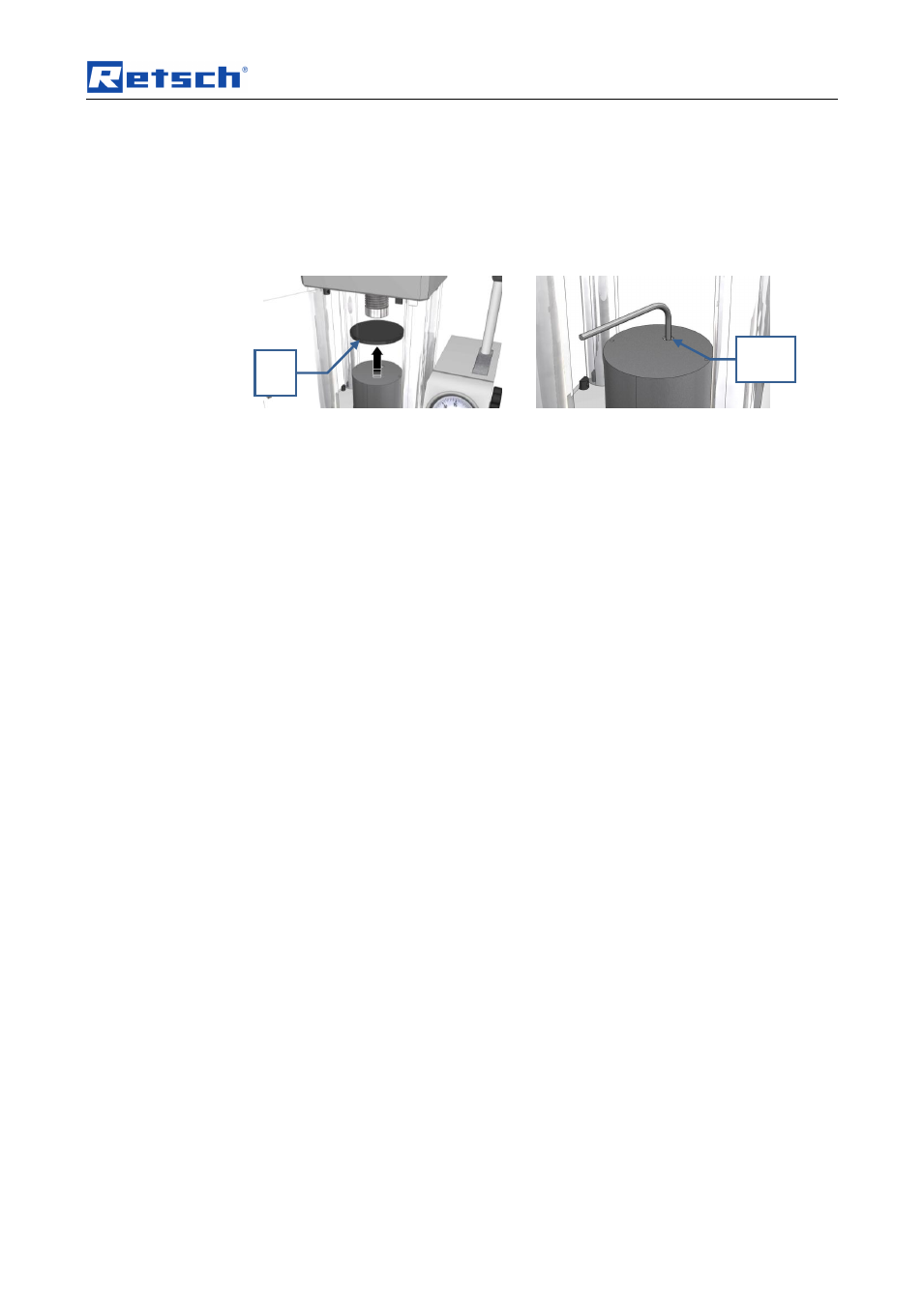

Fig. 16:
• Pull the cylinder plate (G) upwards and off.
• Use the supplied hex key to loosen the ventilation screw (ES).
• Close the shut-off valve (H).
• Using the lever (B), pump very slowly until oil appears in the ventilation
opening (ES).
It may be necessary to wait until no more air bubbles rise upwards.
• Then tighten the screw (ES) again and insert the pressing plate (G) again.
Pos : 8. 18 /00005 Ü berschrif ten/ 1. 1 Ü bersc hrift en/ 1. 1 Übersc hrift en BD A/ 11 Druc ktest @ 4\ mod_1322561088719_9.doc @ 25835 @ 2 @ 1
5.8 Pressure Test
Pos : 8. 19 /00010 Bedi enungsanleit ung en Kapitels ammlungen/ PP25/ 0015 Bedienung/ 15xx PP25 Modul Druc ktes t @ 4 \ mod_1322562738796_9. doc @ 25925 @ @ 1
• Close the shut-off valve (H) by turning in a clockwise direction.
• Then pump by moving the hand levers forwards and backwards until a
pressure of at least 25 t is indicated in the pressure display.
Pos : 8. 20 /00005 Ü berschrif ten/ 1. 1 Ü bersc hrift en/ 1. 1 Übersc hrift en BD A/ 11 Überdr uc ksic herung @ 4\ mod_1322561084719_9. doc @ 25808 @ @ 1
5.9 Overpressure relief
Pos : 8. 21 /00010 Bedi enungsanleit ung en Kapitels ammlungen/ PP25/ 0015 Bedienung/ 15xx PP25 Modul Überdr uc ksic her ung @ 4\ mod_1322562739468_9.doc @ 25934 @ @ 1
There is an overpressure relief valve inside the press. This is set to 25-t. The
overpressure relief valve may be set only in the factory.
If the hand lever (B) is actuated when the set pressure of 25 t is actuated again,
the safety valve prevents damage to the press.
Pos : 9. 1 / 00005 Übersc hrift en/1. Übersc hrift en/1 Rei nigung und Wart ung @ 0\ mod_1231167007723_9.doc @ 5450 @ @ 1
6 Cleaning and service
Pos : 9. 2 / 00005 Übersc hrift en/1. 1 Ü berschrif ten/ 1. 1 Ü bers chrift en BDA/ 11 R einigung @ 0\ mod_1226909670239_9. doc @ 3607 @ @ 1
6.1 Cleaning
Pos : 9. 3 / 00010 Bedienungsanlei tungen Kapit elsamml ung en/PP25/ 0040 Wartung, R einigung und Vers chl eiß/ 4005 PP25 M odul Rei nigung @ 4\ mod_1322729842800_9.doc @ 25990 @ @ 1
Do not clean the press with running water. Use only a cloth dampened with water.
Do not use any solvents or aggressive cleaning agents!
Pos : 9. 4 / 00005 Übersc hrift en/1. 1 Ü berschrif ten/ 1. 1 Ü bers chrift en BDA/ 11 Wartung @ 0 \ mod_1226909694066_9. doc @ 3613 @ @ 1
6.2 Service
Pos : 9. 5 / 00010 Bedienungsanlei tungen Kapit elsamml ung en/PP25/ 0040 Wartung, R einigung und Vers chl eiß/ 4010 PP25 M odul Wart ung @ 4\ mod_1322729879692_9.doc @ 25998 @ @ 1
The press is for designed for many yearsof operation and requires only very little
servicing . From time to time, you should check if the threaded spindle on the press
can move easily.
• Clean and oil the press as required.
No further maintenance is needed.
