Operating the machine
22

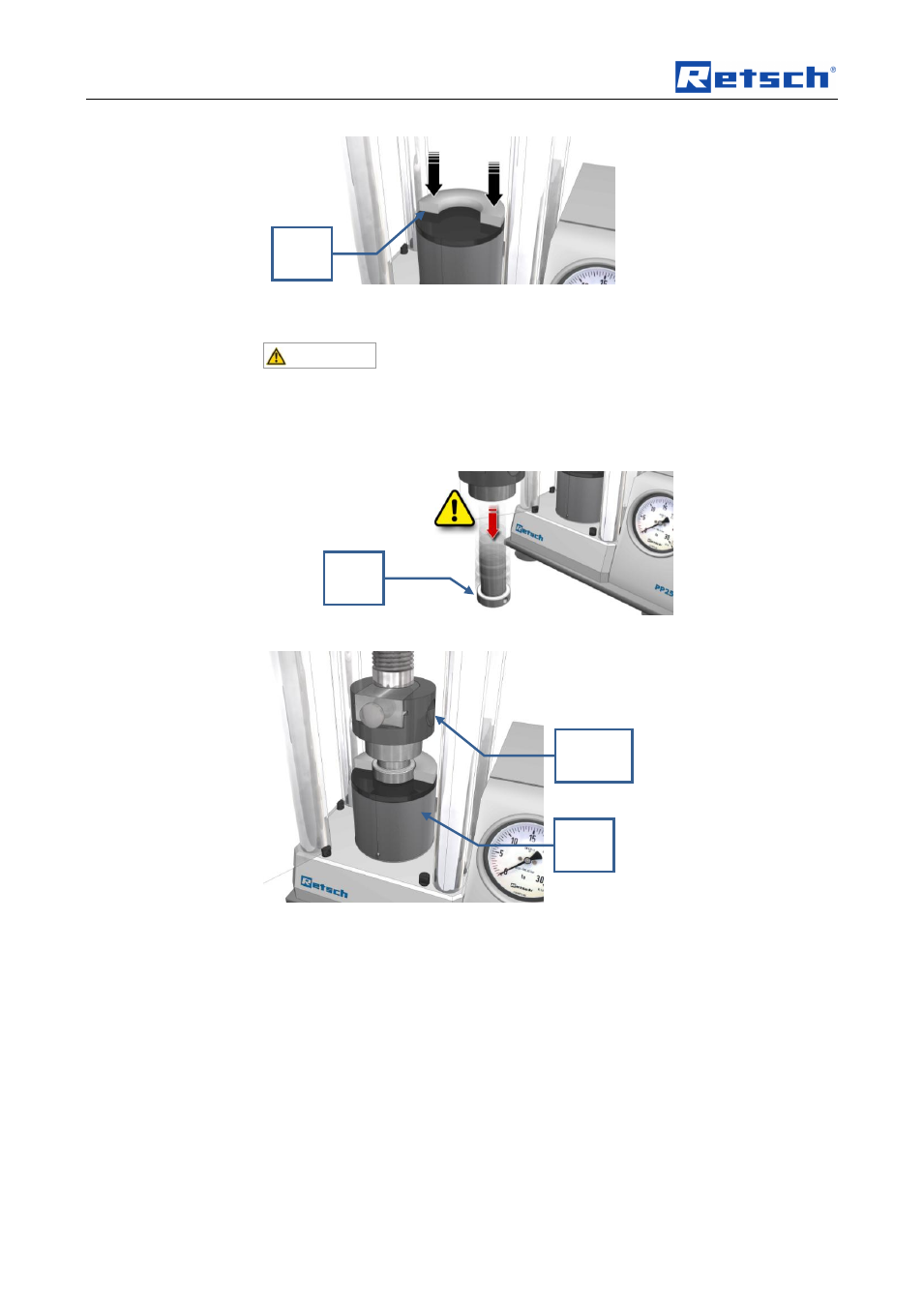

Fig. 8: Inserting the centring aid
• Insert the centring aid (F) if required.
CAUTION
Risk of fingers being pinched.
The plunger is loose! This means that there is a risk of the plunger (M) dropping
downwards when the die tool is being inserted.
• Hold the plunger (M) securely when inserting the die tool!
Fig. 9: The plunger drops down
Fig. 10: Inserting the die tool in a turned position
• • Using the slide, move the die tool (PW) upwards onto the pressure
cylinder (J).
• Close the valve (H) by turning in a clockwise direction.
• Build up the required pressure force (t) by moving the hand lever (B)
forwards and backwards.
5.6.1 Removing the Die Tool and Tablet (2)
NOTE
A quick drop in pressure can cause the pellets to break.
• Open the shut-off valve (H) very slowly by turning in an anti-clockwise
direction.
F
PW
J
M
