Opening the cover
 Press the “open cover” button or
 disconnect the mains plug at the back of the machine
and use the emergency unlocking key
(see chapter on Emergency Unlocking)
 Remove only the lower cover caps.
 Unscrew the two cheese-head screws.
 Take off the lower cover.
The three rubber springs must be greased every 250h operating
hours at the top and bottom ends of the guide bolts. Use the
“Staburags NBU 4MF” heavy-duty lubricant type from Klüber or
another heavy-duty lubricant of the same quality.
 To grease, remove the rubber springs and put a
sufficient quantity of grease into the two holes.
Wearing parts
The 3 rubber springs should be replaced after approx. 500
operating hours. Order no. 03.228.0003
The rubber plate should be replaced after approx. 300 operating
hours. Order no. 03.243.0045
rubber plate
These operating instructions do not include any repair
instructions. In the interests of your own safety, repairs should
only be performed by Retsch GmbH or authorised agent or
service technicians.
Copyright
Distribution or duplication of this documentation, using or passing
on the contents, is allowed only with the express permission of
Retsch GmbH.
Persons violating are liable to pay damages.
Alterations
Subject to technical alterations without notice.

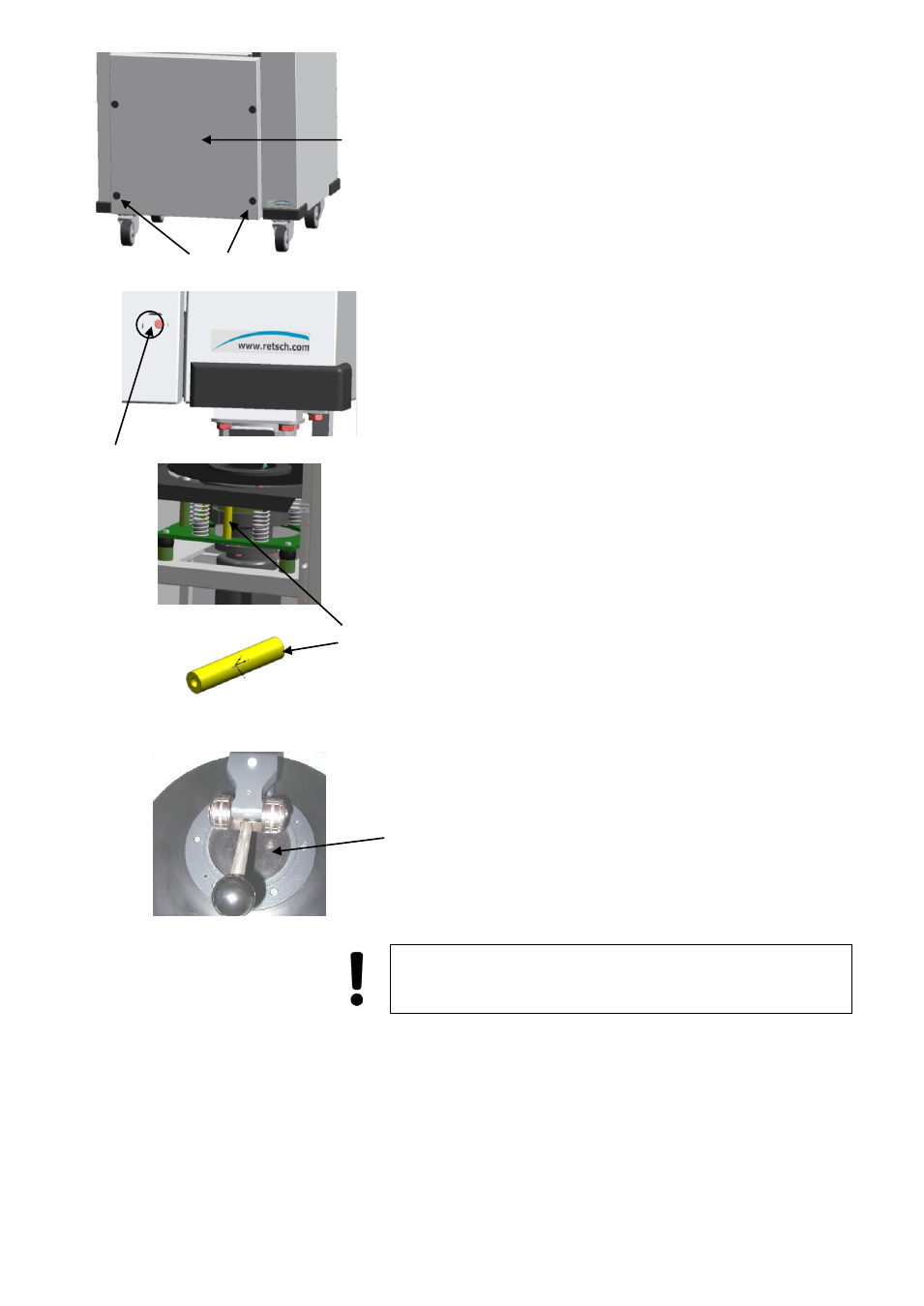

Cover caps
Cheese-head screws
