Operation via the display unit of the RS200
The mill has a new, very comfortable operator control system.
All relevant data can be entered or called via a graphic display
with one knob operation.
The menu system is multilingual.
Name Function
A Display Displays the menu, parameter settings, operating instructions and fault
signalling.
B START button Starts the milling process
C STOP button Stops the milling process
D Button Opens the milling chamber hood
E Setting knob By turning and pressing, all menu points can be selected and parameters set.
Turning 1
By turning, the various menu points can be selected. Selected menu points
are displayed inversely.
Turning 2
Setting of parameters in the opened menu points (see Pressing 1)
Pressing 1
Selected menu points are opened
Pressing 2
Short pressing confirms setting of parameters
Pressing 3
Continuous pressing: jump back to the 1st menu level
Symbols in the display unit
Programme mode – Take over parameters
Programme mode – Change programme
Programme mode – Delete programme
Warning sound off
Service due
Motor or frequency converter too hot
A
b
b
.
1
A
b
b
.
2
°C

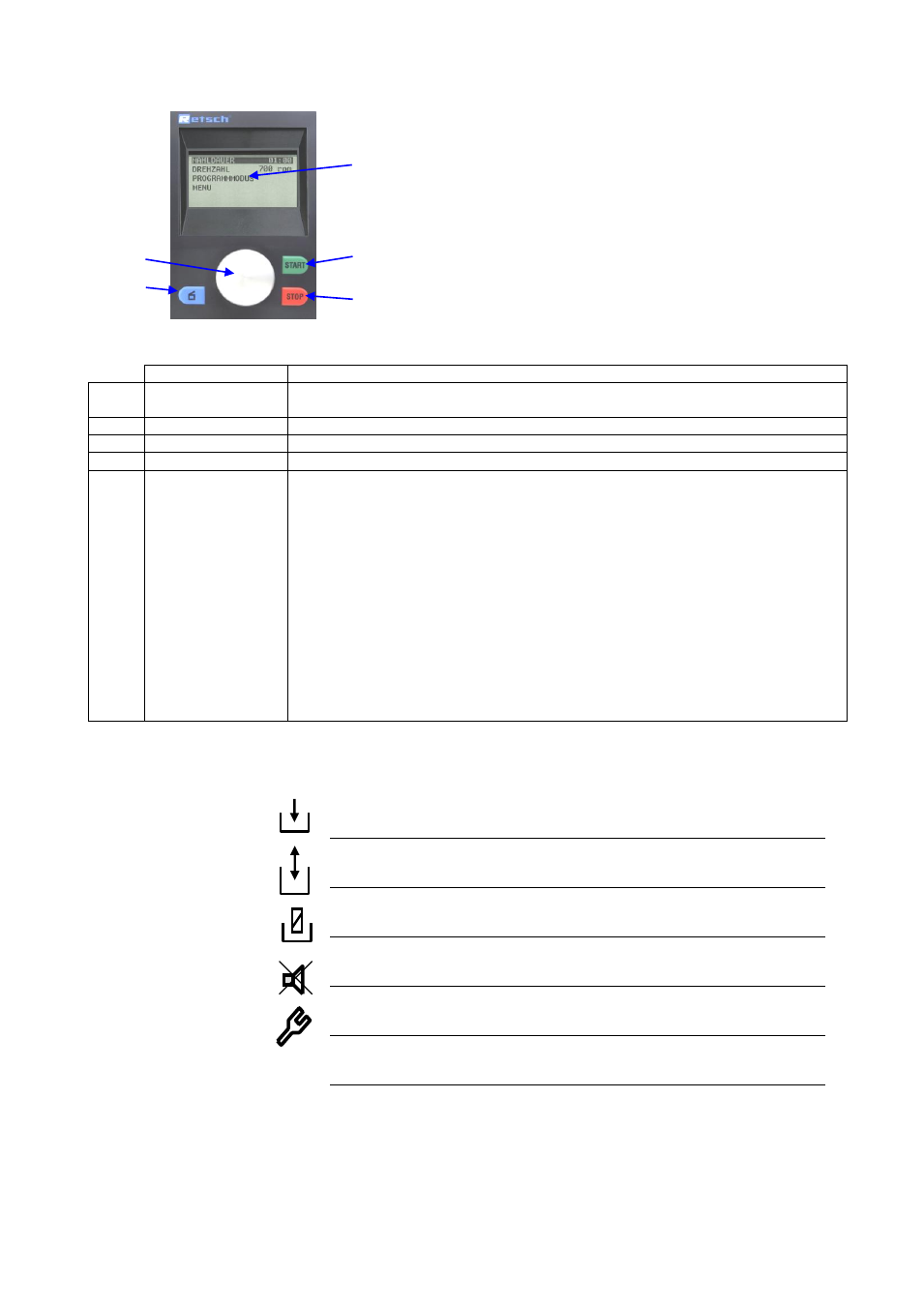

Fig. 15 Control panel
Abb.16 Bedienfeld
A
B
C
E
D
