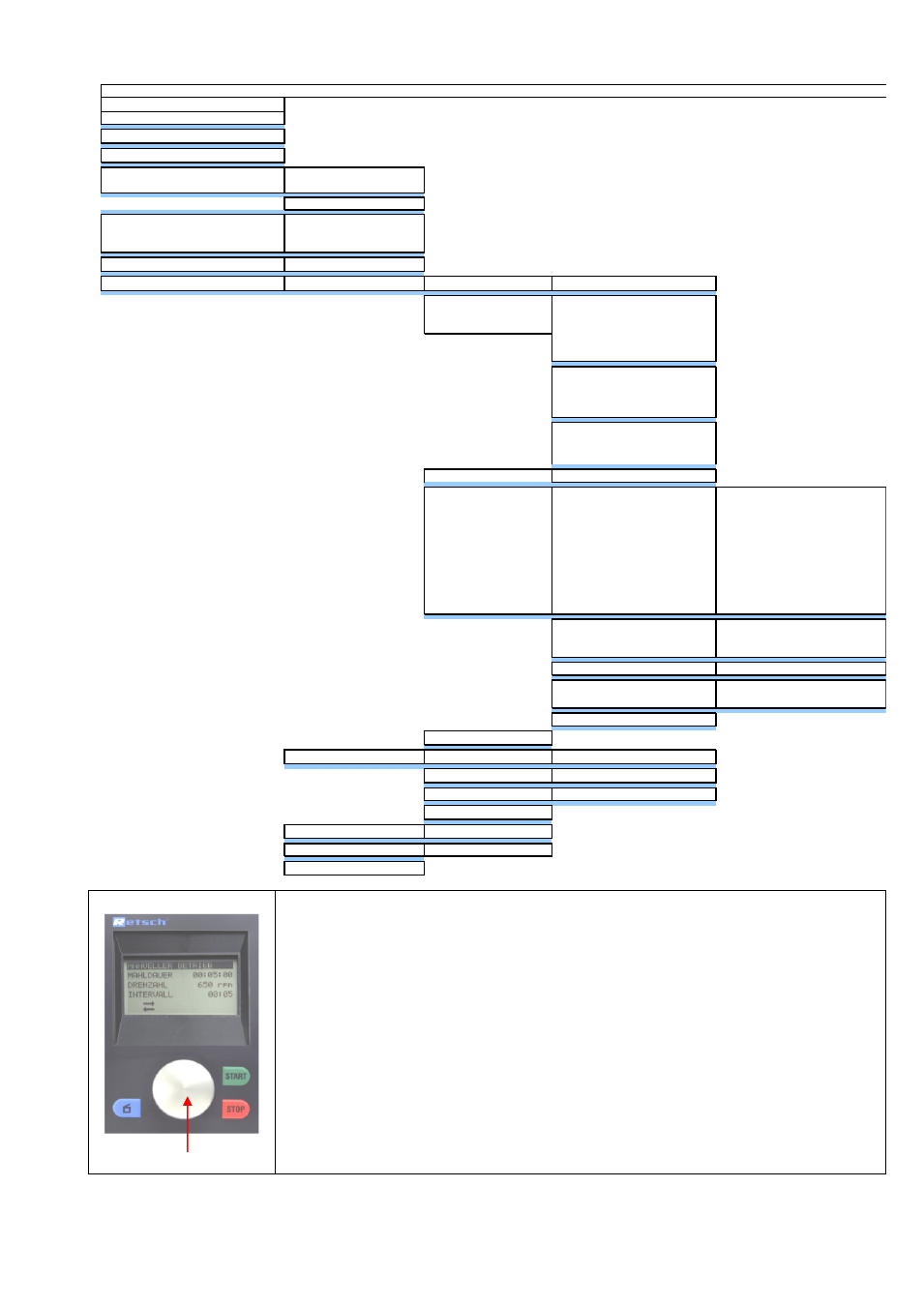

Menu structure of the display unit
1. Level
2. Level
3. Level
4. Level
5. Level
1 MANUAL OPERATION
GRINDING PROGRAM 01 bis 09
2 TIME
3 SPEED
4
INTERVAL
REVERSE ROTATION
YES / NO
INTERVAL BREAK 00:00
5
PROGAM MODE
STORE PARAMETERS
EDIT PROGRAM
DELETE PROGRAM
6 SET START TIME
START IN XXX h
7 MENU
SETTINGS
OPENING MECHANISM
YES / NO
ENERGY
DETERMINE
IDLING NERGY
INSERT JAR
START=MACHINE START
STOP=CANCEL
PREPARE JAR
BALANCED ?
CLOSE COVER
PRESS START TO CONTINUE
ENERGY INPUT
MEASURE
SET
ALARM
SERVICE
SERVICE HELP
DETAILS IN MANUAL
CLEAN SREW
CHECK RUBBER DISK
UNDER
CLAMPING SYSTEM
CHECK CLOAMPING ARMS
AND FASTENING BRACKET
FOR WEAR AND TEAR
CLEAN LUBRICATE
LOCK WHEEL
SERVICE INTERVAL
SET SERVICE INTERVAL
SET TIME xx h
REMANING TIMET xx h
TOTAL OPERATION HOURS
TOTAL GRINDING TIME:: xxx h
SOFTWARE VERSION
SOFTWARE VERSION: V 1.03
SOFTWAREUPDATE? YES/NO
BACK
BACK
DISPLAY
CONTRAST
LOW - HIGH
BRIGTHNESS
LOW - HIGH
LANGUAGES
SET
BACK
DATE 01.04.03
SET
TIME 12:05:00 SET
BACK
E
All menu items can be selected and parameters adjusted by turning and pressing
setting button E.
Turn 1
The different menu items can be selected by turning.
Selected menu items are shown inversely.
Turn 2
Adjust parameters in opened menu items (see Press 1)
Press 1
Selected menu items are opened
Press 2
A short press confirms the adjustment of the parameters
Press 3
Return to the 1
st
level menu by continuously pressing the button.
