Retsch Emax - Manual (Page 29)

Operating the machine
29

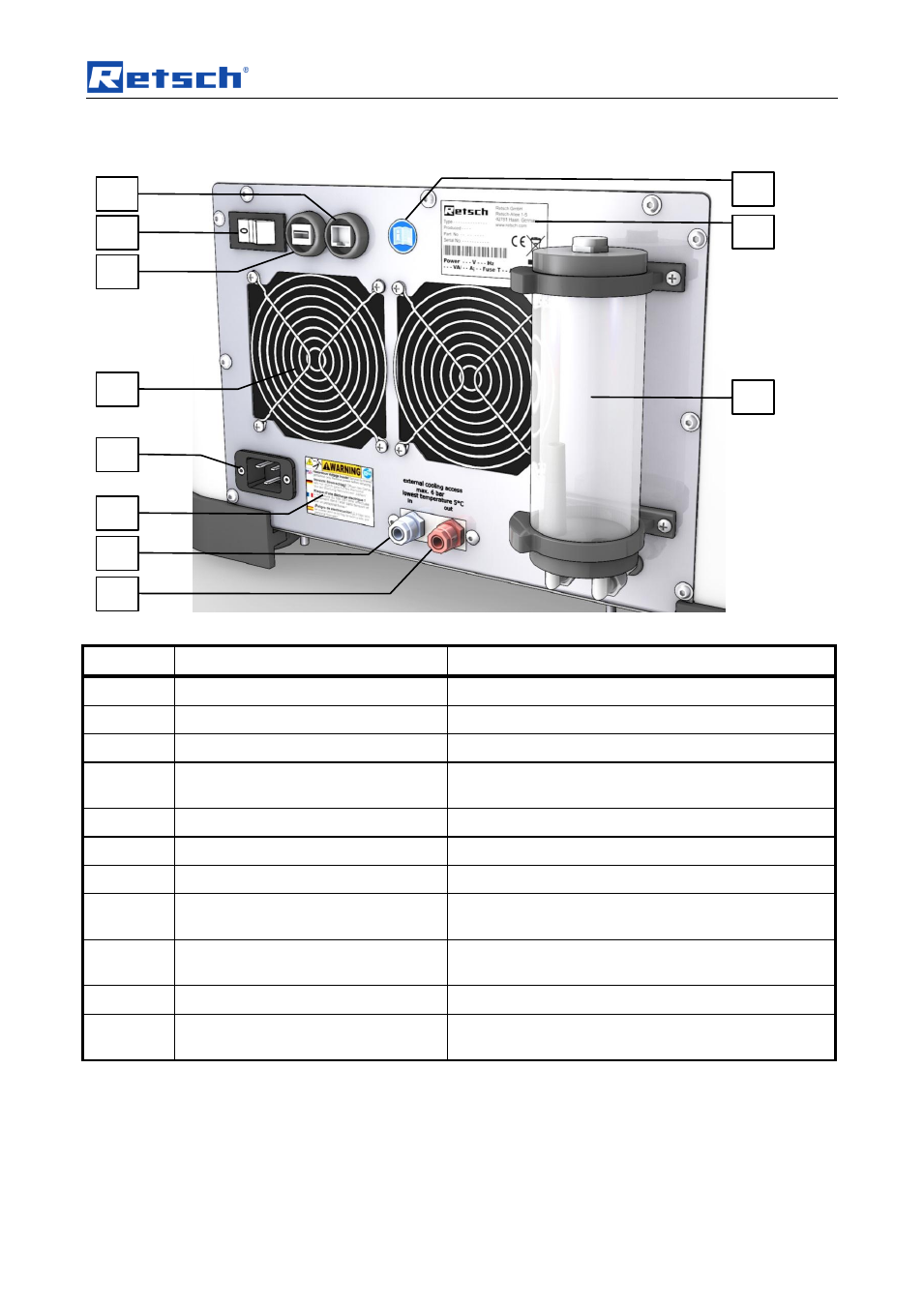

Fig. 14: Back of the device
Element Description Function
I Power switch Disconnect the device from the mains, automatic fuse
J RS232 interface (Ethernet) Data connection (inactive)
K USB interface Data connection
L
Warning sign to disconnect from the
mains
Warning of electric shock
M Mains connection Connection for power cable
N Type plate Voltage type, serial number, device model
O Housing fans Fans for lost heat
P
Cooling water outlet for external
cooling (optional)
Hot water outlet
R
Cooling water inlet for external
cooling (optional)
Cooling water inlet
S Operating instructions sticker Reminder to read the operating instructions
T
Cooling agent tank for internal cooling
circuit
Cooling water expansion tank / filling
J
I
K
O
P
R
M
L
S
N
T
