3. Connecting the Qik
Connecting to the qik can be as simple as hooking up logic and motor power, your motors, and RX. Many
applications can leave the jumpers off and the remaining logic connections—TX, ERR, and
RESET—disconnected.

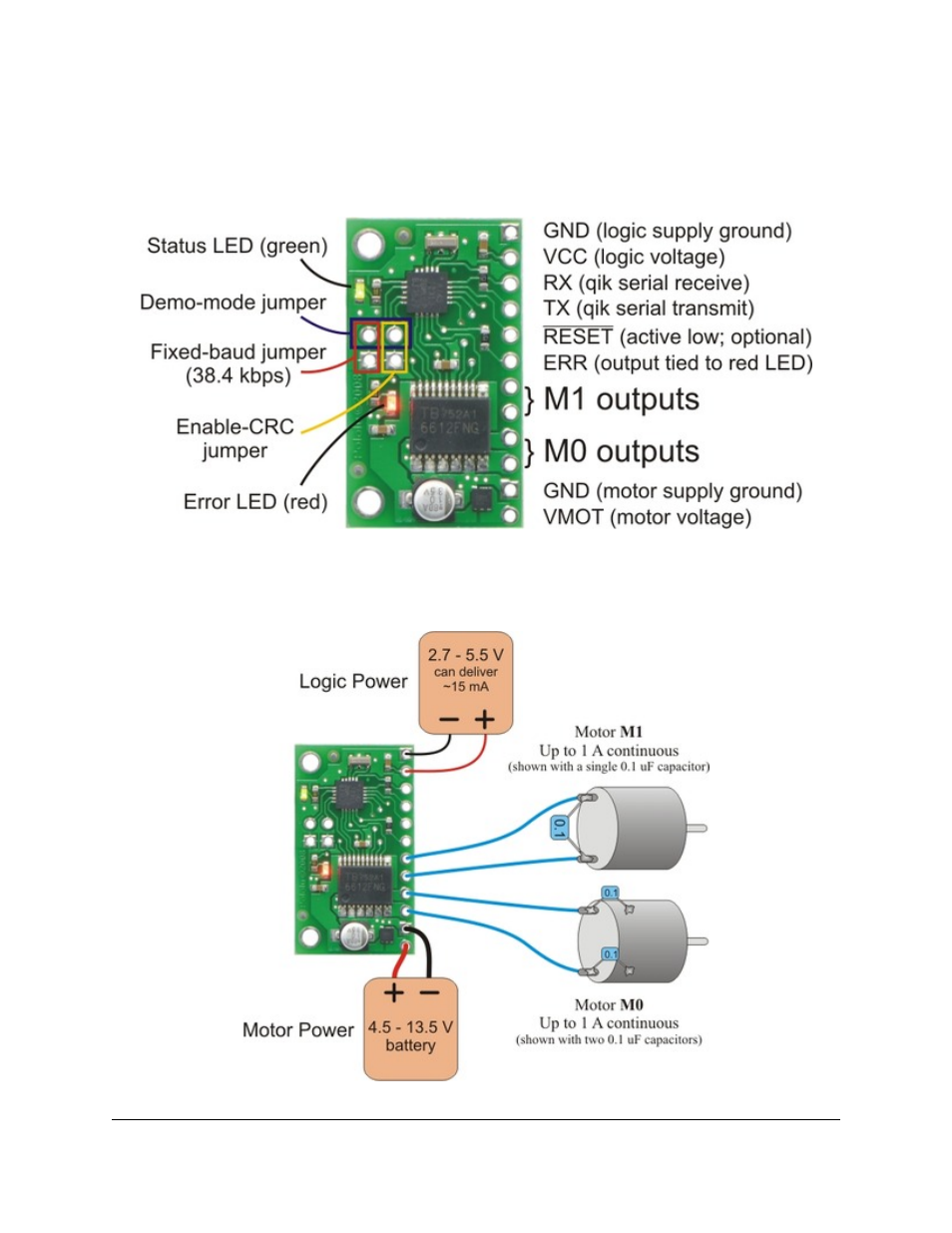

The qik connections are shown above, and most of the pins are labeled on the back side of the motor controller.
All square pads are ground.
3.a. Power and Motor Connections
