Cab Curtain Installation

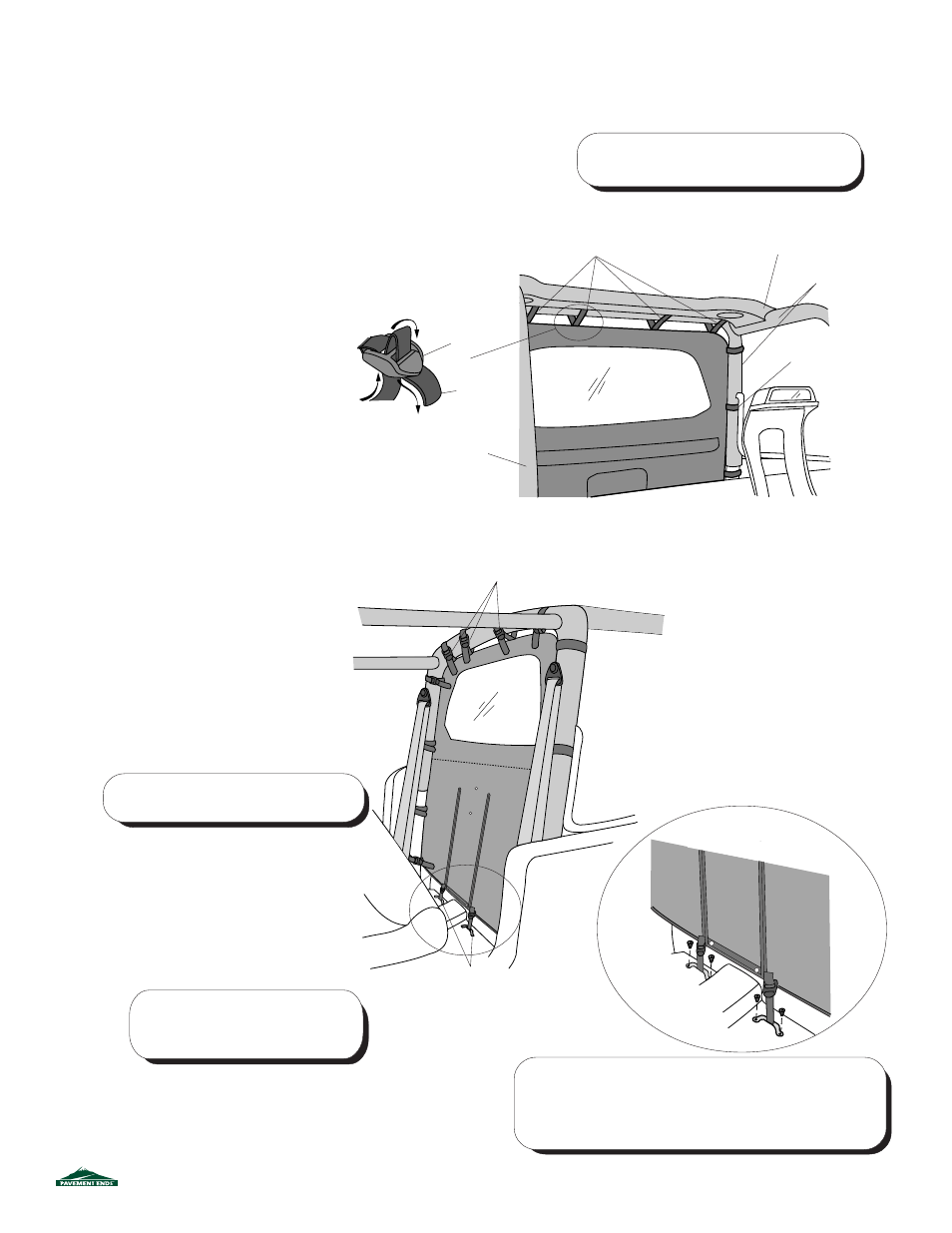

Step One
Orient the Cab Curtain with the window toward the top and with the vinyl
side out, toward the rear of the vehicle. Start at the top and wrap the four
top straps around the sport bar, between the sport bar and the Sound Bar, if
one is present. Then thread the end of each strap through each buckle.
Loosely tighten each strap to hold the Cab Curtain in position. Repeat this
procedure with the side straps. It may be necessary to lift up slightly on the
Fold Down Bow to work the middle strap underneath, in order to wrap it
around the sport bar.
Cab Curtain
Note: If the vehicle is equipped with a Soundbar,
the upper straps must be inserted between the
Soundbar and Pad.
Sound Bar (Optional)
Sport Bars
Top Straps - Wrap around Sport
Bar and between Sport Bar and
Sound Bar (if present)
Rear Sport Bar
Work Strap under
Fold Down Bow
Threading Strap
through Buckle
Buckle
Strap
Buckles
Note: After drilling the holes in the floor,
put silicone sealer on the holes before
installing the Footman Loops.
Warning: Check for wiring and fuel
lines before drilling holes in floor.
Warning: Do not remove the Footman Loops from
your vehicle once they have been installed. If this
is necessary, make sure the screw holes have been
covered with a sealer.
Step Two
Fold the front seats forward and locate the
Footman Loop Kit in the parts kit. Center a
Footman Loop on the floor of the vehicle
below each of the straps sewn to the bottom
of the Cab Curtain. Use the holes in the
Footman Loops as guides to mark, center
punch and drill four 1/8" holes. Seal the edges
of the holes with Silicone Sealer. Install the
Footman Loops using the four screws from
the Footman Loop Kit.
Footman Loops
(center under straps)
Cab Curtain
