Step Five

I

NSTALL

S

IDE

T

ENSION

S

TRAPS

Thread a Tension Strap through the
buckle on the side of the Sun Cap.

Hook the end of the strap under the
beltrail and slide it under the door
surround. Pull the strap tight.

Step Six

I

NSTALL

R

EAR

T

ENSION

S

TRAPS

Thread a Tension Strap through the buckle on
the rear of the Sun Cap.

Clip the end of the strap into the hole in the
sport bar. Pull the strap tight.

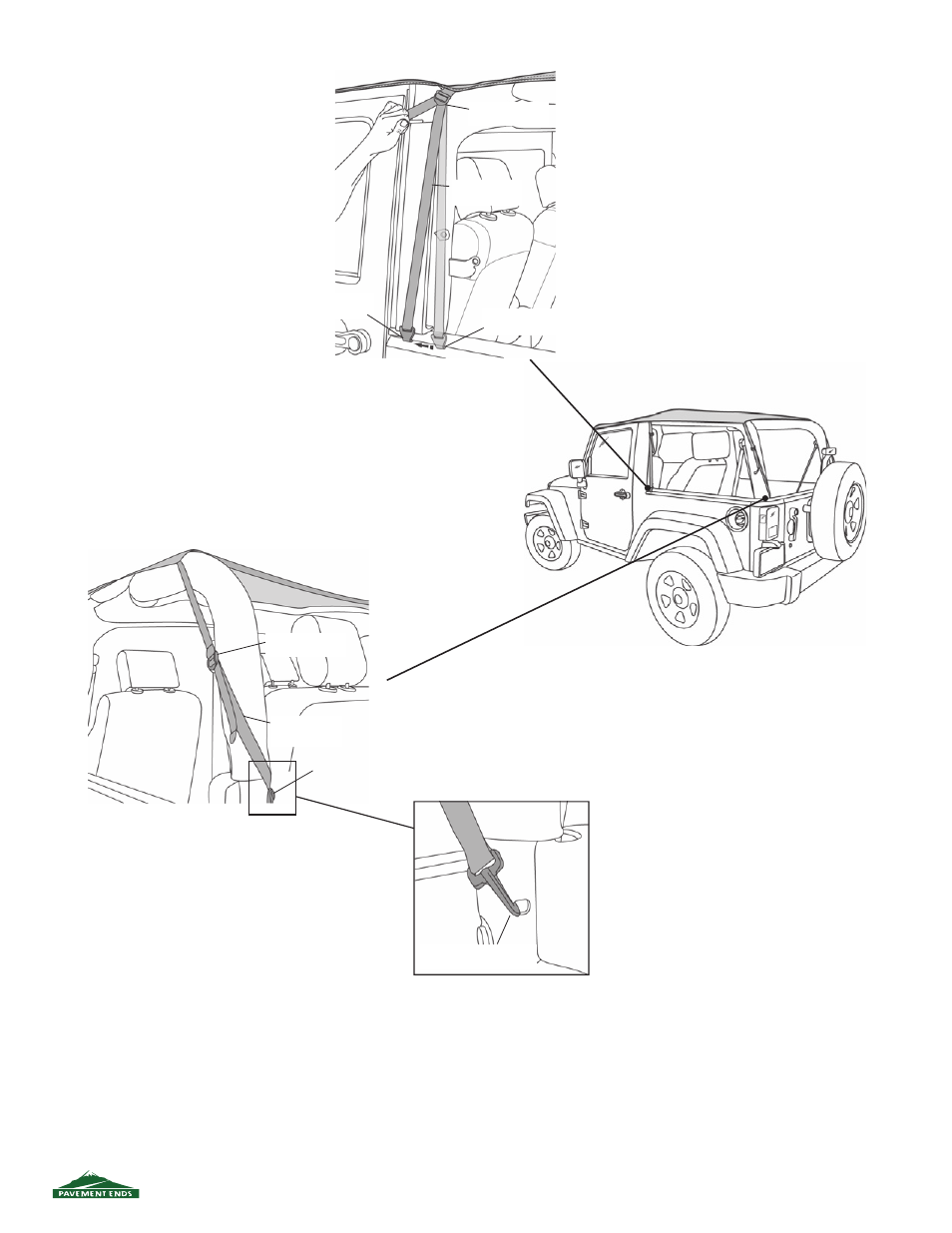

Front Tension
Strap

Thread Strap
through Buckle

Hook Tension
Strap to Beltrail

Slide under
Door Surround

Clip Rear Tension
Strap into Hole in
Sport Bar

Rear Tension
Strap

Thread Strap
through Buckle

Clip Rear Tension Strap
into Hole in Sport Bar
