41525 pg 2 0111 Rev. A
Parts List

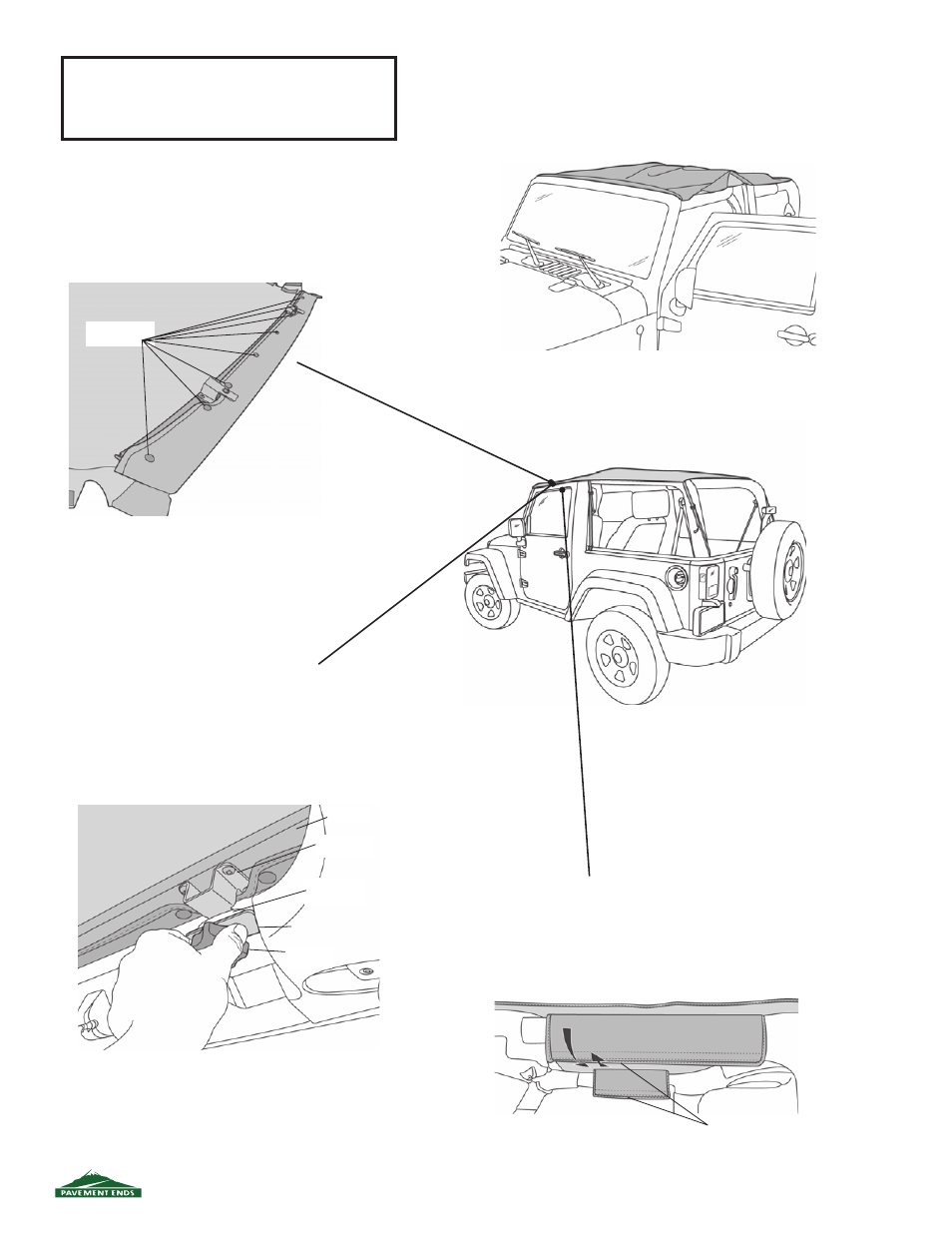

Step One
S NAP S UN C AP TO H EADER
Slide the pocket sewn along the front of the
Sun Cap over the edge of the header and
snap it to the snaps.
Step Three
S ECURE H EADER TO W INDSHIELD
Center the Sun Cap on the vehicle. Place the tabs on
the Header Knob Bases above the footman loops in the
windshield frame. Place a Header Knob Plate under a
footman loop. Install a Header Knob through the plate
and footman loop and thread it into the Header Knob
Base. Repeat this with both Header Knob Bases.
Step Two
D RAPE S UN C AP OVER V EHICLE
Drape the Sun Cap over the vehicle.
Step Four
S ECURE F LAPS
Wrap the fl ap above the door opening around
the horizontal sport bar and fasten the hook
and loop. Repeat on both sides.
Sun Cap Qty - 1
Front Tension Strap, Part Number 424.14 Qty - 2
Rear Tension Strap, Part Number 457.92 Qty - 2
Snap Fabric
to Header
Footman
Loop
Header
Knob Plate
Header
Knob Base
Header
Header
Knob
Wrap Flaps around
bars and fasten
Hook and Loop
