51139 pg 4 Rev. D 0903

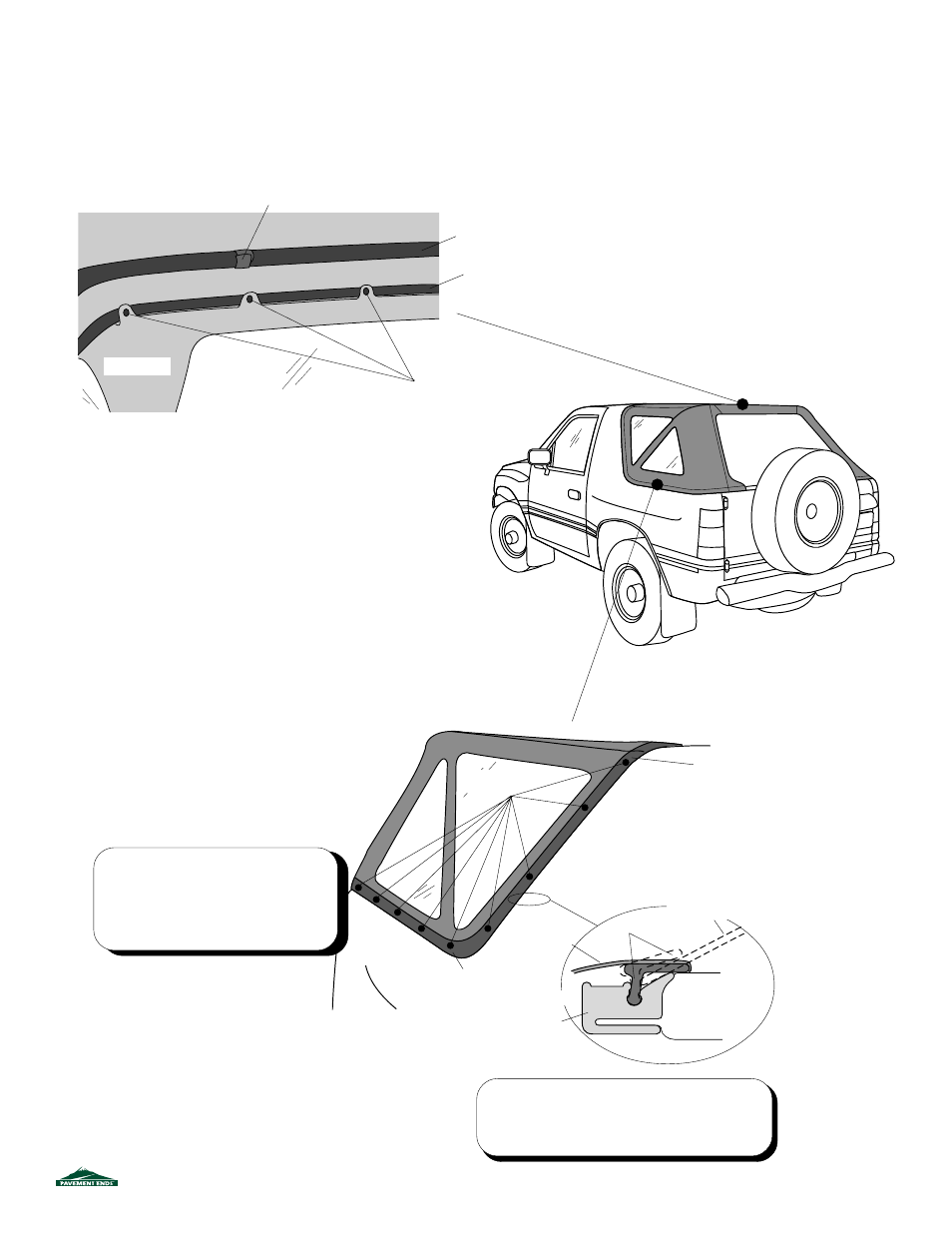

Step Four
Drape the fabric over the bow and gently pull the bow back
into position. Snap the five snaps inside the rear seam to
the rear bow. Then wrap the hook and loop strips around
the front bow.
Rear Window
Rear Bow
Snap to Rear Bow
Fasten Hook and Loop
Strips to each other
Inside of Top
Front Bow
Lift-a-Dots
(Hidden)
Vehicle Body
Note: Make sure the rubber seal is seated in the
channel (not folded over) before fastening the Lift-a-
Dots. Alternate between seating the rubber seal and
fastening the Lift-a-Dots.
Note: The Lift-a-Dot studs may be adjusted
from side to side on the vehicle, if necessary
to match the Lift-a-Dots in the top. Use a
wrench to loosen the studs from inside the
vehicle, underneath the rubber seal and
slide the stud in the direction required.
Step Five
Install the remaining rubber seal and the Lift-a-Dots down the front
and around the corner on the side panel. As before, make sure that
the rubber seal is seated in the channel and not folded over before
fastening the Lift-a-Dots. Alternate between seating the rubber seal
and fastening the Lift-a-Dots.
Rubber Seal
Rubber Seal Detail
Cross Section
Fabric
Channel
Front
Rubber Seal
3 3/4" Plastic Strip -
Use to lever Rubber
Seal into position
