Pavement Ends 51139 Replay - Manual (Page 3)

51139 pg 3 Rev. D 0903

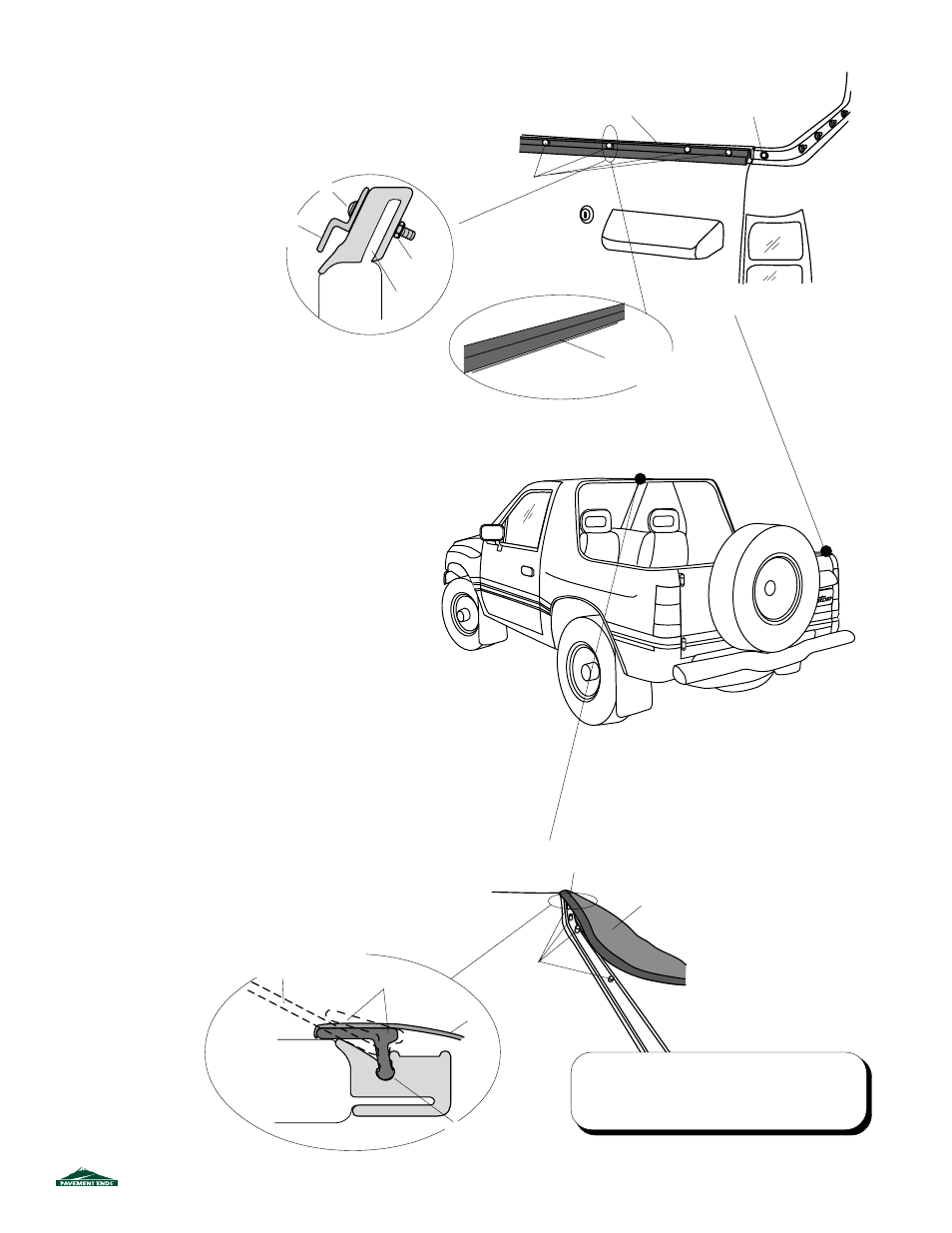

Tailgate Retainer Snap
Bolts and Locknuts
Tailgate Retainer Detail
Cross Section
Step Three
Orient the top fabric on the vehicle with the weatherstripping
and the Lift-a-Dots toward the front. With the bow folded
forward, start in the center along the front of the vehicle and
seat the rubber seal into the channel on the roof. Make sure
the rubber seal is seated in the channel and not folded over. Push
the Lift-a-Dot in the fabric over the stud on the vehicle. Alternate
between seating the rubber seal into the channel and fastening
the Lift-a-Dots across the top of the roof. Do not continue down
the sides at this time.
Front
Front
Fabric
Vehicle Body
Top Fabric
Rubber Seal
Lift-a-Dots
Note: Make sure the rubber seal is seated in the
channel (not folded over) before fastening the Lift-
a-Dots. Alternate between seating the rubber seal
and fastening the Lift-a-Dots.
Step Two
Install Tailgate Retainer on top of tailgate. Place the retainer over
the holes from the turnbuckles and install it with the 9 Bolts and
Locknuts provided. Check the rubber seal to make certain it
returns to the proper position.
Rubber Seal Detail
Make sure rubber seal
returns to position
over bolts
View from Inside of
Vehicle
Tailgate
Locknut
Tailgate
Retainer
Bolt
Channel
Rubber Seal
Rubber Seal Detail
Cross Section
3 3/4" Plastic Strip - Use to
lever Rubber Seal into
position
