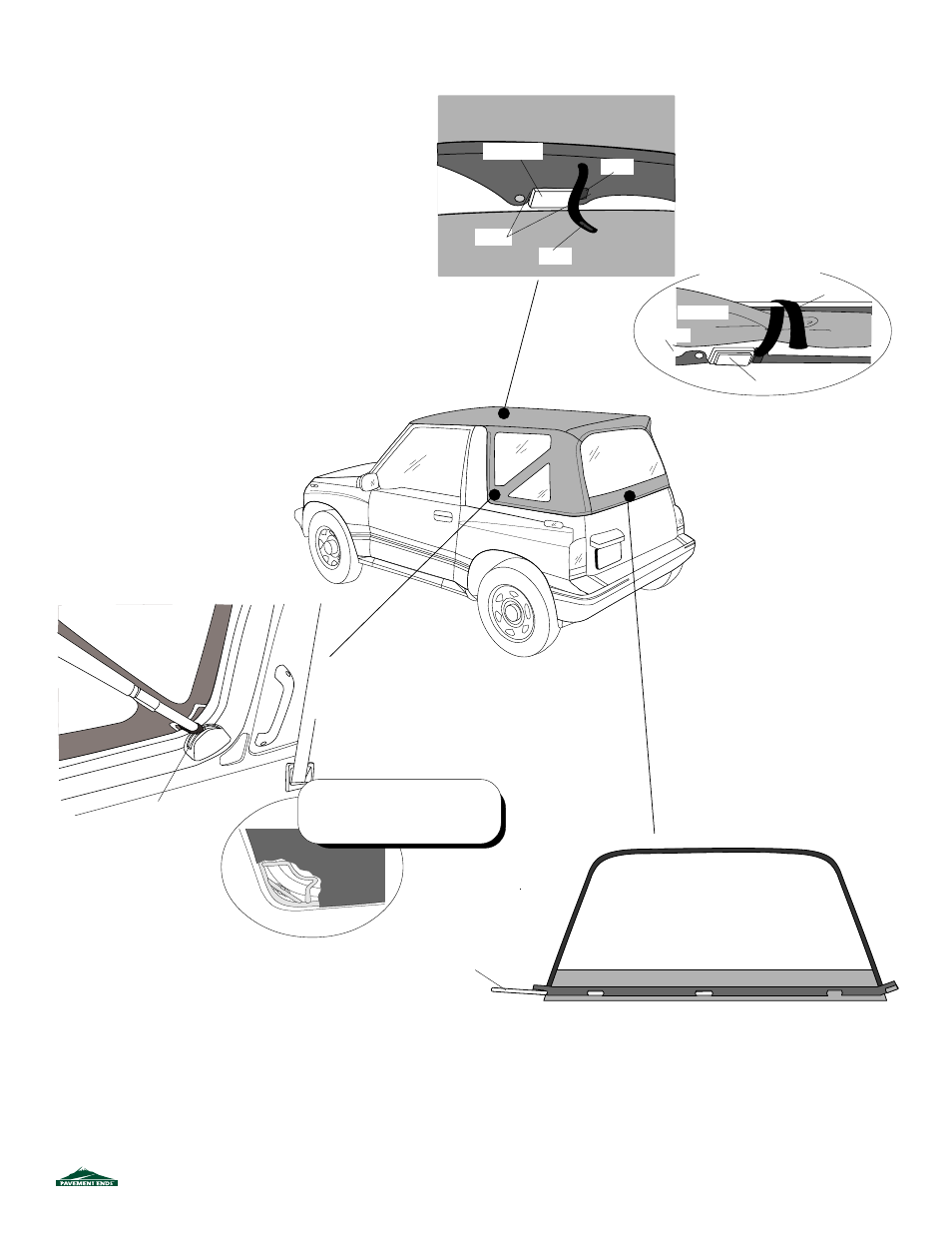

Step Seven
Pull the windshield retainer down and fasten the snaps
inside the top to the studs on the center bar.
The hook and loop strap is to hold the windshield
retainer securely when the sun roof is open. To use the
sun roof, unlock the windshield retainer from the
windshield and open it back, folding the fabric top
underneath. Locate the small slot in the center of the
windshield retainer. Slip the strap through the slot and
fasten the hook to the loop sewn to the center flap.
Sun Roof Open
Strap
Top Fabric
Center Bar
Dome Light
Center Bar
Snaps
Front
Rear
Dome Light
Loop
Hook
Wrap web strap around bow
and snap to itself
Step Eight
Clip the Side Panel Retainer to the
bracket on the vehicle. Wrap the web
strap on the retainer around the bow
and snap the strap to itself.
View from inside
vehicle
Note: To close Side Panel Retainer,
push the retainer into the clip
mounted to the body.
Step Ten
Slip the white fiberglass rod from the original top into the sleeve
along the bottom of the Rear Window.
Step Nine
Close and latch the Windshield
Retainer securely in place.
Rear Window Retainer Rod -
Slide into sleeve
Rear Window
