Pavement Ends 51144 Replay - Manual (Page 6)

51144 pg 6 1206 Rev. C

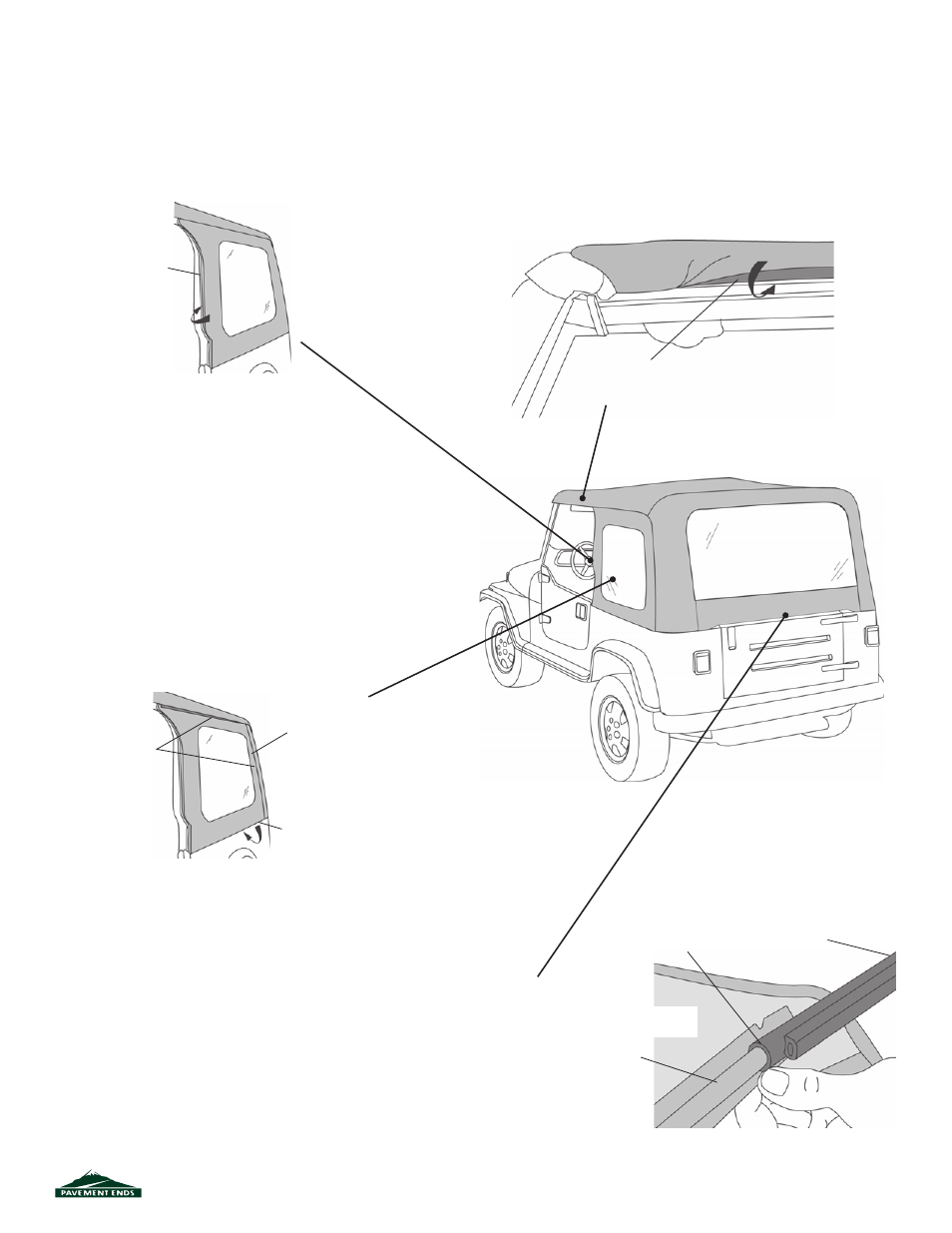

Step Fifteen
S ECURE F RONT OF Q UARTER P ANELS
Roll the plastic along the front of the Quarter
Panel into the channel of the Door Surround
on the vehicle.
Roll Plastic Strip into
channel in retainer
Step Sixteen
S ECURE T OP ABOVE D OOR O PENINGS
Locate the two plastic strips sewn to the sides of
the top, above each door. Slip the strips into the
channel in the Door Surround above the door open-
ing. It is easiest to insert the front plastic strip into
the channel fi rst.
Roll Plastic Strips
into channel above
door opening
Step Seventeen
S ECURE Q UARTER P ANELS
Close the zippers on the Quarter Panels the rest of
the way to the lower rear corner of the panel.
Start at the rear and roll the plastic along the bottom
of the panel into the retainer on the vehicle. Then
fasten the hook and loop strips along the top and
rear of the panel to the top.
Roll Plastic Strip into
channel in retainer
Fasten Hook and
Loop Strips
Close Zipper
Step Eighteen
I NSTALL T AILGATE B AR ON R EAR W INDOW
Remove the Rear Window from the box and
lay it fl at with the backing side up. Locate the
Tailgate Bar set aside in Step One. The bar
has a “C” shaped channel, when viewed from
the end. Orient the bar with the round seal
down and slide the “C” channel on the retainer
onto the tubed strip sewn to the backing side
of the Rear Window.
Rear Window -
Backing Side
Tailgate Bar Tailgate Retainer
Channel
Tubed
Strip
