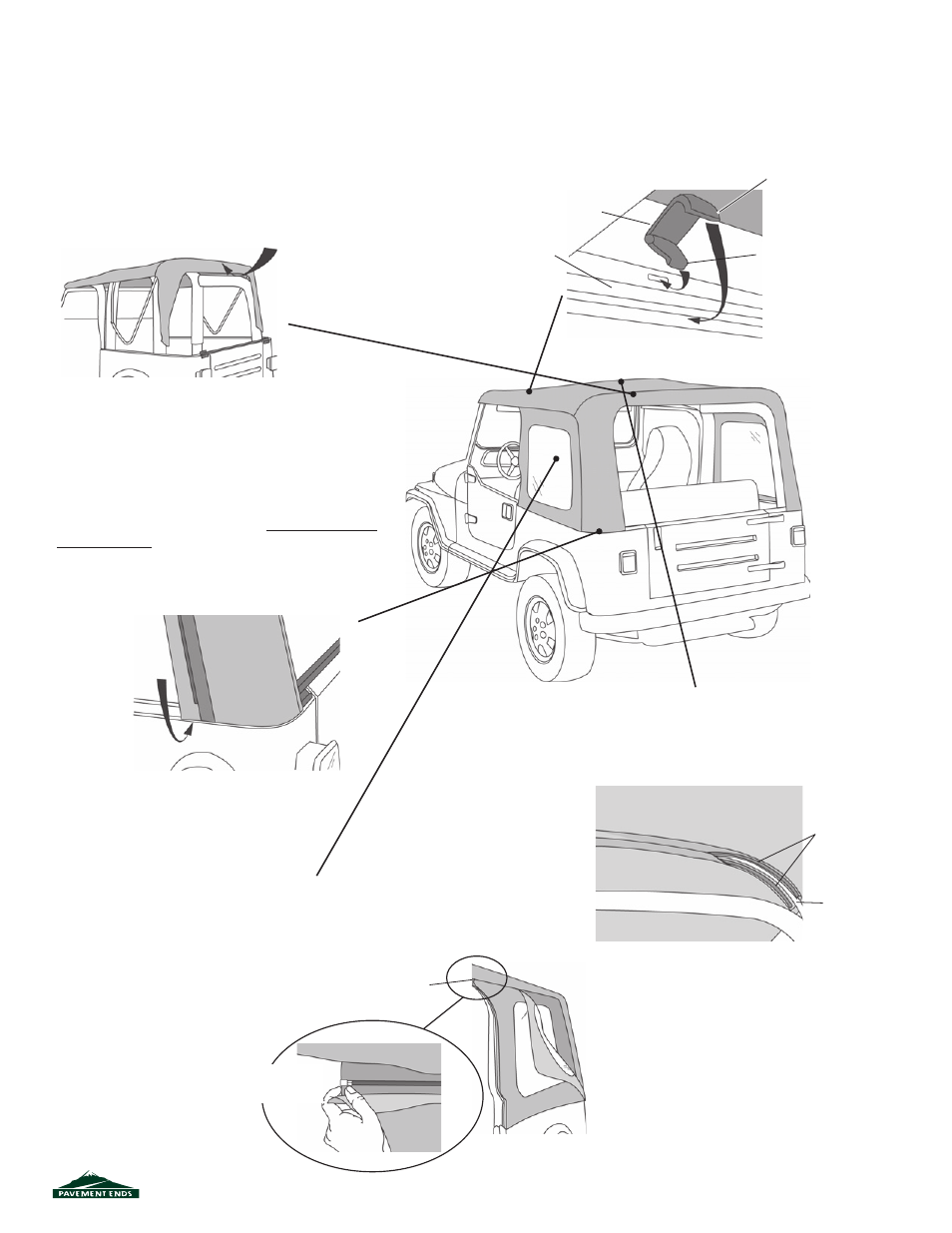

Step Ten
S NAP T OP TO R EAR B OW
Raise the header and bow assembly toward the
windshield and into position.
Inside the top, snap the fabric to the Rear Bow
(six snaps).
Snap fabric to Rear Bow
Step Twelve
S ECURE R EAR C ORNERS
Make sure that the Center Bow is centered in the
hook and loop fl ap inside the top. Do not fasten the
fl ap at this time.
Pull down gently on the Rear Bow and work the
plastic sewn to the rear corners of the top into the
retainer on the vehicle.
Pull down gently
on the Rear Bow
and slip plastic into
retainer
Step Eleven
S ECURE H EADER TO W INDSHIELD
Close the header latches to secure the front of the top to the windshield. Catch
the hook in the slot in the windshield frame and then close the lever over it so
that it lays fl at against the windshield frame.
Windshield
Frame
Windshield
Header Latch
Close lever over top of hook to
lay fl ush with windshield frame
Catch hook
in slot
Step Thirteen
S ECURE C ENTER B OW
Wrap the hook and loop fl ap inside the top
around the Center Bow and fasten it to itself.
View from inside vehicle
Sport Bar
Wrap fl ap around
bow and fasten
hook and loop
Center Bow
Step Fourteen
A TTACH Q UARTER P ANEL Z IPPERS
Locate the left and right Quarter Panels and orient
them with the zipper along the top and rear of the
panel. Start the zipper at the front top corner of
the Quarter Panel, next to the door. Hold the end
of the zipper and close the zipper slider 10" - 12"
along the top of the panel.
Detail of Quarter
Panel
Start zipper at front
and close 10" - 12"
Hold end of
zipper while
starting slider
