Tools Needed
Phillips Screwdriver
Parts List
Fabric Top Qty - 1
Quarter Window, Right Qty - 1
Quarter Window, Left Qty - 1
Rear Window Qty - 1

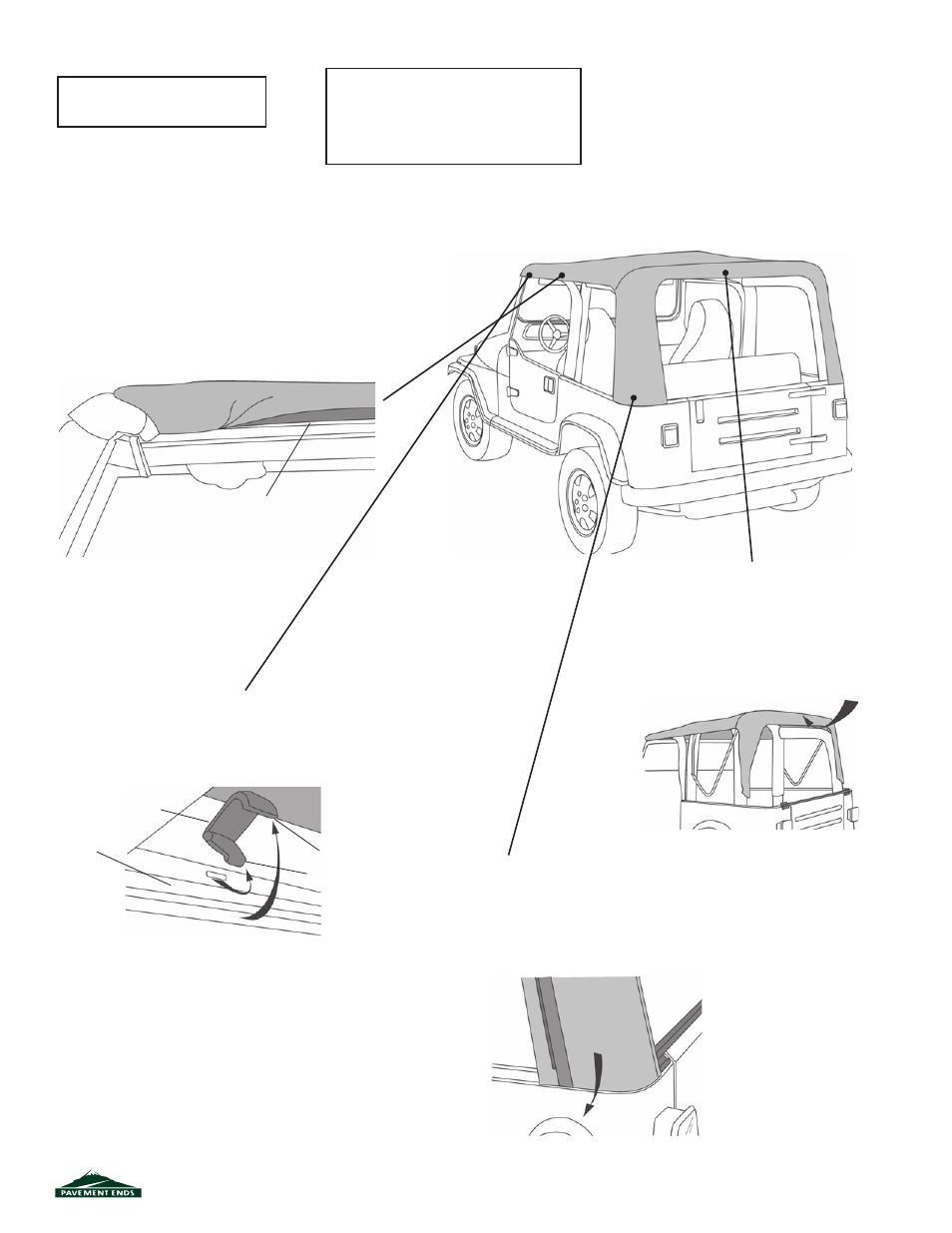

Step One
R EMOVE Q UARTER W INDOWS AND R EAR W INDOW
Remove the Quarter Windows and the Rear Win-
dow. Remove the metal Tailgate Bar from the bottom
of the Rear Window and set it aside.
Release the plastic strip sewn to the top above the
doors. Pull down and out to slip the plastic out of the
channel.
Release Plastic Strips
from Retainers
Step Two
R ELEASE W INDSHIELD L ATCHES
Release the latch that secures the header to the
windshield. Pull up on the lever and then down
and out to release the hook from the slot in the
windshield frame.
Pull lever up
Windshield
Frame
Header
Latch
Release hook
from slot Step Three
R ELEASE R EAR C ORNERS
Release the rear corners of the top. Pull gently
down and then out to release the plastic strip from
the retainer on the vehicle.
Pull down and then out
to release the fabric from
the retainer
Step Four
U NSNAP R EAR B OW
Unsnap the fabric from the rear
bow and allow the bow to drop
onto the tailgate.
Unsnap the fabric
from the rear bow
