Rev. D 0210 44583 pg 5
Step Two
I
NSTALL
C
HRISTMAS
T
REE
F
ASTENER
If you have removed an old Bestop
top and windshield retainer, install a
Christmas Tree Fastener in each hole
in the windshield frame.

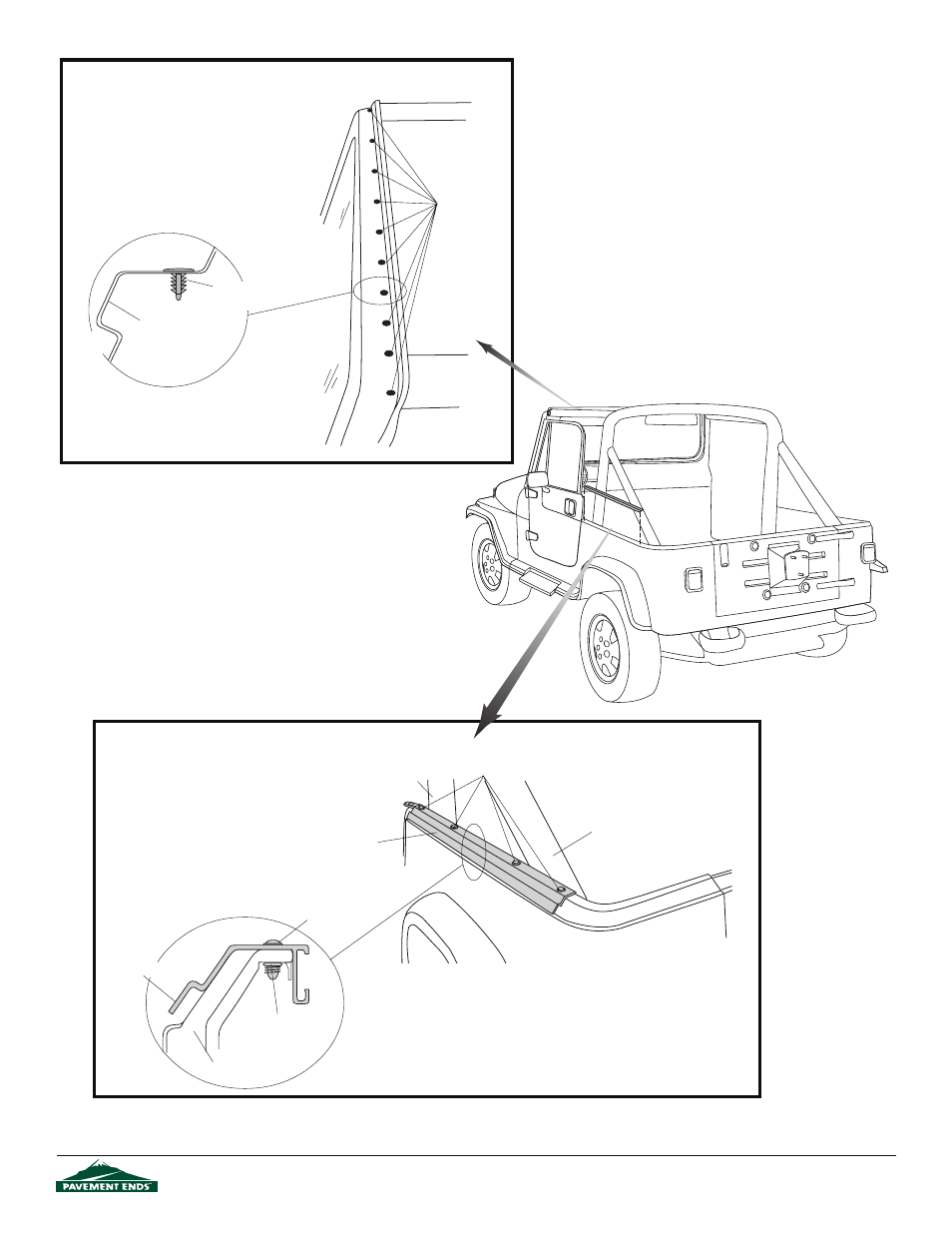

Christmas Tree Detail
Cross Section
Windshield Frame
Front of
Vehicle
Christmas Tree
Fastener
Windshield
Front of Vehicle
Christmas
Tree Fasteners
Front
5/16" TORX Bolt
Sport Bar
Side Belt
Rail
Step Three
I
NSTALL
B
ELT
R
AILS
Install the Left and Right Side Belt
Rails on each side of the vehicle. Use
the existing holes, four 5/16" TORX
Bolts and four Tapping Plates on each
side. Use a #35 TORX Socket to install
the TORX Bolts.
5/16" TORX
Bolt
Tapping Plate
Side Belt Rail
Body Panel
Inside of Vehicle
Side Belt Rail Detail
Cross Section
Sport Bar
