Pavement Ends 44583 Flip Top - Manual (Page 3)

Rev. D 0210 44583 pg 3
CJ7 Only - Wrangler Adjustment on next page
WARNING
Note: If you are replacing an old soft top, be certain that all parts of the old top are removed, including the windshield
retainer. Old metal parts are not compatible with the new Supertop. Using parts other than those provided in your
Supertop kit can result in personal injury and/or damage to the vehicle and soft top.
Adjusting Screws -
Some Models may
require a #40 Torx
Windshield
Clamp Detail
Improper windshield adjustment will result in poor fitting top and doors, causing
looseness or undue strain on the top.

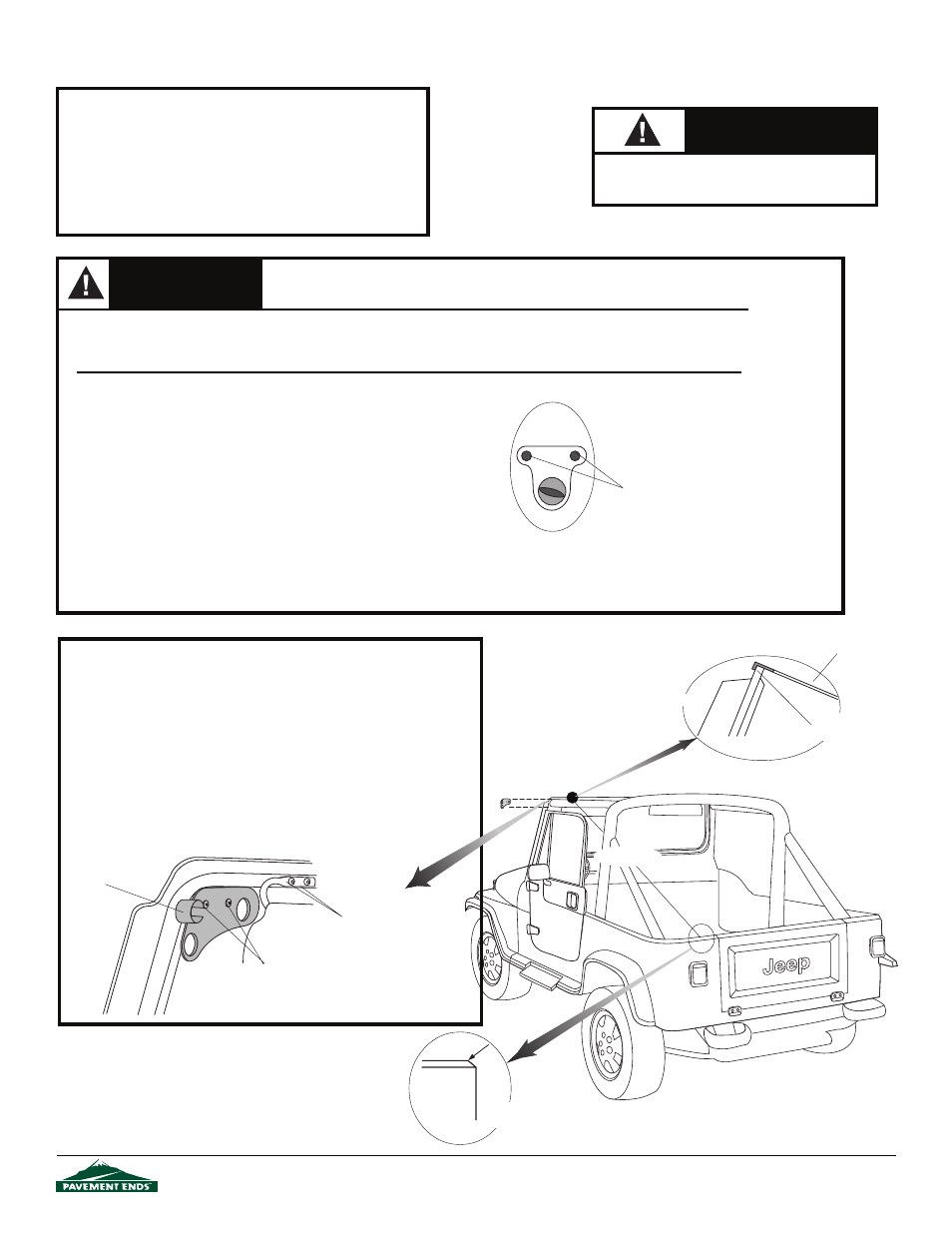

Windshield Measurement
Before installing the top, check the windshield measurement.
The distance from the top lip of the windshield to the top outer
edge of the body must be 75 1/8" on both sides of the vehicle.
Measure 4"-6" inside the doors.
CJ7 Windshield Adjustment
If necessary, loosen the two screws in the Windshield Clamps at
the base of the windshield on each side of the vehicle. Adjust the
windshield forward or back, use a shim if needed to position the
windshield, and tighten the screws.
Safety glasses should be worn at all
times while installing this product.
Caution
Tools Needed - CJ7
1/8", 5/32", 3/8" Drill Bit Flat Screwdriver
and Drill Motor Phillips Screwdriver
Center Punch Hammer
#40 Torx - Optional Pencil
t Adjustible Wrench e h c t a R
Safety Glasses 10' Tape Measure
Front
Measurement
Detail
Top lip of
windshield
Step One
CJ7: After adjusting the windshield, install the Windshield
Brackets. If present, remove the outboard sun visor fasteners on
both sides of the windshield frame. Place the Windshield
Brackets flush with the frame on the upper corners of the
windshield. Use the bracket as a template to mark, center punch
and drill two 5/32" holes for each bracket. Mount each bracket to
the windshield frame using two #10 x 1/2" Pan Head Sheet Metal
Screws. Reinstall sun visor brackets.
Windshield
Bracket
#10 x 1/2" Pan Head
Sheet Metal Screws
Sun Visor Mount -
#20 Torx bolt
75 1/8"
Tape Measure
Rear point of
measurement on body
