Brinkmann 810-3810-S User Manual
Page 7
6

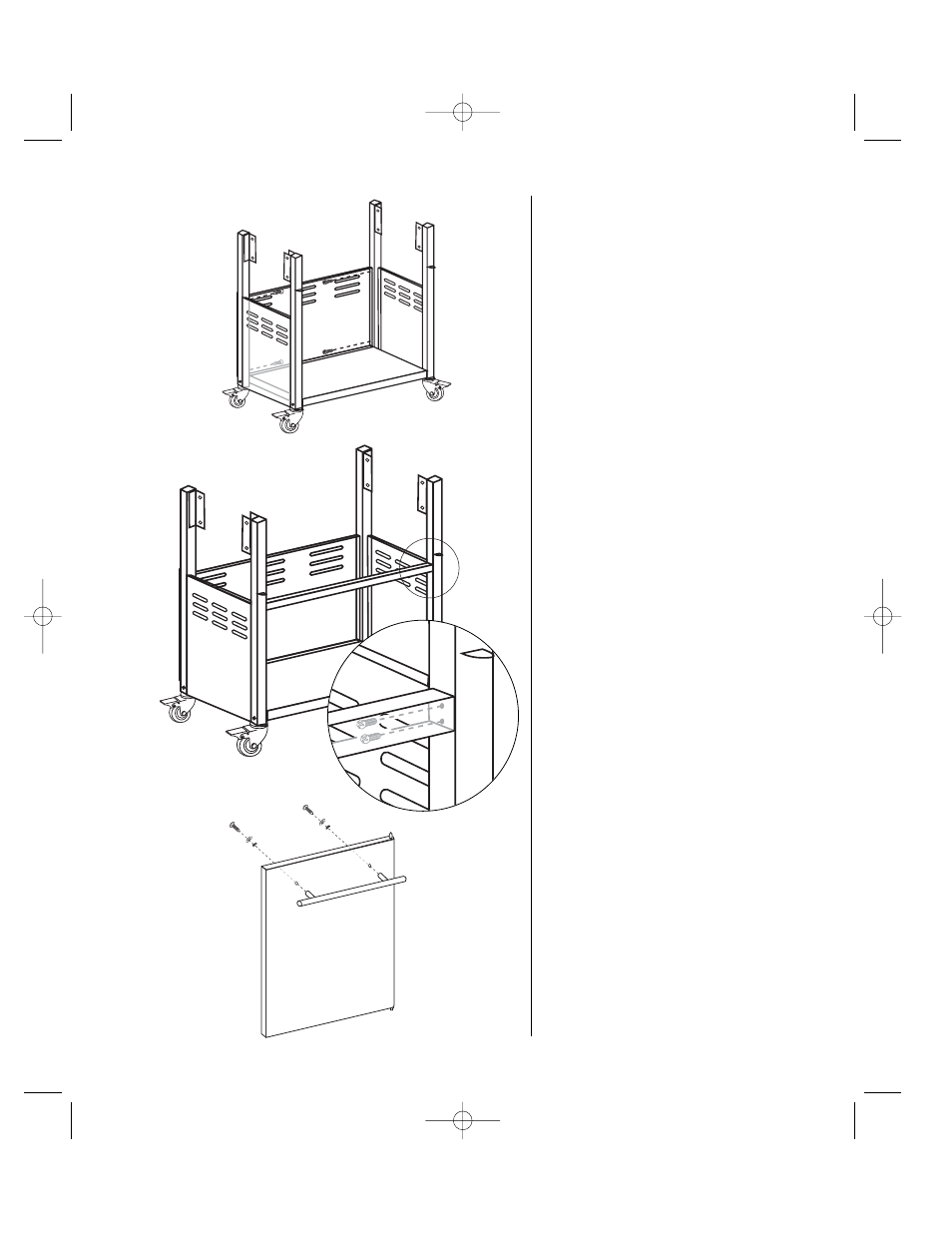

Step 4
Attach rear panel to cart assembly by using
four M6 x 15mm bolts.
Step 5
Attach door frame bracket to front of cart
assembly by using four M5 x 10mm bolts.
Step 6
Install door handle through holes in door
by using two M5 x 10mm bolts,
M5 washers and M5 spring washers.
Repeat for other door.
INSTR_810-3810-S.qxd 11/16/07 9:58 AM Page 7
