Choose a good, cleared assembly area and get a
friend to help you put your grill together. Lay
cardboard down to protect grill finish and
assembly area. Turn the grill on its side to begin
assembly.
Step 1

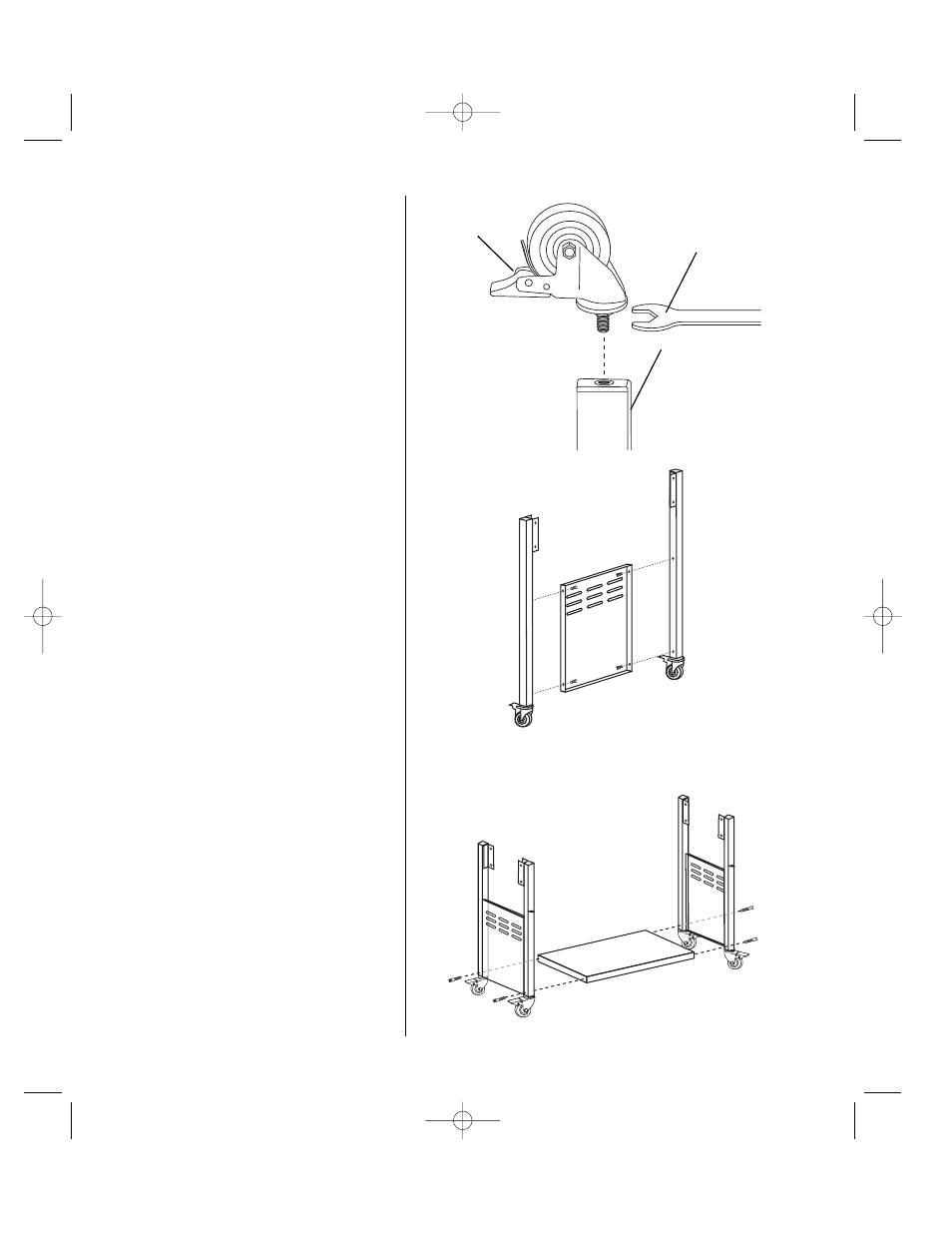

Attach locking casters to bottom of each leg.
Tighten caster bolts securely using hex nut
wrench provided in parts pack.
Step 2
Attach left side panel to left front leg and left
rear leg by using four M6 x 15mm bolts.
Repeat for the right side panel and right legs.
Note: Front legs have door hinge brackets
pre-attached.
Step 3
Attach bottom panel to the left and right panel
assemblies by using four M6 x 50mm bolts.
Locking
Casters
Legs
Hex Nut Wrench
