8-47
SMA 2.9
CHaRaCTERISTICS
ElECTRICal CHaRaCTERISTICS
Impedance 50Ω
Frequency range DC - 40 GHz DC - 46 GHz
V.S.W.R. < 1.05 + 0.005 F (GHz)
Insertion loss 0.03 √ F (GHz)
RF leakage – 90 dB max
Insulation resistance ≥ 5000 mΩ
Contact resistance
• outer conductor
• inner conductor
≤ 2 mΩ
straight ≤ 3 mΩ
hermetic ≤ 7 mΩ
Voltage rating 350 V(RMS)
Dielectric withstanding voltage 750 V(RMS)
MECHaNICal CHaRaCTERISTICS
Mechanical endurance 500 matings
Force to engage and disengage ≤ 23 N cm (2 in/lbs)
Mating torque 80 to 115 N cm (7 to 10 in/lbs)
Coupling nut retention force ≤ 272 N (61 lbf)
Cable retention force • .085"
• .141"
135 N (30 lbf)
270 N (60 lbf)
Contact captivation 28N (6.3 lbf)
ENVIRONMENTal CHaRaCTERISTICS
Temperature range -65°C / + 165°C -65°C / +200°C
Thermal shock MIL STD 202, method 107, condition B
High temperature test MIL STD 202, method 108
Corrosion (salt spray) MIL STD 202, method 101, condition B, 5 %
Vibration MIL STD 202, method 204, condition D, 20g
Shock MIL STD 202, method 213, condition I, 100g
Moisture resistance MIL STD 202, method 106
MaTERIalS aND PlaTINg
Material Plating
Bodies Stainless steel Passivated
Center contacts Beryllium copper Gold plated
Gaskets Silicone rubber
Insulators
Ultem (Ultem technology)
Kapton (Kapton technology)
All dimensions are given in mm (inch)
Test/characteristics
Values/remarks
ULTEM technology KAPTON technology

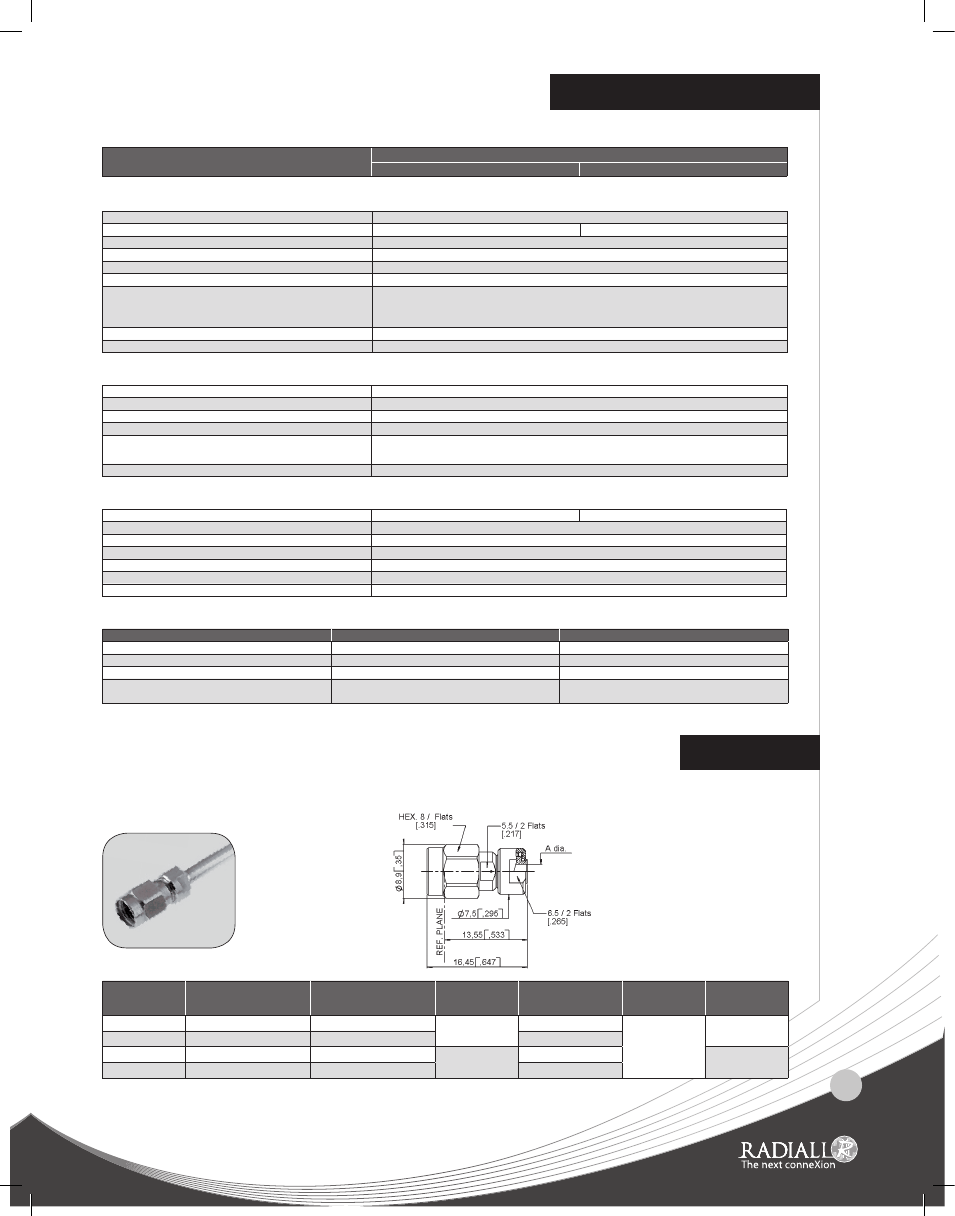

PlUgS
Packaging: unit
Cable group
Cable
group dia.
Part number Insulator Dimension A (mm)
Captive center
contact
Frequency
range
RG405 .085" microporous R127 800 001
ULTEM
2.25
yes
DC - 40 GHz
RG402 .141" microporous R127 800 101 3.66
RG405 .085" microporous R127 052 001
KAPTON
2.2
DC - 46 GHz
.116" microporous R127 055 001 3.0
STRaIgHT PlUgS, SOlDER TYPE FOR MICROPOROUS SEMI-RIgID
CaBlES
To download data sheets and assembly instructions, visit www.radiall.com & enter the part number in the Search box.
bold
part numbers represent products typically in stock & available for immediate shipment.
See page 8 and 9 for packaging information.
