8-12
SMA

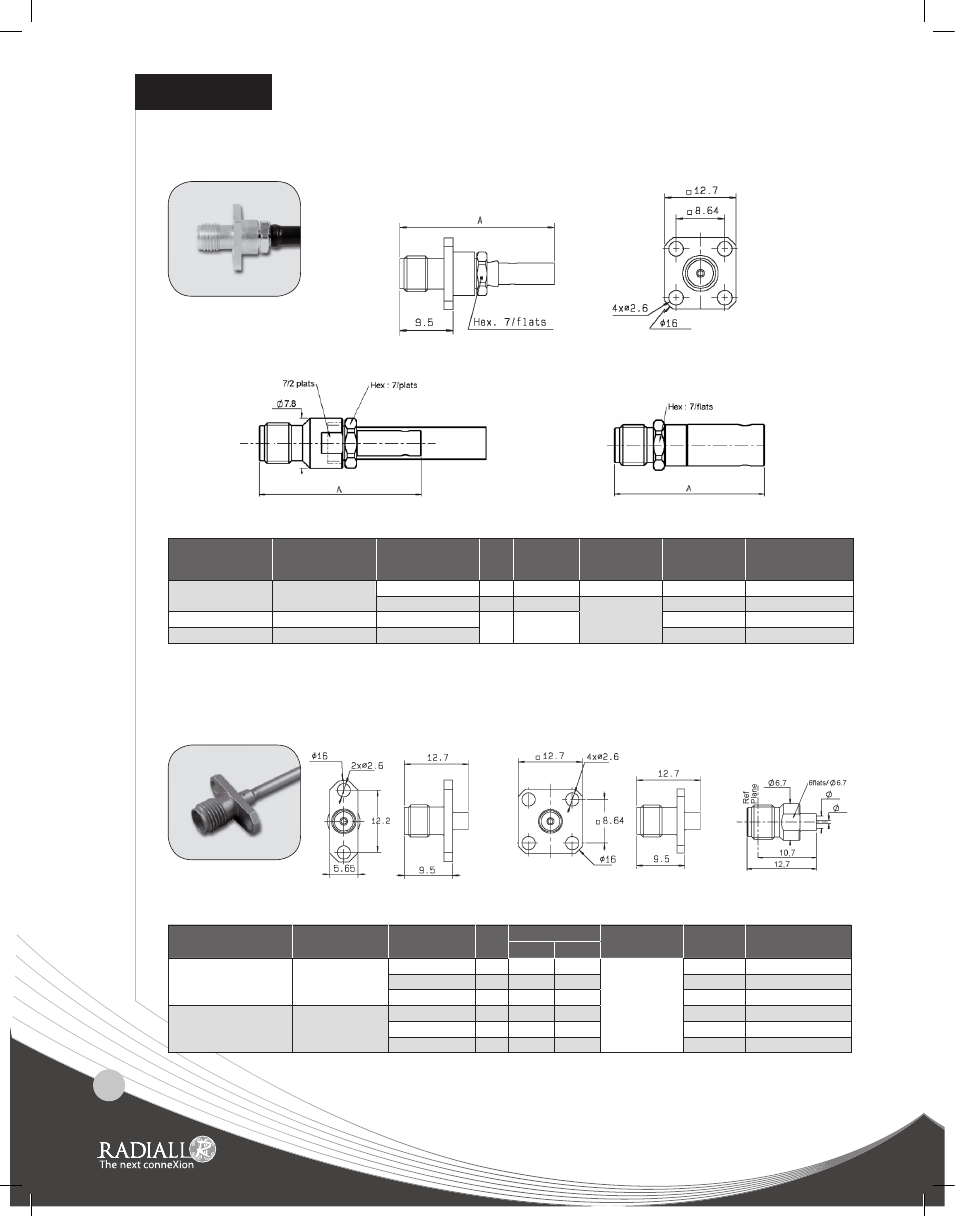

STRaIgHT JaCKS CRIMP TYPE FOR FlEXIBlE CaBlES
STRaIgHT JaCKS SOlDER TYPE FOR SEMI-RIgID CaBlES
fig. 1
Cable group
Cable
group dia.
Part number
(gold)
Fig
Dimensions
A (mm)
Captive center
contact
Panel
drilling
Note
RG174/RG316 2.6/50/S
R125 236 000 2 25.05 yes Crimp or solder
r125 272 000 1 27.5
no
P03 Square flange
RG58/RG141 5/50/S R125 237 000
3 23.1
RG142/RG223/RG400 5/50/D R125 238 000
Cable group Cable group dia.
Part number
(gold)
Fig
Dimensions Captive center
contact
Panel
drilling
Note
A (mm) B (mm)
RG405 .085“
r125 222 000 3 0.65 2.25
no
r125 252 000 1 P02 2 hole flange
r125 256 000 2 P03 square flange
RG402 .141"
r125 225 000 3 0.95 3.65
R125 251 000 1 P02 2 hole flange
r125 255 000 2 P03 square flange
JaCKS
A
B
To download data sheets and assembly instructions, visit www.radiall.com & enter the part number in the Search box.
bold part numbers represent products typically in stock & available for immediate shipment.
See page 8 and 9 for packaging information.
fig. 1 fig. 3 fig. 2
fig. 2 fig. 3
