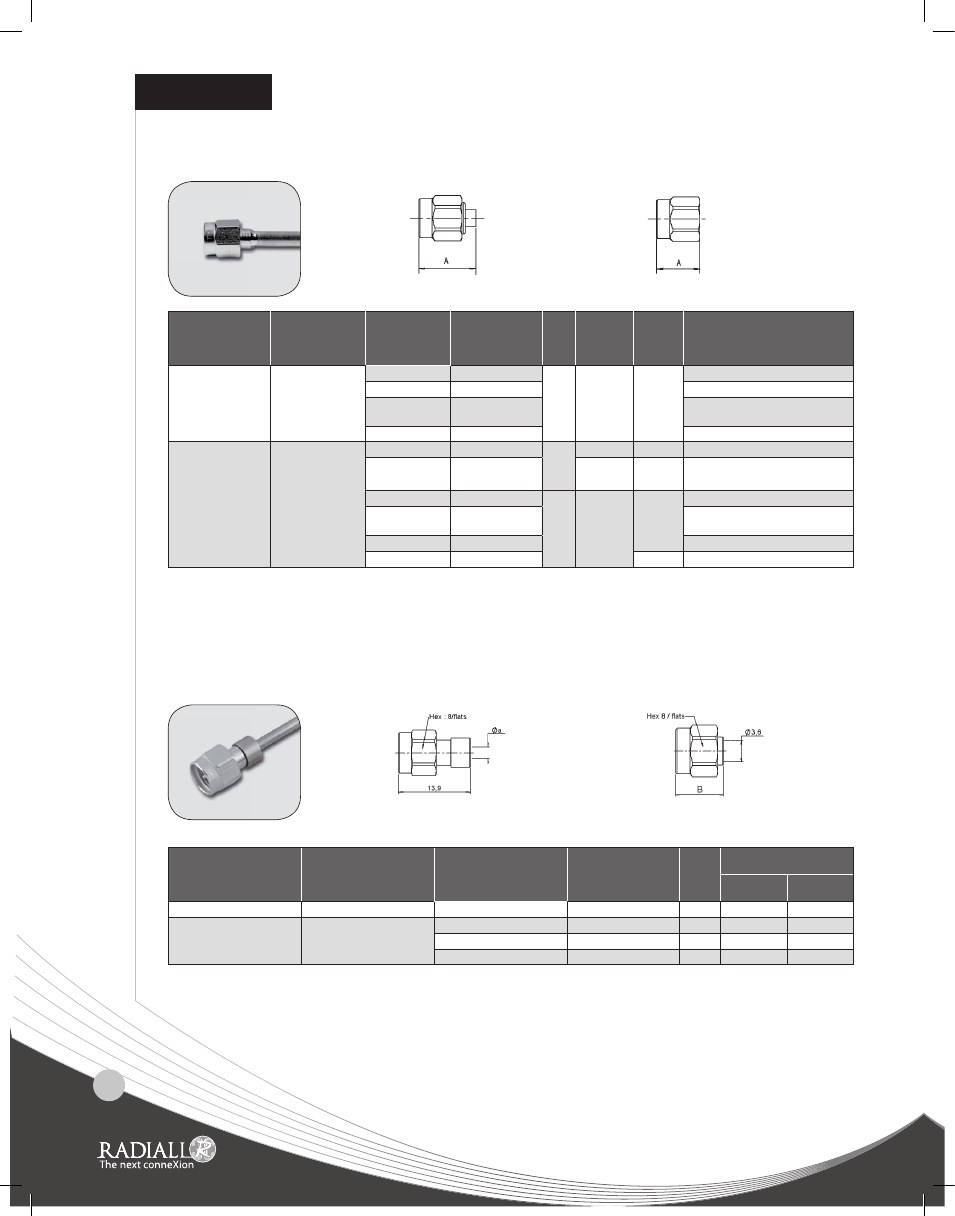

Northern Connectors Radiall SMA Series Coaxial Connectors - Manual (Page 10)

8-10
SMA
STRaIgHT PlUgS SOlDER TYPE FOR SEMI-RIgID CaBlES
STRaIgHT PlUgS CRIMP TYPE FOR SEMI-RIgID CaBlES
fig. 1
fig. 1
fig. 2
fig. 2
Cable group Cable group dia.
Part number
(gold)
Part number
(gold/passivated
coupling nut)
Fig
Dimensions
A (mm)
Captive
center
contact
Note
RG405 .085"
r125 052 000 R125 052 002
1 11.1 no
Single piece body
R125 052 170 Loose parts
R125 052 500
Retractable coupling nut/
single piece body
R125 052 702 DC-27 GHz Single piece body
RG402 .141"
r125 054 000 R125 054 002
2
8.5 Without center contact
R125 054 500 7.5
Without center contact/
retractable couplingt nut
r125 055 000 R125 055 002
1 11.2
no
Single piece body
R125 055 500
Retractable coupling nut/
single piece body
R125 055 702 DC-27 GHz Without center contact
R125 057 002 Without center contact
Cable group Cable group dia.
Part number
(gold)
Part number
(gold/passivated
coupling nut )
Fig
Dimensions
A (mm)
 a b
RG405 .085" R125 052 901 1 2.2
RG402 .141"
R125 053 901 2 8.25
R125 054 900 r125 054 901 2 9.7
R125 055 901 1 3.64
PlUgS
To download data sheets and assembly instructions, visit www.radiall.com & enter the part number in the Search box.
bold part numbers represent products typically in stock & available for immediate shipment.
See page 8 and 9 for packaging information.
