DCA-500SSK — PARTS AND OPERATION MANUAL (STD)— REV. #1 (04/14/01) — PAGE 39
Reading the Output Terminal Gauges
The gauges and knobs on the control panel DO NOT effect
the generator output. They are to help the operator observe
how much power supply is produced at the UVWO legs.
To read the output at the U-W legs, place the AC Voltmeter
Change-over switch to the W-U position and the AC ammeter
Change-over Switch to the U or W position to read the output
on the selected leg.
DCA-500SSK — OUTPUT TERMINAL

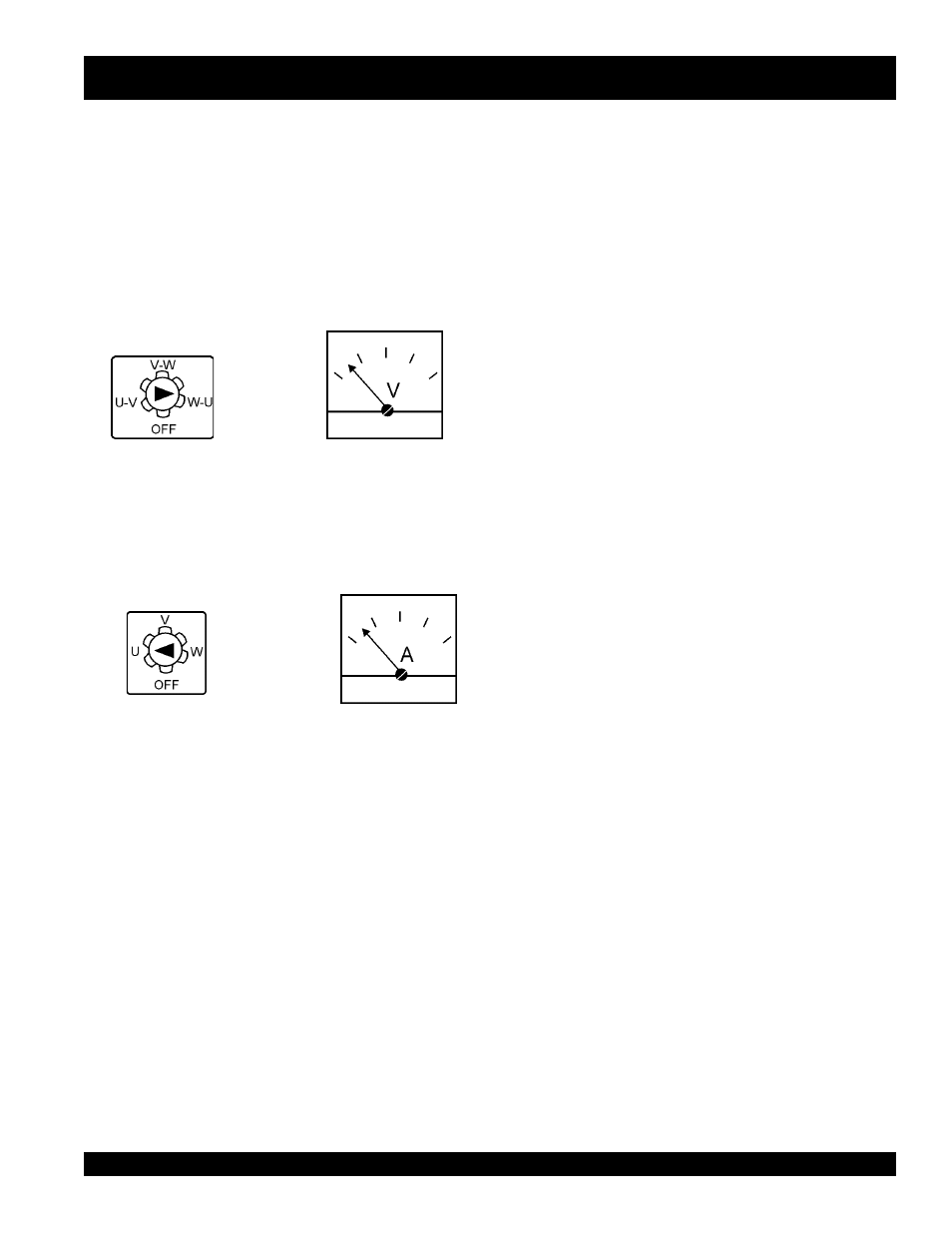

Figure 15. AC Voltmeter
Change-Over Switch
(Reading the W-U leg
on the output terminal
Panel
Figure 17. AC Ammeter
Change-Over Switch
(Reading the W-U leg
on the output terminal
Panel
Figure 16. AC
Voltmeter Gauge
(Voltage reading on
W-U lug)
Figure 18. AC
Ammeter Gauge
(Amp reading on U
lug)
