page 24 — DCa150SSI/DCa150SSIu 60 hz gen. • operatIon anD partS manual — rev. #0 (11/23/09)
OUTPUT TErMINAL PANEL fAMILIArIzATION
connecting Loads
Loads can be connected to the generator by the
output
terminal lugs or the convenience receptacles (Figure 11).
make sure to read the operation manual before attempting
to connect a load to the generator.
To protect the output terminals from overload, a 3-pole, 400
amp
main circuit breaker is provided. make sure to switch
all circuit breakers to the oFF position prior to starting
the engine.

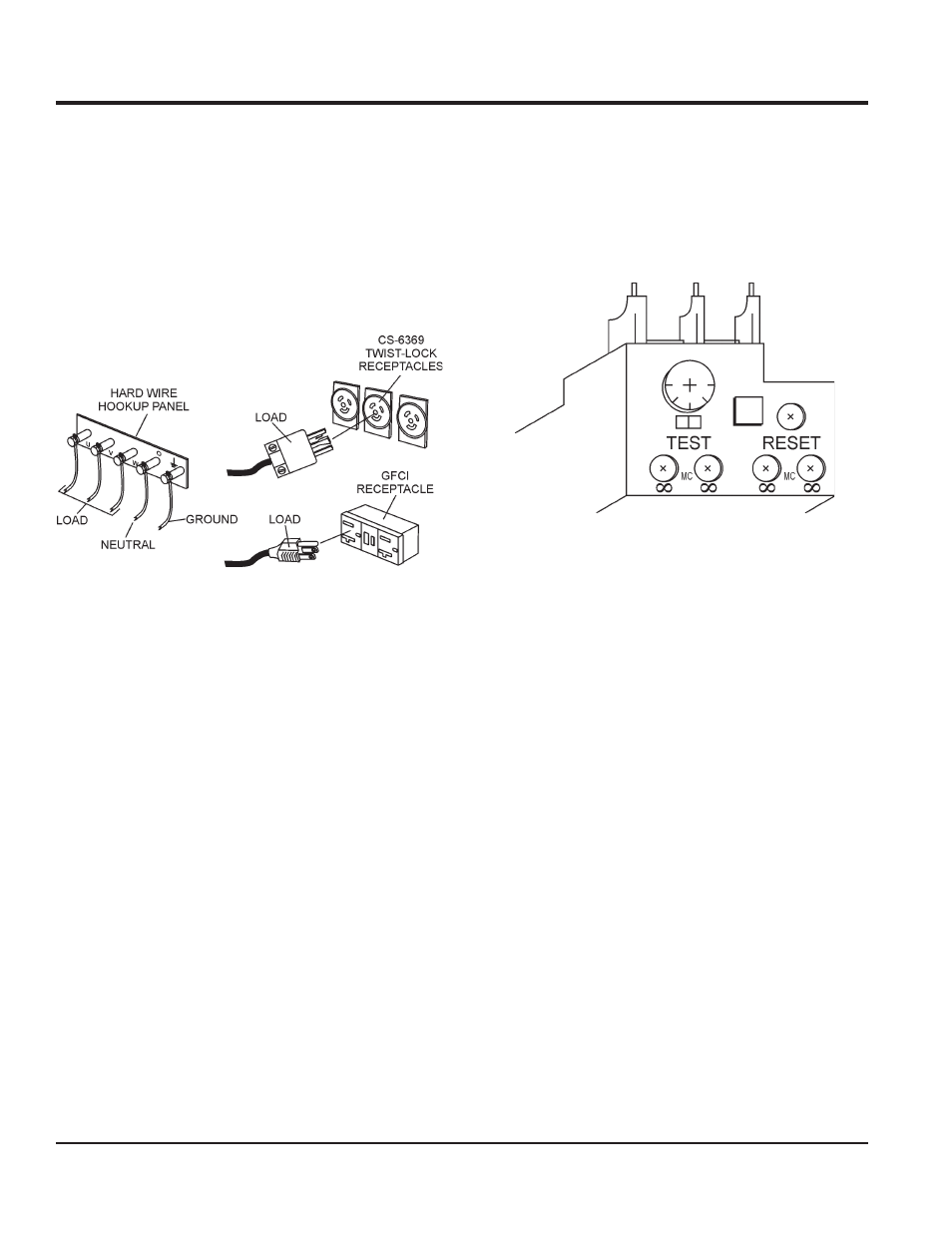

Connecting Loads
figure 11.
Over current Relay
An
over current relay (Figure 12) is connected to the main
circuit breaker. In the event of an overload, both the circuit
breaker and the over current relay may trip. If the circuit
breaker can not be reset, the
reset button on the over
current relay must be pressed. The over current relay is
located in the control box.
Over Current relay
figure 12.
