DCa150SSI/DCa150SSIu 60 hz gen. • operatIon anD partS manual — rev. #0 (11/23/09) — page 13

DIMENSIONS

Dimensions

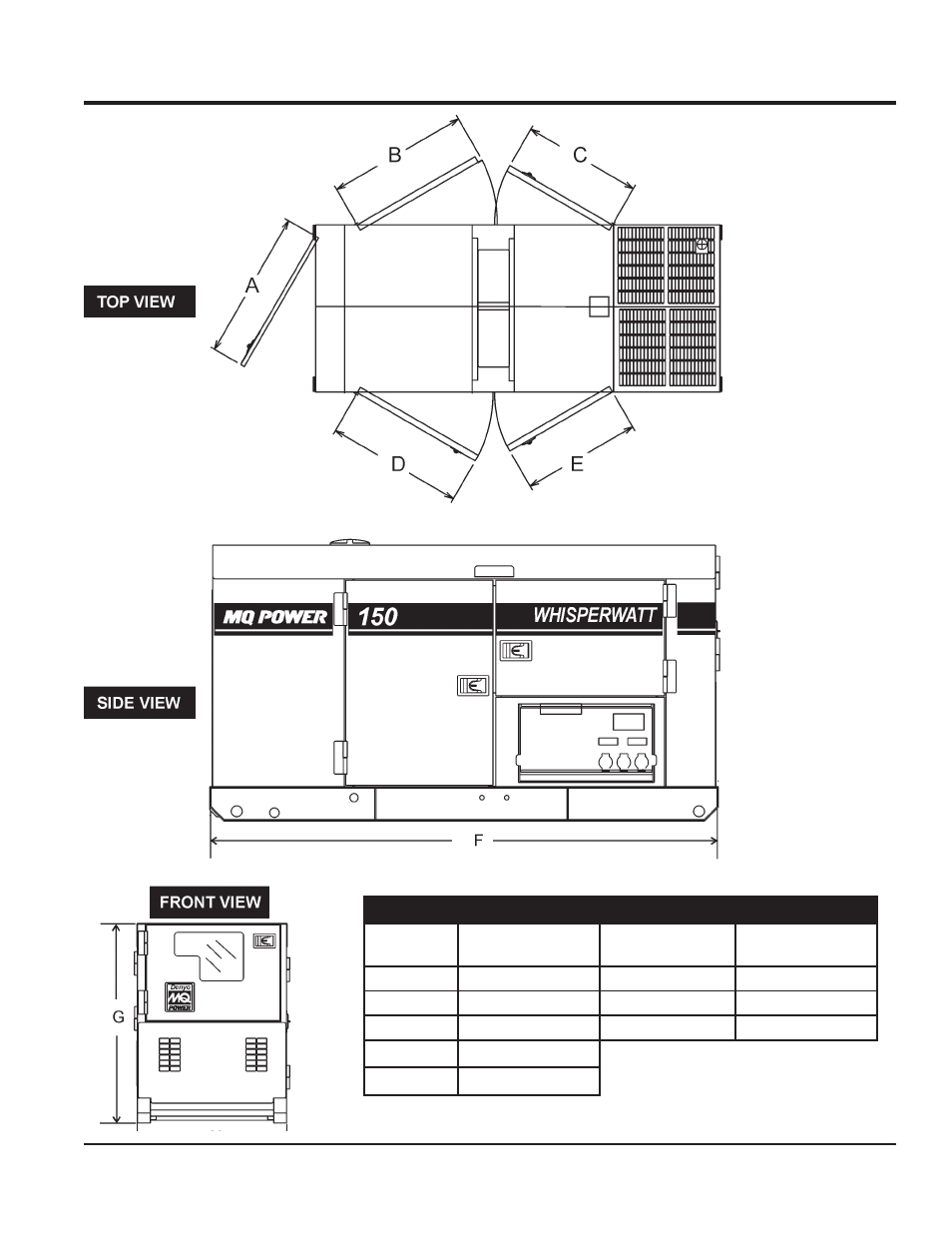

figure 1.

Dimensions

table 3.

reference

letter

Dimension in. (mm)

reference letter

Dimension in. (mm)

A

42.13 in. (1070 mm.)

F

133.86 in. (3400 mm.)

B

37.00 in. (940 mm.)

G

59.06 in. (1500 mm.)

c

45.67 in. (1160 mm.)

H

47.24 in. (1200 mm.)

D

37.00 in. (940 mm.)

E

45.67 in. (1160 mm.)
