DCA-70SSJU3 (60 Hz) — OPERATION AND PARTS MANUAL — REV. #0 (05/10/06) — PAGE 47

1

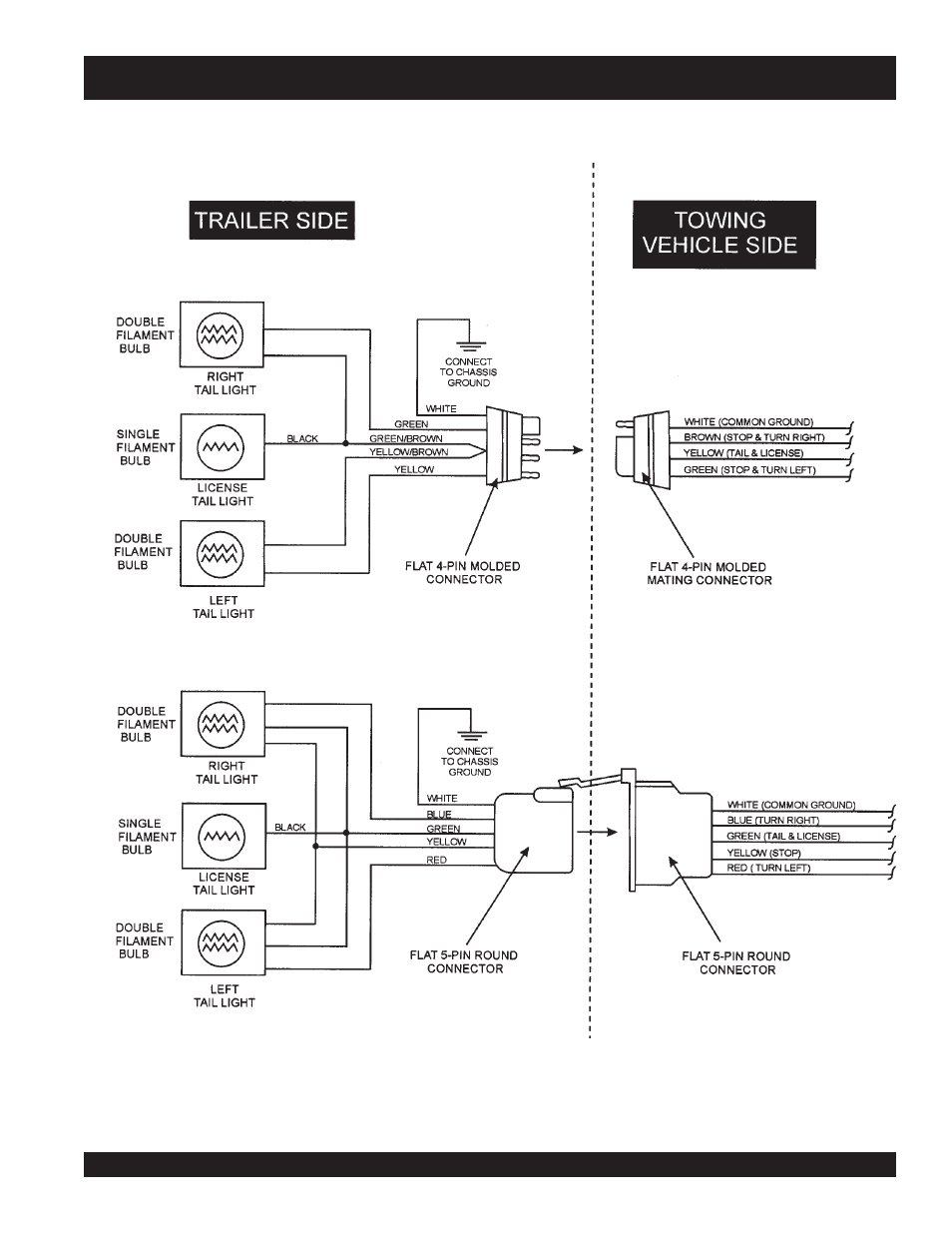

Figure 60. Trailer/Towing Vehicle Wiring Diagram

DCA-70SSJU3 (60 Hz) — TRAILER WIRING DIAGRAM
