Output Terminal Familiarization
The “ Output Terminal Panel ” (Figure 9) is provided with the
following:
■ ■ ■ ■ ■ 120/240V output receptacles (3) @ 50 amp
■ ■ ■ ■ ■ Circuit Breakers (3) @ 50 amps, 2-pole
■ ■ ■ ■ ■ 120V GFCI receptacles (2) @ 20 amp
■ ■ ■ ■ ■ GFCI Circuit Breaker (2) @ 20 amps, 1-pole
■ ■ ■ ■ ■ Five (5) Output Terminal Lugs ( U, V, W, O, Ground)
Output Terminal Panel
The Output Terminal Panel (Figure 8) shown below is located
on the right-hand side (left from control panel) of the generator.
Lift up on the cover to gain access to receptacles and terminal
lugs.
NOTE
Terminal legs “O” and “Ground”
are considered
bonded grounds.

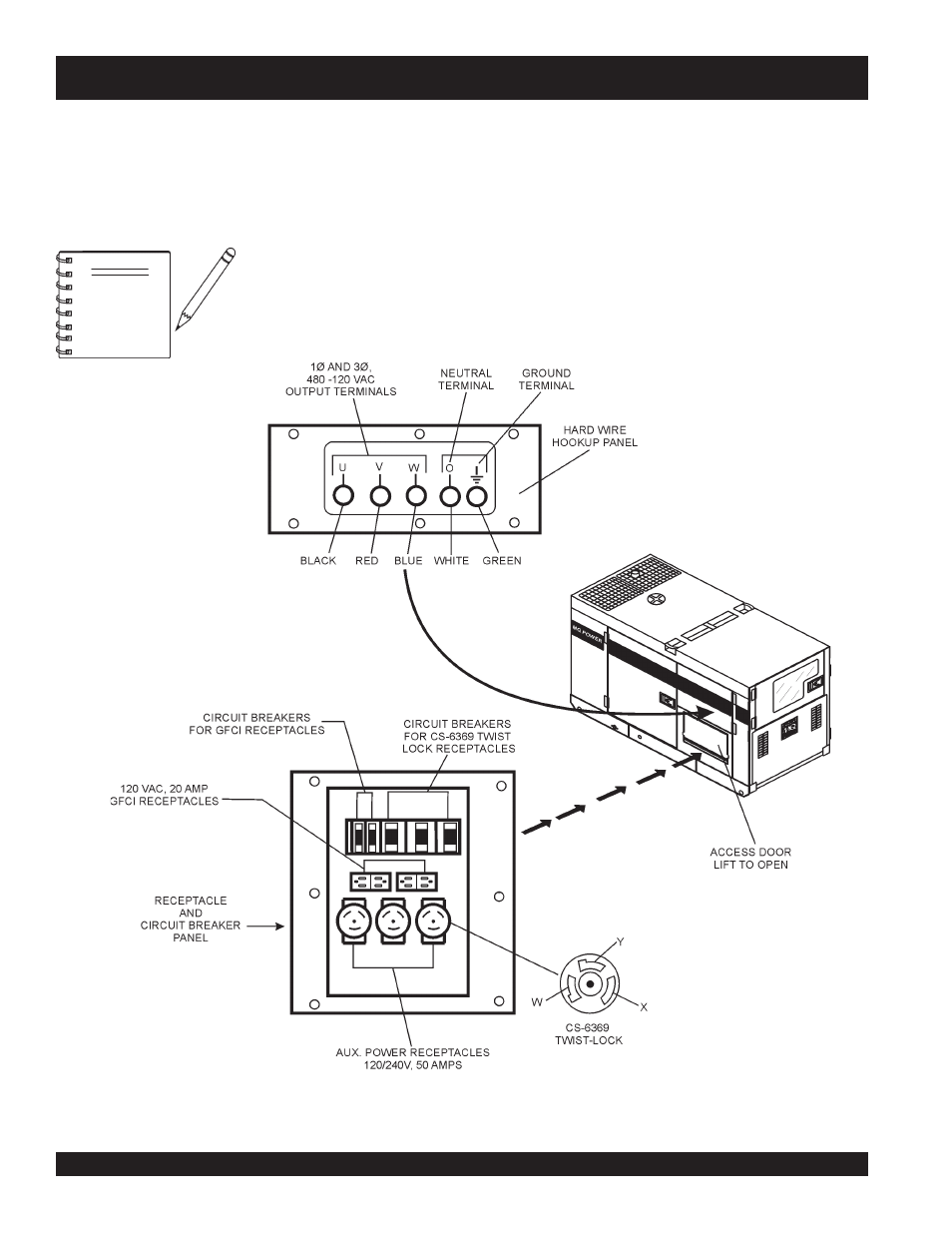

Figure 8. Output Terminal Panel
DCA-70SSJU3 (60 Hz) — OUTPUT TERMINAL PANEL FAMILIARIZATION
