TLG-12SPX — PARTS AND OPERATION MANUAL (STD) — REV. #4 (03/08/05) — PAGE 27
TLG-12SPX — ENGINE OPERATING/OUTPUT TERMINAL PANEL
The definitions below describe the controls and functions of
the TLG-12SPX "
Engine Operating/Output Terminal
Panel” (Figure 7).
1. Idle Control Switch - This switch is used to change
the idle of the engine from low to high (on some
models)
2. Throttle Handle - This handle is used for
initial start up of the engine.

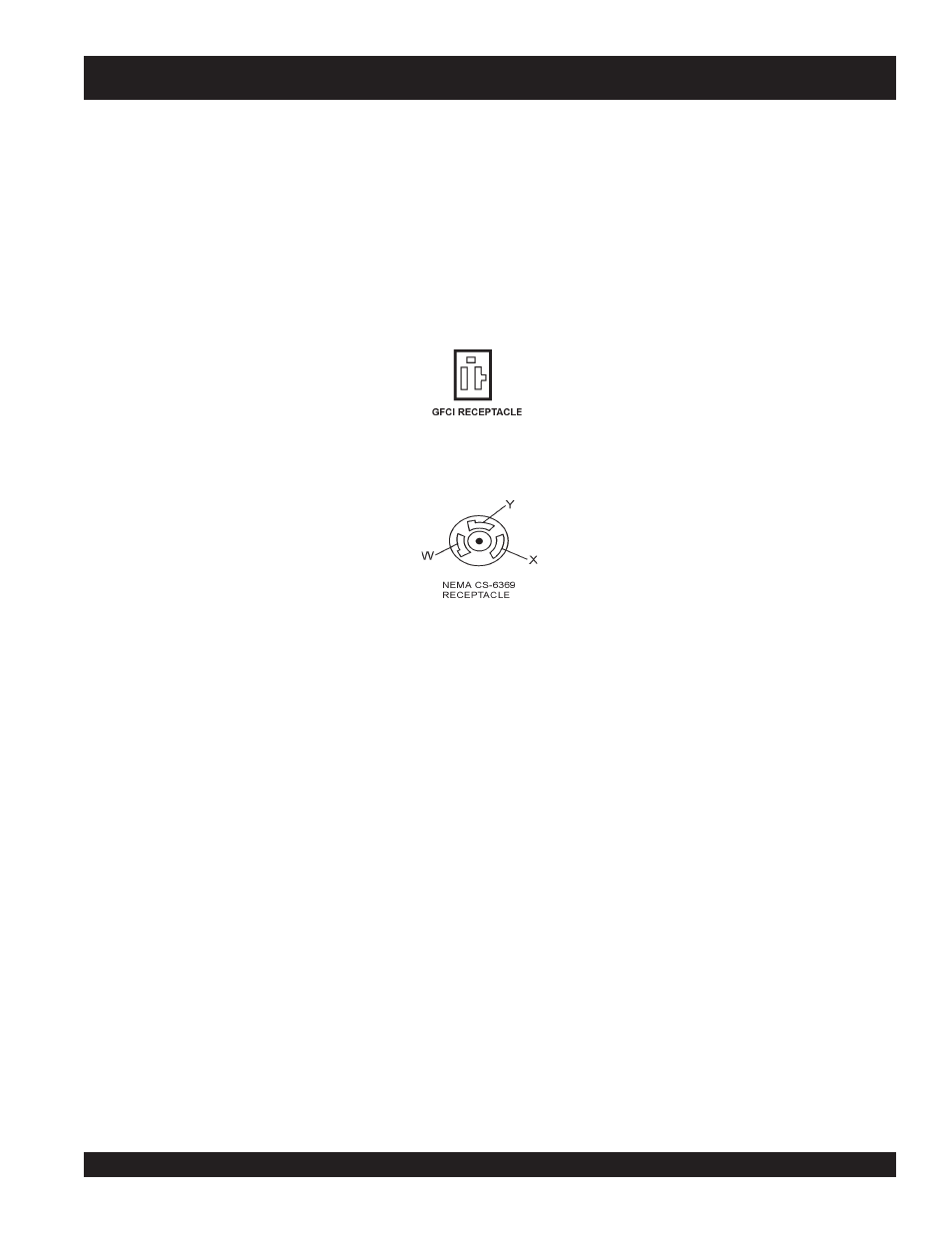

3. GFCI Receptacle - This is a 20A, 120V
parallel slot with a U-ground.
4. NEMA receptacle - These output receptacles are
locking type. Both are 30 amps, one is
120V, the other 240V.
5. NEMA CS-6369 receptacle - This locking
type output receptacle is a 50 amp, 120/
240V.
