PAGE62 — SP7060 PAVEMENT SAW • OPERATION MANUAL — REV. #0 (02/13/09)

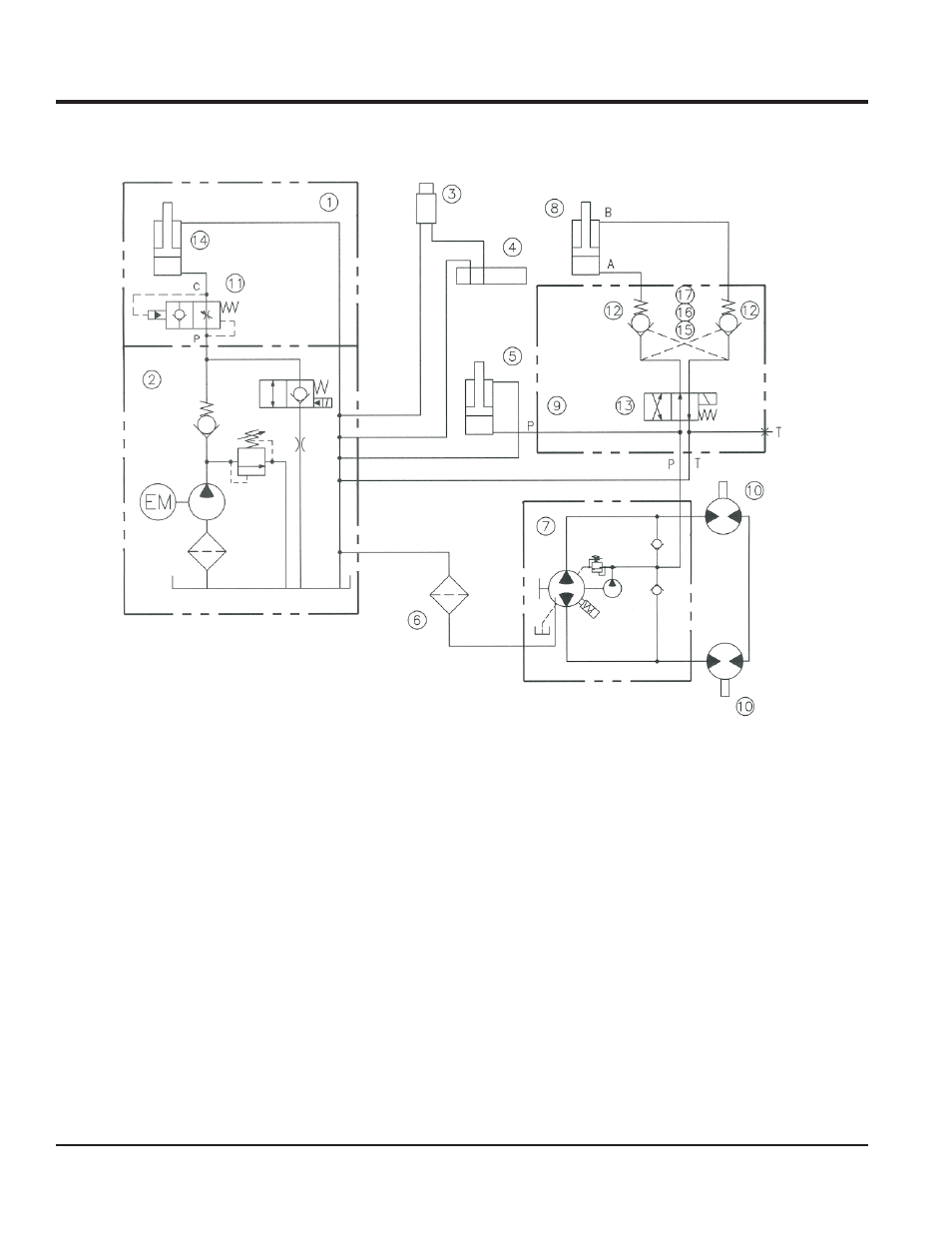

HYDRAULIC SCHEMATIC TO SN AF3700155
HYDRAULIC SCHEMATIC TO SN AF3700155
1. Lift Cylinder Assembly
2. Lift Pump
3. Reservoir
4. Blade Shaft Assembly
5. Brake Cylinder
6. Spin-On Filter
7. Hydrostatic Pump
8. Engine Pivot Cylinder 2.5"
9. Valve Assembly
10. Wheel Motor
11. Velocity Fuse
12. Check Valve (2)
13. Valve 4W2P
14. Lift Cylinder
15. Pilot Piston
16. O-Ring
17. Backup (2)
