SP7060 PAVEMENT SAW • OPERATION MANUAL — REV. #0 (02/13/09) — PAGE 41
MAINTENANCE
Checking Engine Oil
1. Check engine oil level daily before starting the engine.
2. When checking or adding oil, place the machine so
the engine is level.
3. Pull the engine oil dipstick from its holder (Figure 40,
Item 10, Figure 40).
4. Determine if engine oil is low. Oil should be between
the upper and lower limit (add oil) lines.
5. If oil is below the “Add Engine Oil” line, add oil up to
the upper limit on the dipstick. Allow enough time for
any oil to make its way to the oil pan before rechecking.
Changing Engine Oil And Filter
1. Change the engine oil after the first 5 hours of use,
then change every 6 months or 125 hours.
2. Remove the oil filler cap (Figure 40, Item 13), and fill
engine crankcase with recommended type oil as listed in
Table 2. Fill to the upper limit of dipstick.
3. Crankcase capacity with filter replacement is 8 quarts,
(7.57 liters). Refer to Table 10 for recommended viscosity
grade for temperature range.
CAUTION — Do Not Overfill Oil Pan
DO NOT overfill the oil pan with engine oil. Always keep
the engine oil level at the upper limit lines on the dipstick
due to the tilting of the engine during operation.
F
C
TEMPERATURE RANGE EXPECTED BEFORE NEXT OIL CHANGE
-20 0 20
SAE 15W-40
SAE 20W-50
SAE 10W-30, 10W-40
32 40 60 80 100
-30 -20 -10 0 10 20 30 40
SAE 0W-30, 0W-40
SAE 5W-30, 5W-40
Table 10. Recommended Viscosity Grades
Oil Filter (125 Hours)
1. Replace the engine oil filter (Figure 41) every oil change
or 125 hours. Refer to your engine manual for specific
details to perform this operation.
2. Be sure to coat the seal of the new oil filter with clean
engine oil.
3. Spin on new filter until seal make contact with surface,
then tighten additional 2/3 to 3/4 turn.

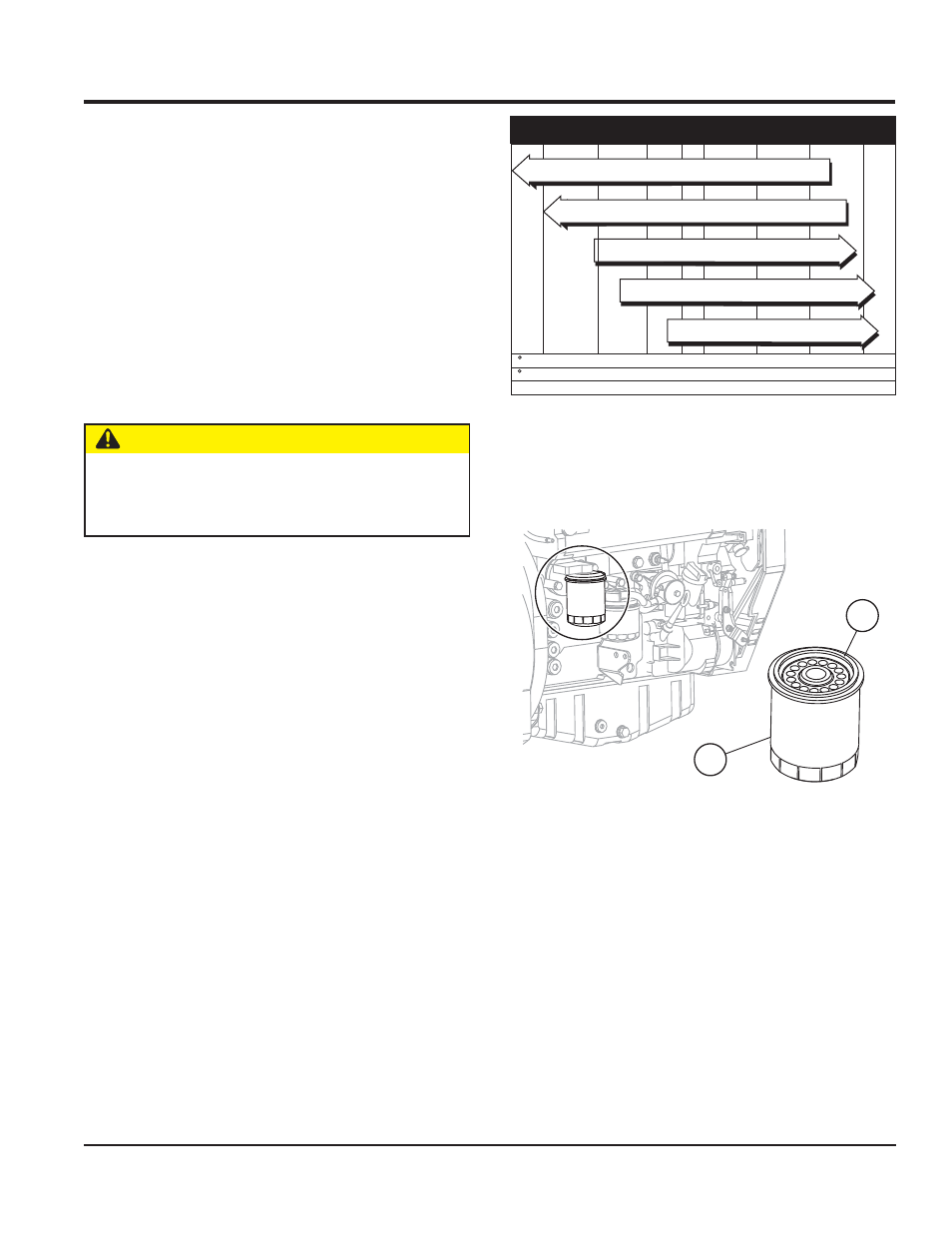

Figure 41. Oil Filter
1
2
1. Engine Oil Filter
2. Filter Seal
