PAGE54 — SP7060 PAVEMENT SAW • OPERATION MANUAL — REV. #0 (02/13/09)
MAINTENANCE
DRAINING THE HYDRAULIC SYSTEM
1. Place an oil pan beneath the Blade Shaft Housing
(Figure 67, item 1).
2. Remove the drain plug from the bottom of the blade
shaft housing (item 3)
3. Collect and dispose of the used oil (and filter) in
accordance with ordinances and regulations of your
area.
4. Remove used oil filter.
5. After oil is drained, reinstall drain plug.
6. Pre-fill and install a new oil filter.

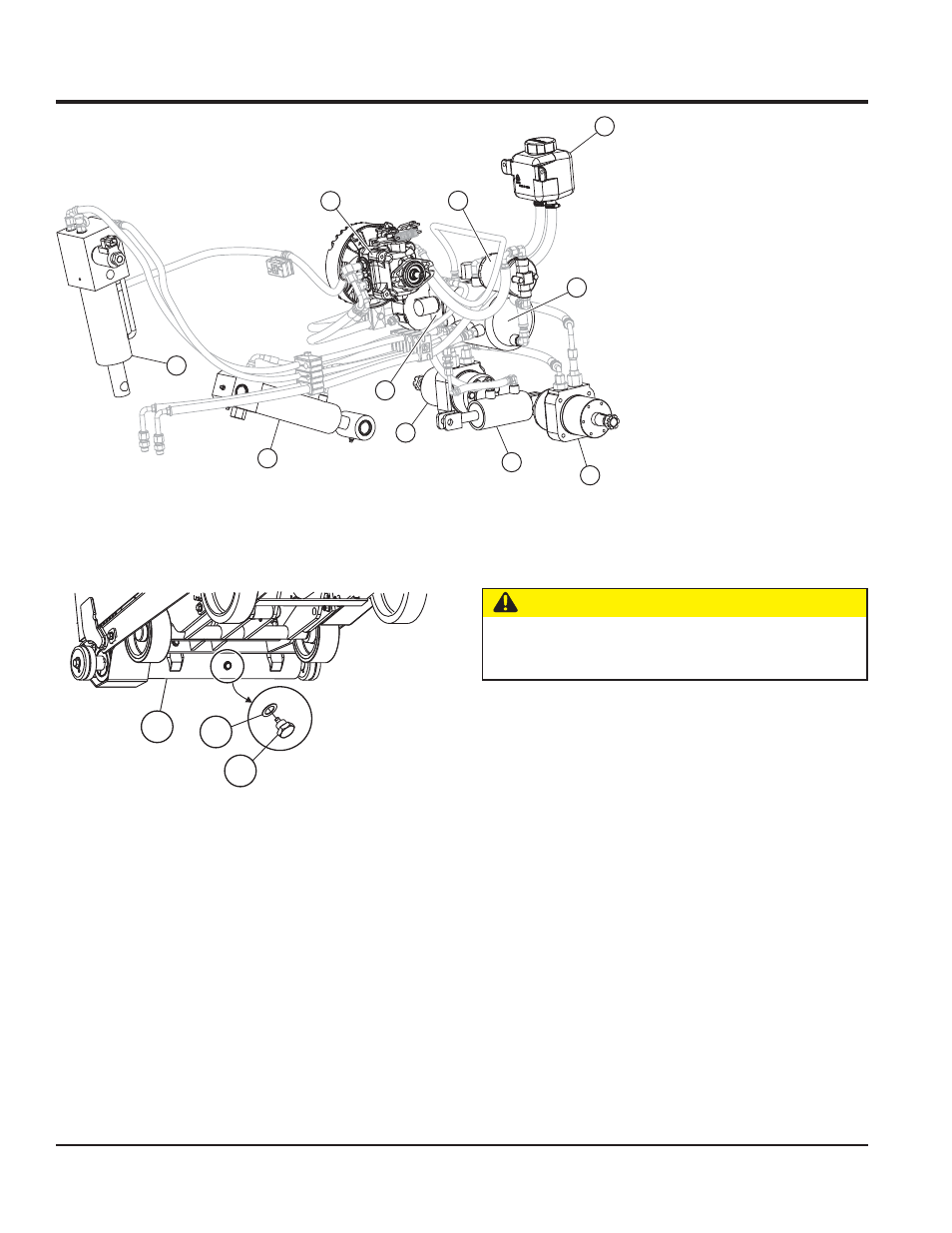

Figure 66. Hydraulic System
Figure 67. Hydraulic System Drains
1
2
3
CAUTION — Pre-fill Filter
To prevent hydraulic pump damage, pre-fill the filter with
oil prior to installing it.
3
8
5
7
2
6
9
4
4
1
1. Hydraulic Reservoir
2. Filter
3. Pump
4. Wheel Motor
5. Engine Pivot Cylinder
6. Engine Tilt Cylinder
7. Motor
8. Pump Body
9. Lift Cylinder
7. Add oil to the system reservoir.
8. The reservoir will need to be filled several times.
9. Run the engine for 5-10 minutes to cycle the oil
throughout the system.
10. Add oil as required.
11. Repeat process until oil level is stable after running
engine.
