SP7060 PAVEMENT SAW • OPERATION MANUAL — REV. #0 (02/13/09) — PAGE 21
COMPONENTS

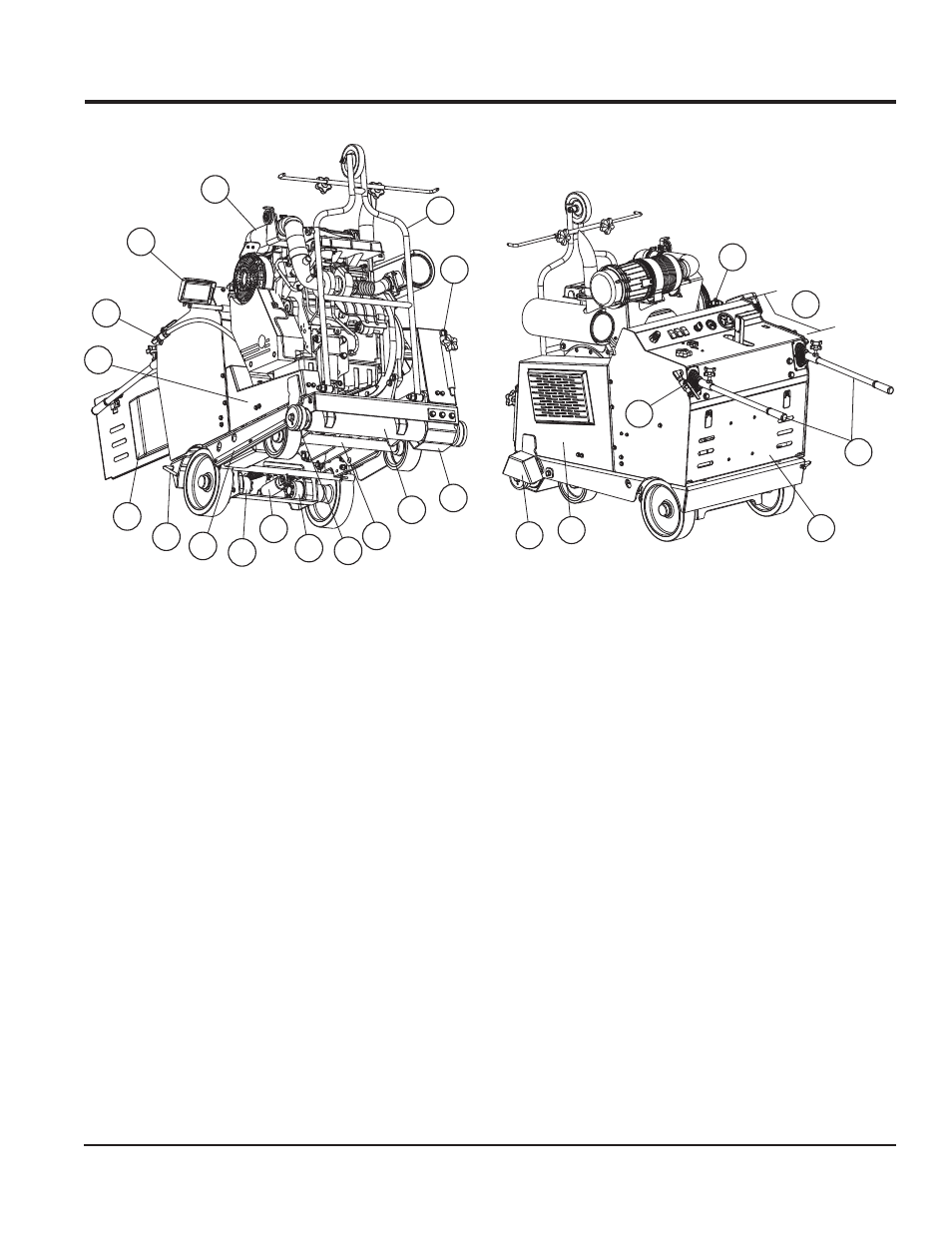

Figure 5. Components
1. Front Pointer Assembly
2. Blade Wrench
3. Blade Shaft Pulley Guard
4. Blade Shaft Assembly
5. Blade Flange
6. Front Axle Assembly
7. Left Wheel Motor
8. Brake Cylinder
9. Right Wheel Motor
10. Engine Guard
11. Rear Pointer
12. Documentation Box
14
13
10
23
11
12
8
7
9
15
2
1
5
6
4
3
20
21
22 19
18
17
16
13. Rightside Water On/Off Control Valve
14. Light Assembly
15. Engine Assembly
16. Engine Fuel Filler Cap
17. Control and Indicator Panel
18. Stay-Level Handles (SLH)
19. Rear Access Panel
20. Flange Guard
21. Leftside Water Metering Valve
22. Belt Guard
23. Slurry Strip
