MAINTENANCE
PTO DRIVE MAINTENANCE
Disassembly of the PTO drive and replacement of the PTO
drive sheave/bearing assembly requires the PTO bearing
puller, p/n 18610. The sheave/bearing assembly is not
serviceable and must be replaced as a complete unit.
Reference Figure 61 for components.
1. Engine Adapter Plate
2. Belt Shoe
3. Drivebelt Pulley
4. Drivebelts
5. Blade shaft Pulley
6. Idler Arm Tensioner
7. Idler Pulley
8 Idler Arm Belt
9. Pump Drive Pulley

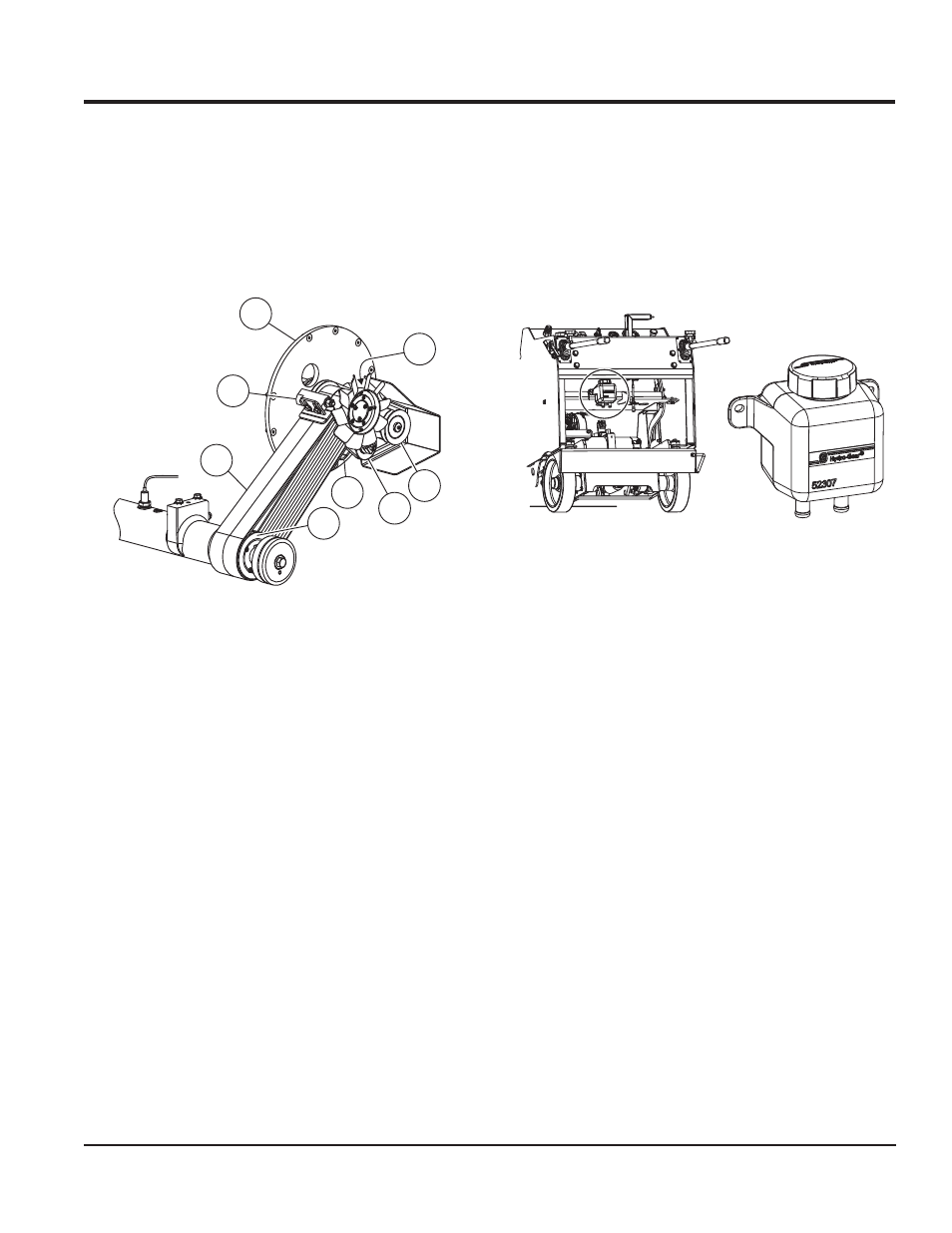

Figure 61. PTO Drive Assembly
7
4
1
9
2
2
6
5
Figure 62. Hydraulic Oil Reservoir
RAISE-LOWER SYSTEM
The saw uses a 12-volt hydraulic pump and hydraulic
cylinder to power the raise-lower system.
1. Check hydraulic oil level daily.
2. When checking or adding hydraulic oil, place the
machine so the saw frame is level to get an accurate
reading.
3. Hydraulic oil should be 1/2" to 1" in the oil reserve
when cold.
4. If hydraulic oil level is low, add oil to 1/2" to 1".
5. Use 15W-40 premium grade engine oil.
