BLADE GUARDS
Installing a Blade Guard
Blade Guards with Standard Water Systems:
1. Slide the blade guard straight downward to engage the
tapered mounting clip (Figure 16).
2. Connect the water delivery hose to the blade guard
(Figure 14).
3. Ensure that the hose ends maintain a 45 o angle and
maintain a light contact with the surface of the blade.
4. Ensure the front hinged section of the blade guard is fully
closed before use.

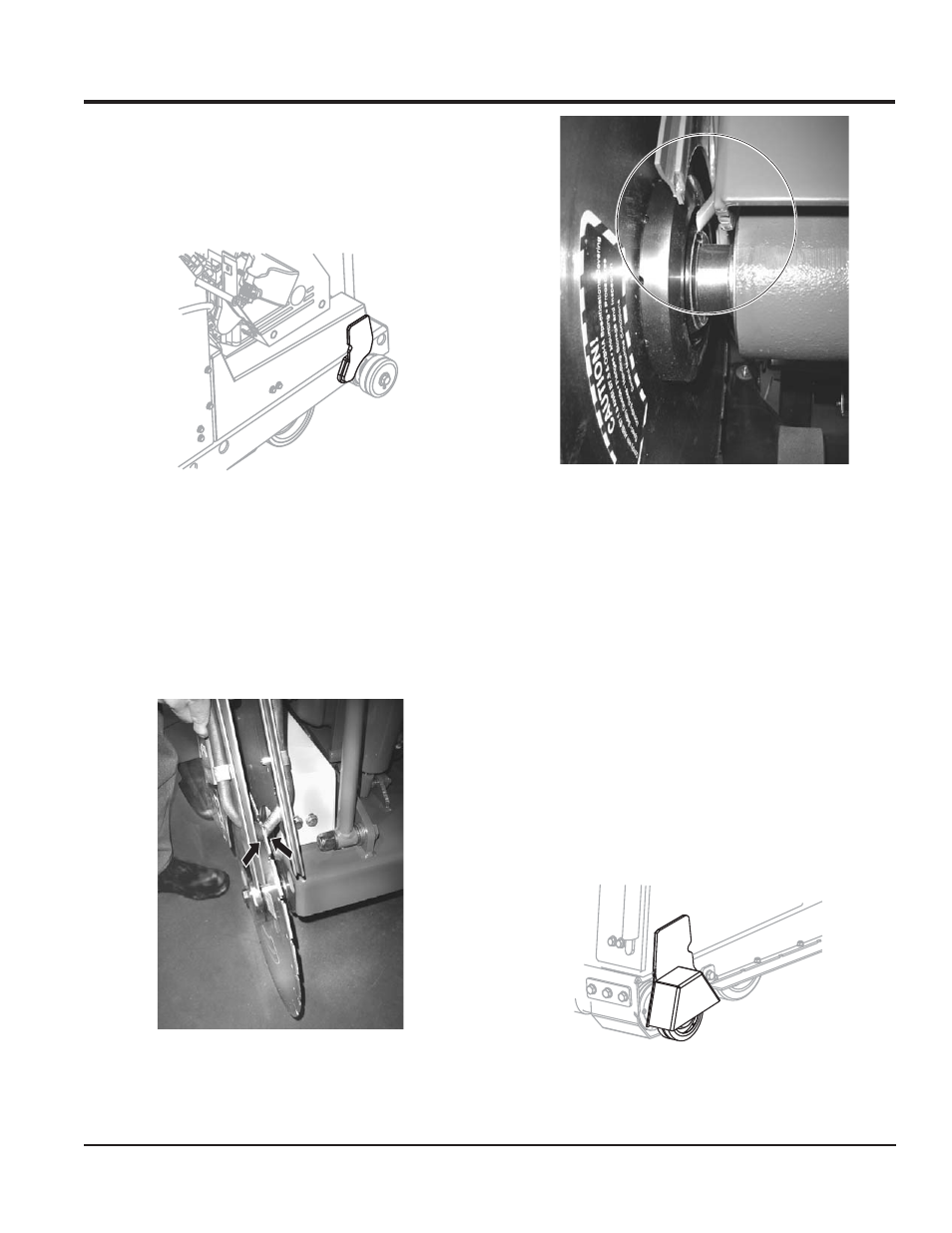

Figure 16. Tapered Mounting Clip
Figure 17. Water Hose Detail
Figure 18. Water Tube Detail (Inner side)
Blade Guards with Waterjet Water Systems:
1. Slide the blade guard straight downward to engage the
tapered mounting clip (Figure 16).
2. Ensure that the water delivery tubes are pointed toward the
water distribution grooves in the blade flanges (Figure 20).
3. Ensure the front hinged section of the blade guard is fully
closed before use.
INSTALLING THE FLANGE GUARD
The flange guard protects the blade flange when not in use.
1. Slide the flange guard onto the guard mounting tab on the
frame (Figure 19).
2. Verify that the blade flange not in use is secured to the
blade shaft by tightening the mounting bolt.
Figure 19. Flange Guard Installed
