MB25hd reBar BeNder • operaTioN aNd parTs MaNual — rev. #0 (04/05/10) — page 11
daNger
During operation of this rebar bender,
there exists the possibility of electrocu-
tion, electrical shock or burn, which
can cause severe bodily harm or even
DEath!
To avoid these hazards:
Never use damaged or worn cables when plugging the
rebar bender into an AC power receptacle.
Never grab or touch a live power
cord with wet hands.
Never stand in water and touch
a live power cord.
usiNg The FooT sWiTCh
Instead of the Start Switch, the Foot Switch can be used
to start the bending process. See Figure 5.
1. Insert the plug of the foot switch to the Foot Switch
Connector on the front panel of the rebar bender.
2. Press the pedal on the foot switch to start bending.
3. When the bending angle is achieved, the roller will
automatically spring back to the start position.
eMergeNCY sTop sWiTCh
1. To stop the rebar bender immediately in case anything
goes wrong in the bending process, press the
Emergency Stop Button (Figure 6). The roller on the
rebar bender will immediately stop and return to the
start position.
OperatiOn
PLUG TO CONNECTOR
ON FRONT PANEL
PUSH PEDAL
TO START BENDING
It is not necessary to press the pedal
continuously while bending. Once the pedal
is pressed bending will start and pedal can
be released.
POWER
CORD
(POWER ON)
WET
HANDS
WarNiNg
The roller goes back to start position very quickly after
bending because of the spring mechanism. Keep away
from the machine until the roller is completely back in
the start position to prevent any injury.

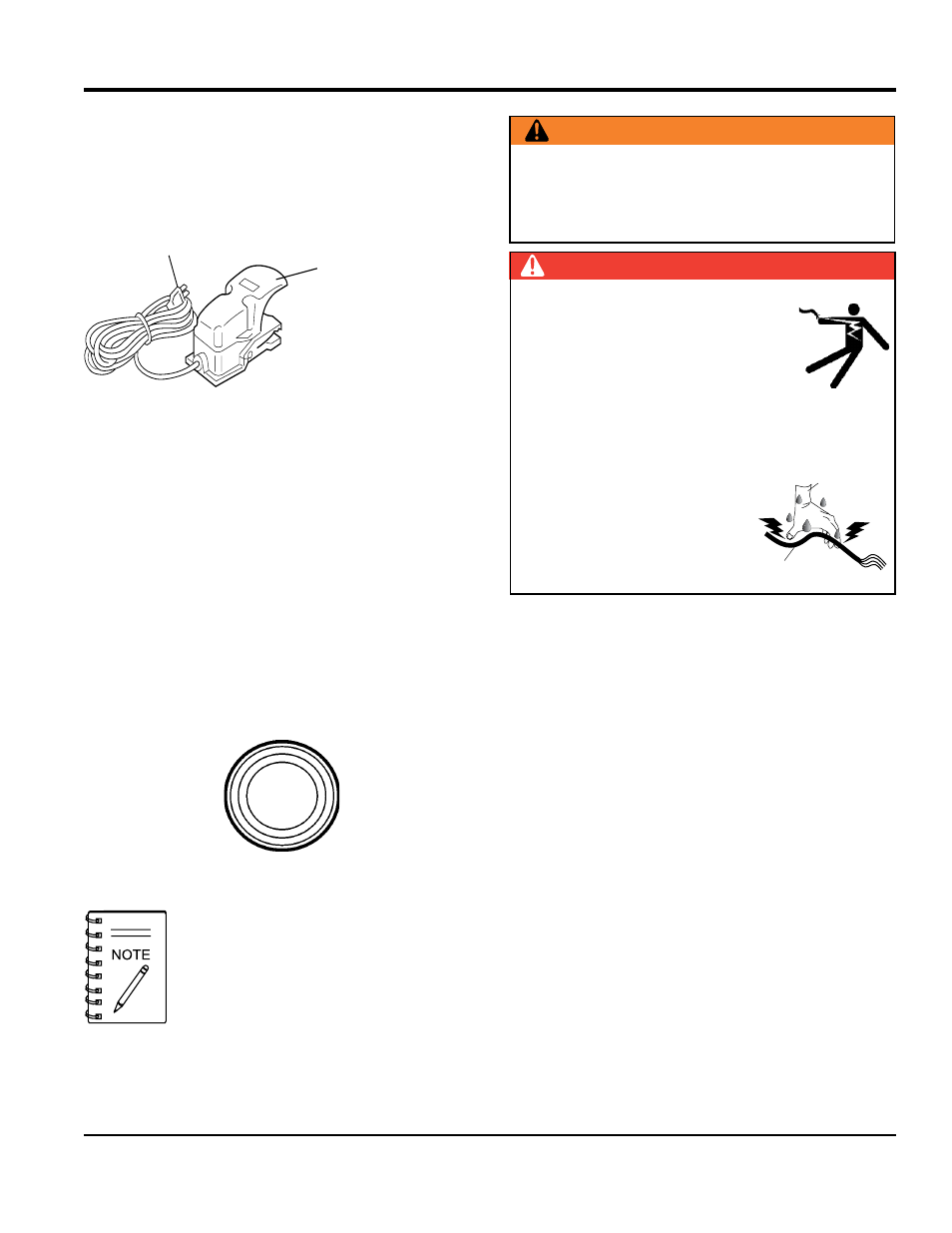

Figure 5. Starting with the Foot Switch
Figure 6. Emergency Stop Switch
