HPHA36C5H WALK-BEHIND TROWEL — OPERATION AND PARTS MANUAL — REV. #3 (07/06/10) — PAGE 29
Trowel Arm Adjustment Tool
If blades show uneven wear patterns or some tend to wear out
faster than others, the trowel arms may need to be adjusted.
Whiteman makes a special tool (Figure 37) that will adjust all of
the trowel arms consistently. The Trowel Arm Fixture P/N is 1817.
Grinding Attachments
Available grinding attachments are used for grinding surface
imperfections or joints. These attachments allow greater utilization
of your trowel. (Figure 35) illustrates a typical grinding disk
assembly, complete with hub and stone mounting plate.

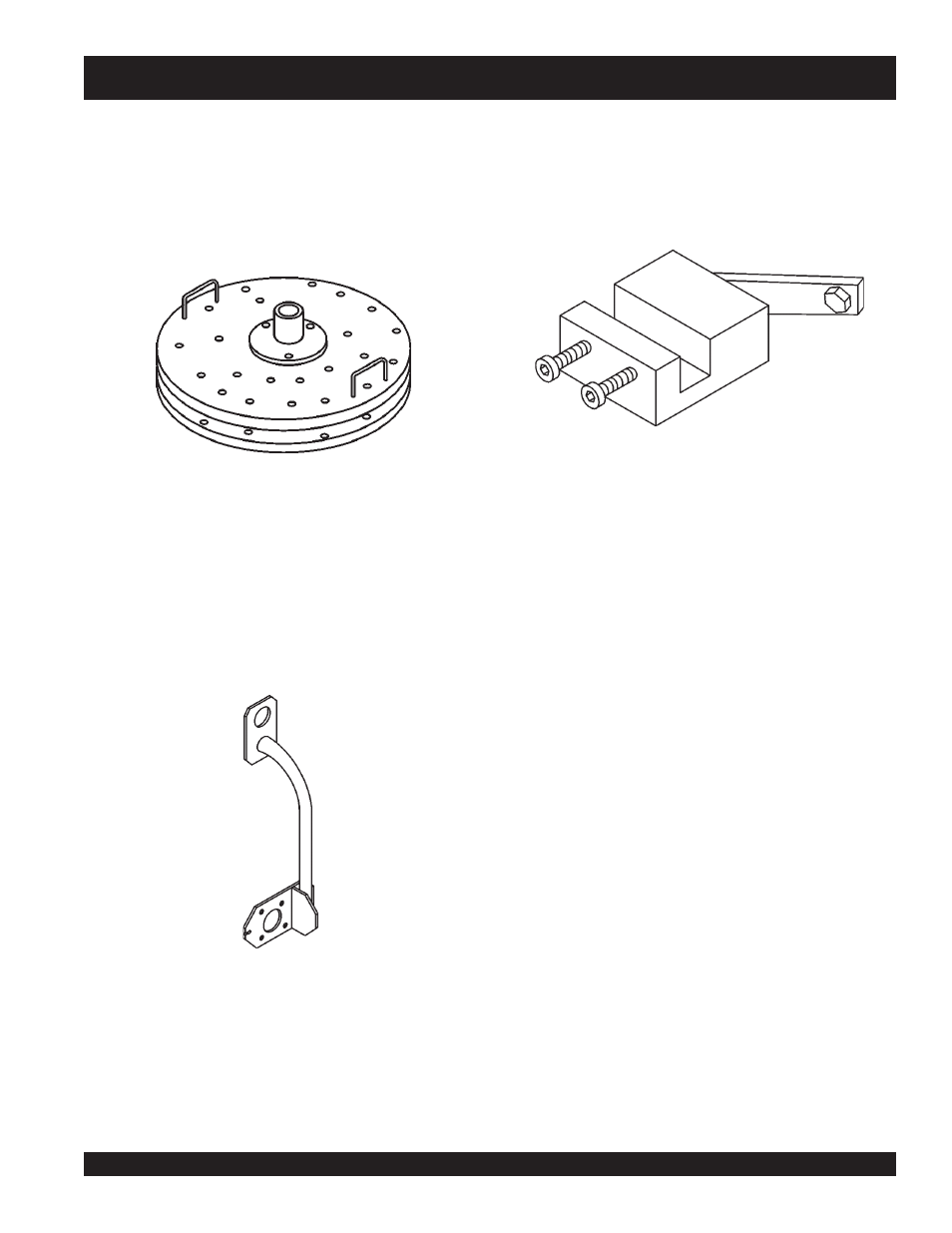

Figure 37. Trowel Arm Adjustment Fixture
HPHA36C5H TROWEL — OPTIONS
Lifting Bail
There is a heavy duty, center balance type lifting bail (Figure 36)
made specifically for your trowel. These bails are ideal for lifting
and transporting your trowel. They are designed to lift the finisher
and balance it on it’s center of gravity, providing great stability
while lifting. This option is not available on electric trowel models.
Figure 36. Lifting Bail
Figure 35. Grinding Disk
