HHXg5 RIDe-ON TROWeL • OpeRaTION maNuaL — Rev. #1 (10/25/10) — page 17
cOntrOlS anD inDicatOrS

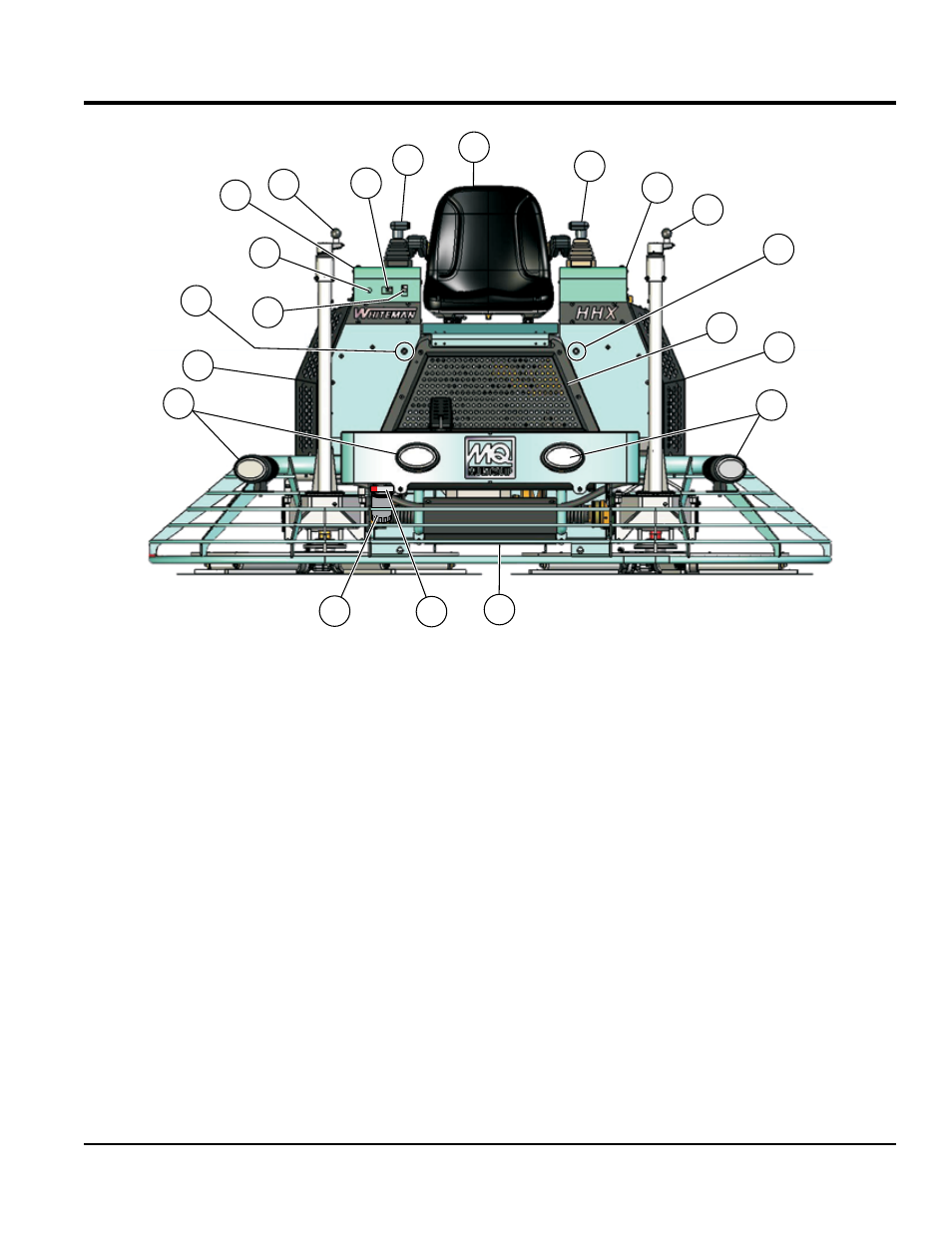

Figure 2. HHXG5 Controls and Indicators (Front)
9
9
8
5
7
6
2
4
4
3
14
15
16
1
13
12
11
35
35
10
1.
Seat — Place for operator to sit. Engine will not start
unless operator is seated. Seat is adjustable, fore and
aft for operator comfort.
2.
Steering Control Joystick (right side) — Allows the
unit to move in either a forward, reverse left or right
direction. See page 24 for additional Information.
3.
Front guard — Remove this Guard Cover to access
left side of engine and other internal components.
4.
pitch Control — Adjusts the blade pitch separately
for each side of the trowel.
5.
Hour meter — Indicates number of hours machine has
been in use or hours engine was run.
6.
Steering Control Joystick (left side) — Allows the
unit to move in either a forward, reverse left or right
direction. See Page 24 for additional Information.
7.
Light Switch — When activated, turns on four halogen
lights. Lights offer better visibility when working
indoors.
8.
Ignition Switch — With key inserted turn clockwise
to start engine.
9.
Lights — 12V Halogen, 4 fore and 2 aft.
10.
Right Side guard — Remove to access Radiator and
to allow Right Clamshell to open for Service.
11.
Left Side guard — Remove to access Battery and to
allow Left Clamshell to open for Service.
12.
Left Side Clamshell — Open to allow access for
service and maintenance.
13.
Right Side Clamshell — Open to allow access for
service and maintenance.
14.
By-pass Indicator — Sight glass located in-line and
just above the Hydraulic By-Pass Filter. System in a
By-Pass condition when indicator in the red area.
15.
Hydraulic By-pass Filter — Filters contaminants from
hydraulic system during a By-Pass condition.
16.
magnetic Drain plug — Remove to drain hydraulic oil
from hydraulic system.
